Removal Procedure

    Fig 1: Rear Seat Back Assembly
    GM867327Courtesy of GENERAL MOTORS CORP.
  1. Lower the right side seat back, then remove the left side rear seat back assembly. Refer to Rear Split Folding Seat Back Replacement .
  2. Place the rear seat back assembly on a clean work area.
  3. Using a small flat-blade tool, carefully remove the end cap fasteners and remove the end cap.

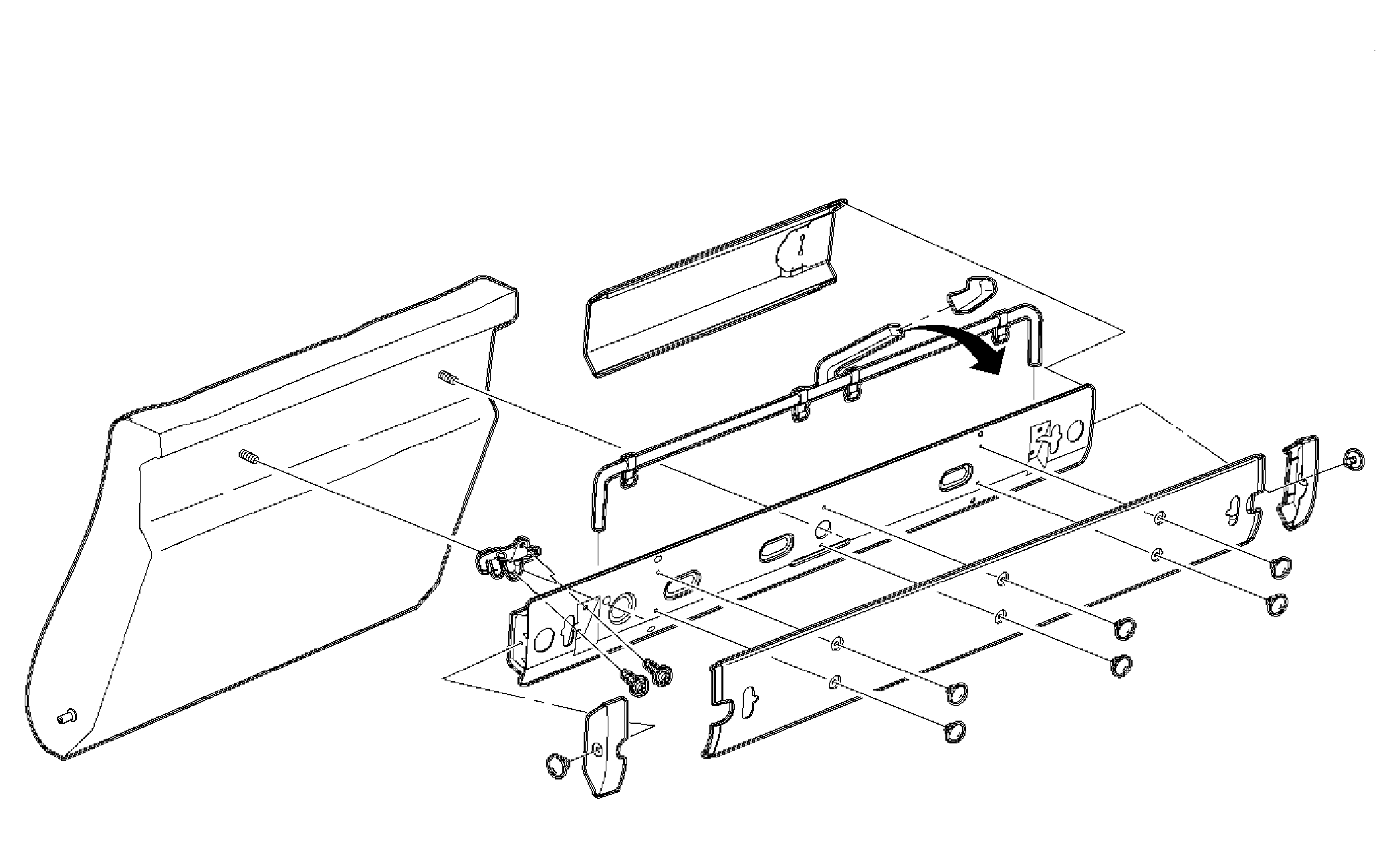

    4. Fig 2: Seat Back Latch Beam
    GM867279Courtesy of GENERAL MOTORS CORP.
  4. Using a small flat-blade tool, carefully remove the seat back beam cover fasteners and remove the cover.
  5. Remove the seat back beam cover fasteners and remove the seat back beam cover.
  6. Remove the seat back beam fasteners and remove the beam assembly.
  7. Remove the passenger side seat back beam front cover by prying at the cover edge to disengage the cover from the beam.
