Removal Procedure

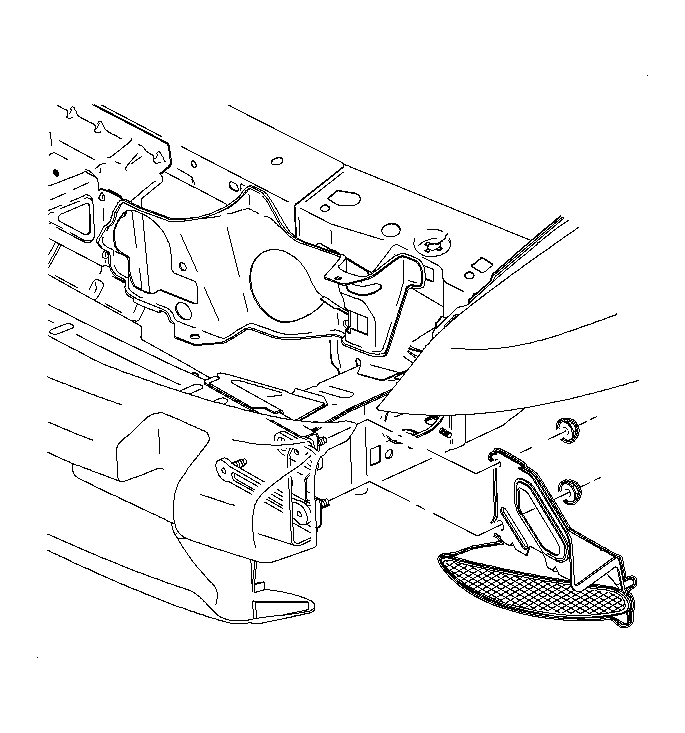

    Fig 1: Fog Lamp (Sedan/Wagon)
    GM865013Courtesy of GENERAL MOTORS CORP.
  1. Remove the headlamp housing. Refer to Headlamp Assembly or Headlamp Bulb Replacement (Sedan/Wagon)  or Headlamp Assembly or Headlamp Bulb Replacement (Coupe)  in Lighting Systems.
  2. Remove the nuts attaching the fog lamp bracket to the impact bar.
  3. Remove the fog lamp assembly down through the bottom of the front fascia.
