Daytime Running Lamp Control #1 Circuit Low

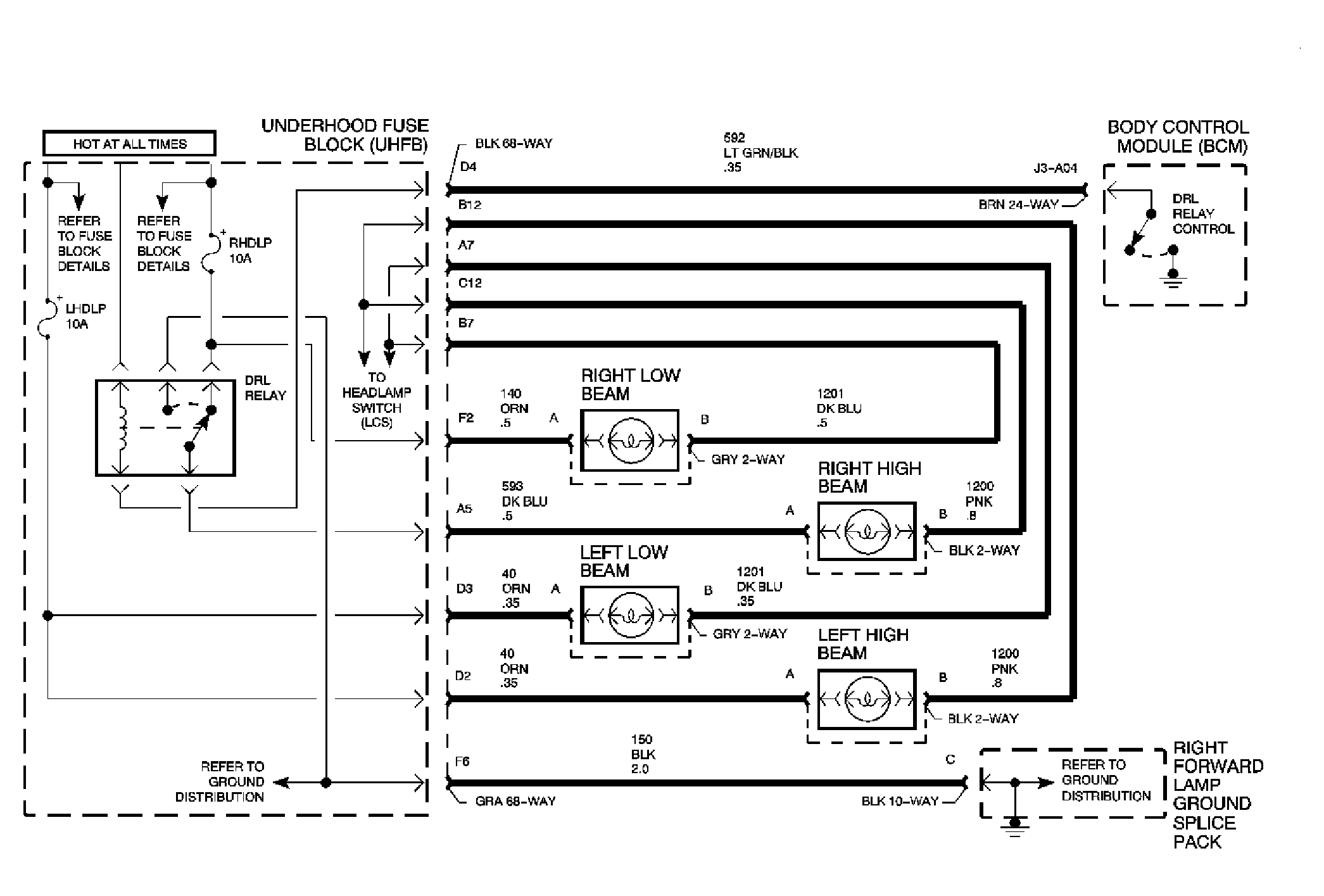

Fig 1: DRL Circuit

GM864164

Courtesy of GENERAL MOTORS CORP.
