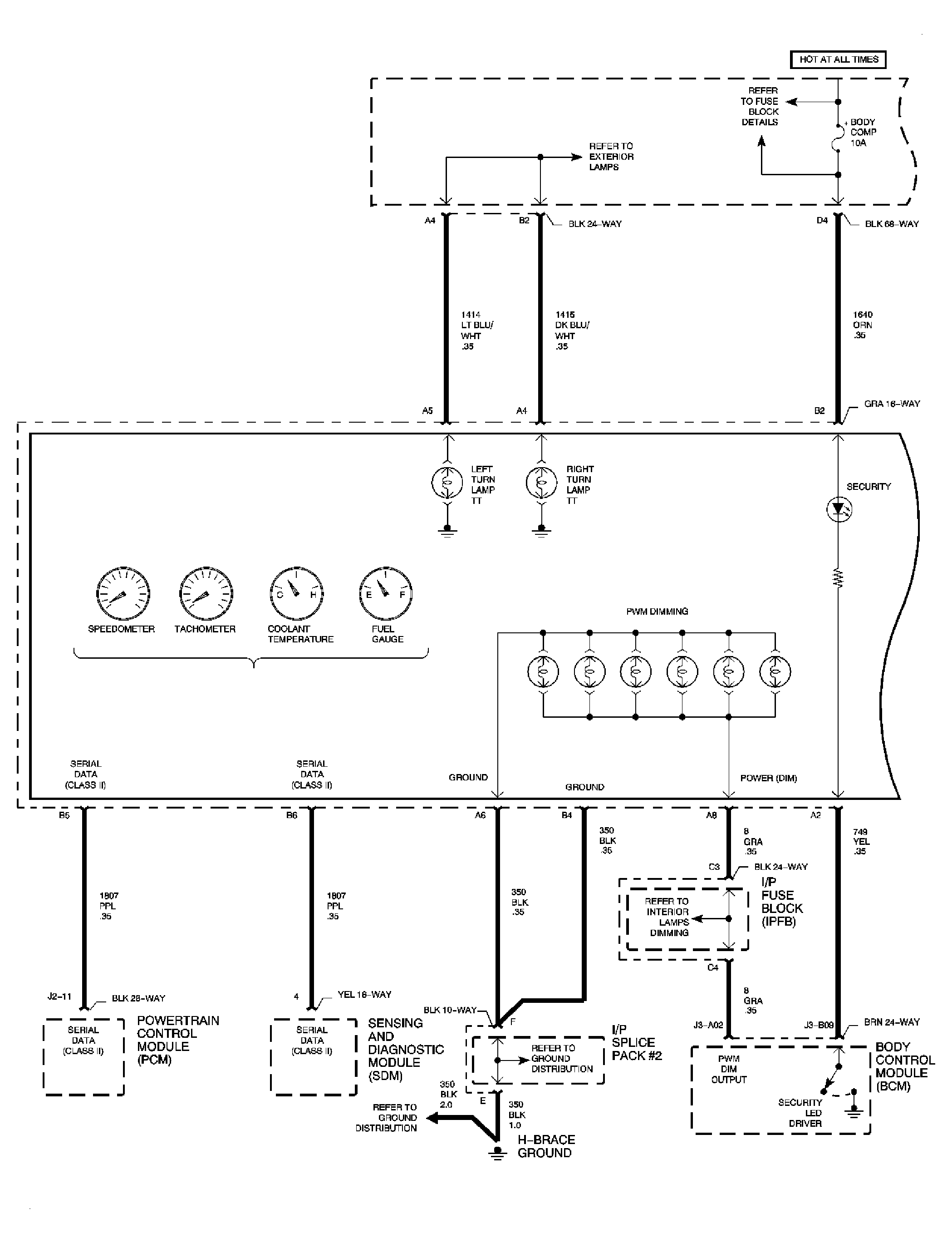

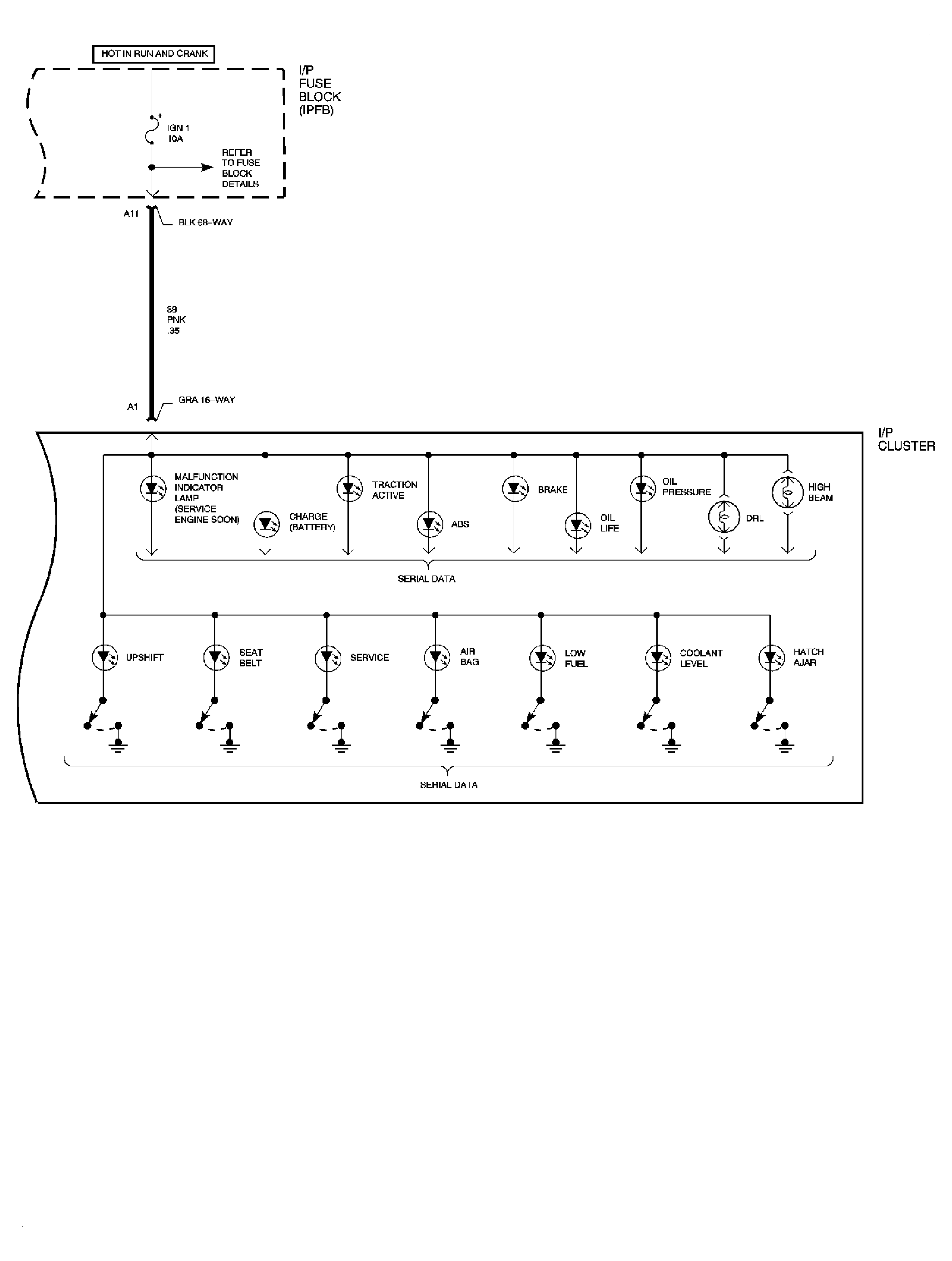

Home >> Saturn >> 2002 >> SC1 Automatic >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Interior/Exterior Trim >> Instrument Panel, Gages, And Console -- "S" Series >> Schematic and Routing Diagrams >> Instrument Cluster Schematics
