Removal Procedure

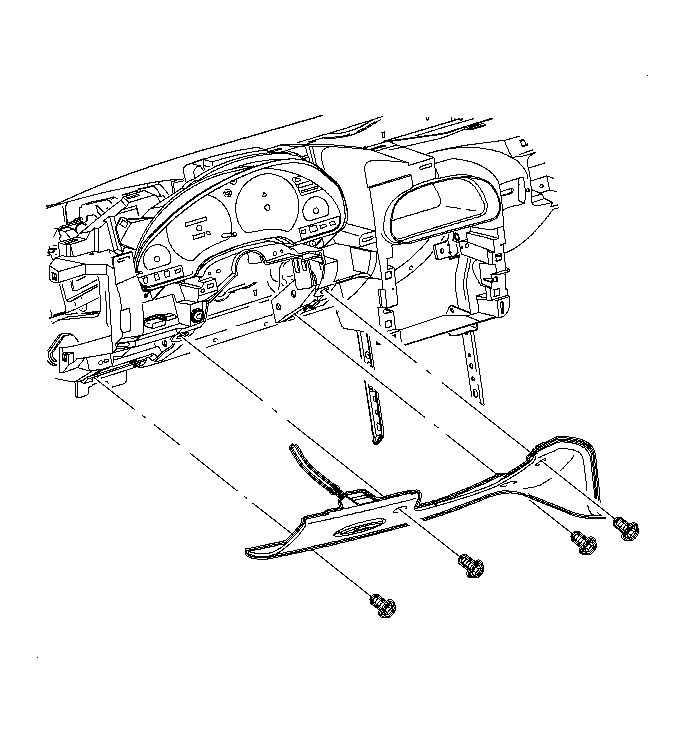

    Fig 1: Steering Column Opening Filler
    GM866621Courtesy of GENERAL MOTORS CORP.
  1. Remove the steering column filler panel fasteners.
    2. Fig 2: Removing Hood Release Cable From Lever
    GM866299Courtesy of GENERAL MOTORS CORP.
  2. Remove the hood release cable from the lever by releasing the cable housing, then rotating the cable downward to the cutout.
  3. Remove the steering column filler panel.
