Removal Procedure

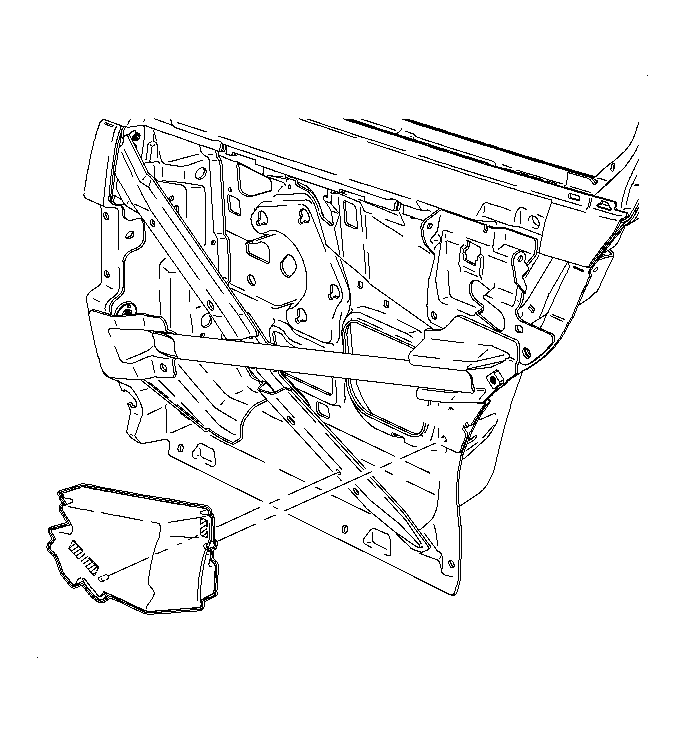

    Fig 1: Outer Rear Energy Absorber Pad
    GM869125Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear door outer panel. Refer to Front Side Door Outer Panel (Coupe)  or Front Side Door Outer Panel (Sedan/Wagon) .
  2. Remove the door insulator. Refer to Rear Side Door Insulator (Coupe) .
    3. CAUTION: If energy absorber is removed or damaged it must be replaced with a new part. If omitted, the vehicle will not meet federal motor vehicle safety standards (FMVSS), subjecting the retailer to possible civil penalties for making the vehicle inoperative to the FMVSS, and increasing the risk of injury to the vehicle occupants.
  3. Remove the energy absorber from the door structure.
