Diagnostic Aids

Inspect the wiring harness for damage. Check for broken or chafed insulation.
If a fault is suspected to be intermittent, wiggling the harness wiring may help in locating the fault.

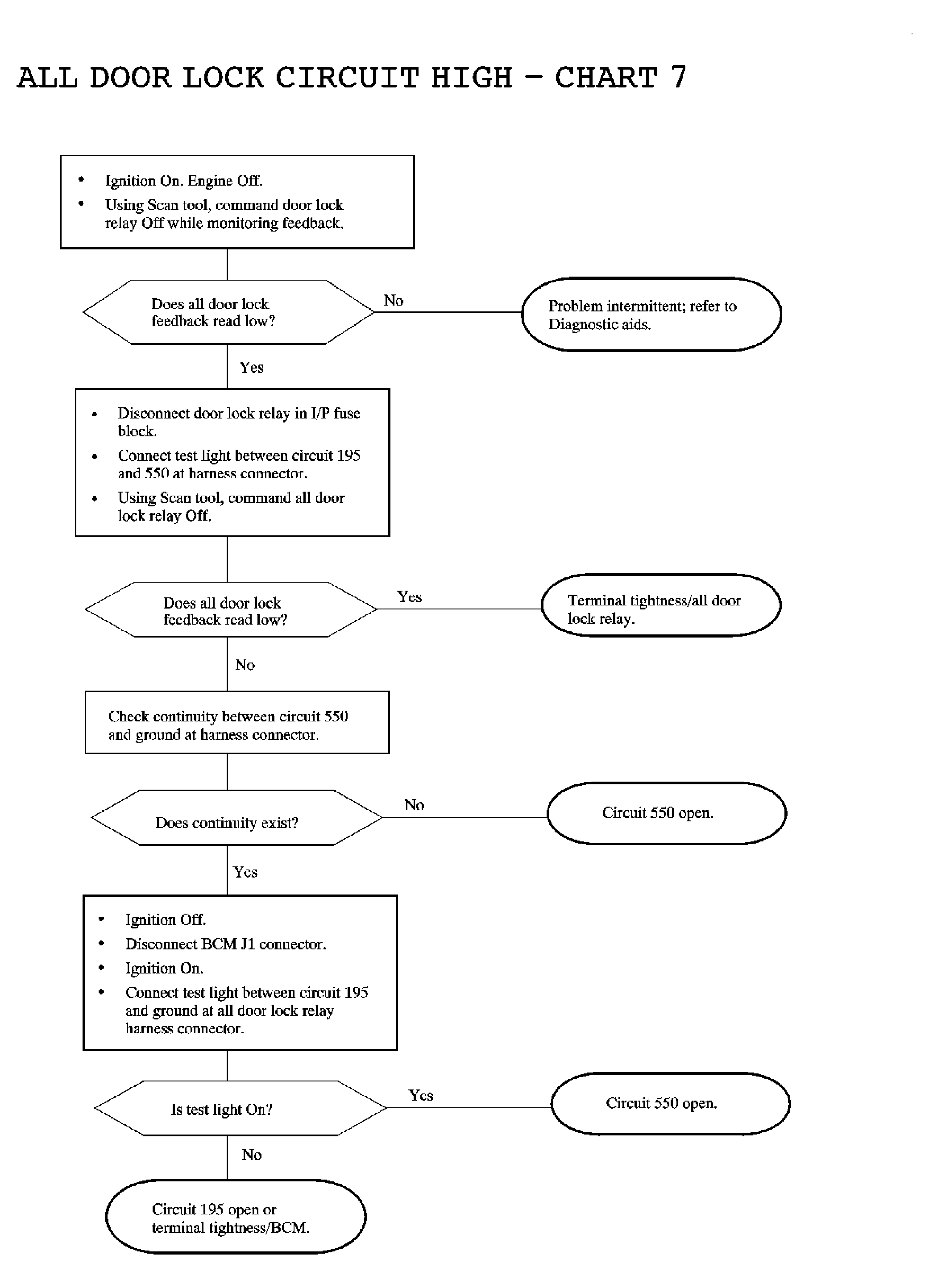

Fig 1: All Door Lock Circuit High Chart 7

Courtesy of GENERAL MOTORS CORP.
