Glove Compartment Lamp Assembly: Removal

  1. Open glove compartment door.
  2. Remove glove compartment assembly by pulling on lamp plunger.
  3. Disconnect glove compartment lamp wiring harness from glove compartment lamp.

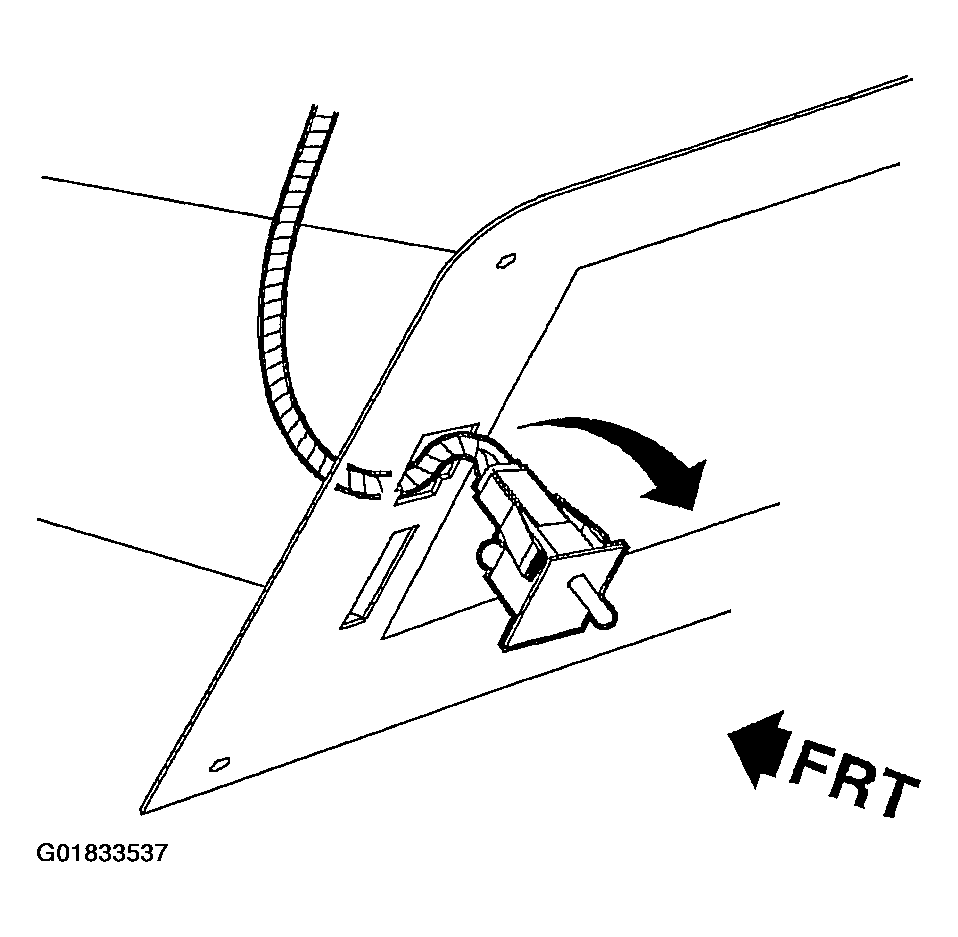

Fig 1: Disconnecting Glove Compartment Lamp Wiring Harness From Glove Compartment Lamp
G01833537Courtesy of GENERAL MOTORS CORP.
