Glove Compartment Door Cover: Removal

  1. Open glove compartment door.
  2. Remove lower glove compartment door fasteners and remove glove compartment door.

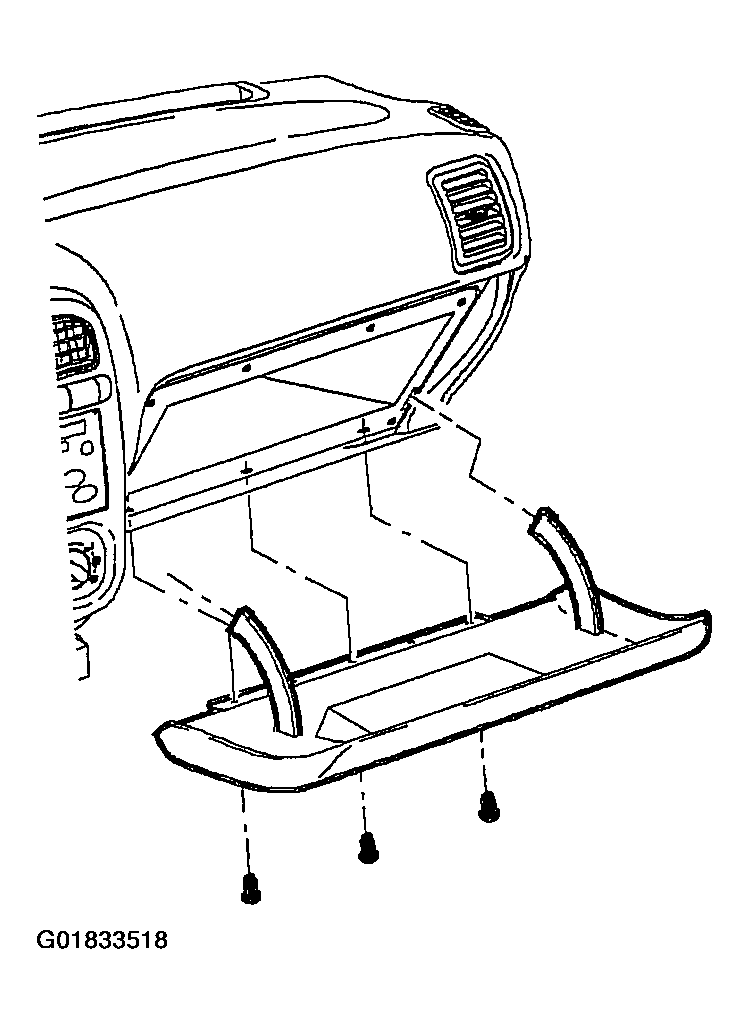

    3. Fig 1: Removing Glove Compartment Door
    G01833518Courtesy of GENERAL MOTORS CORP.
  3. Remove glove compartment door outer fasteners and disassemble inner to outer panel.

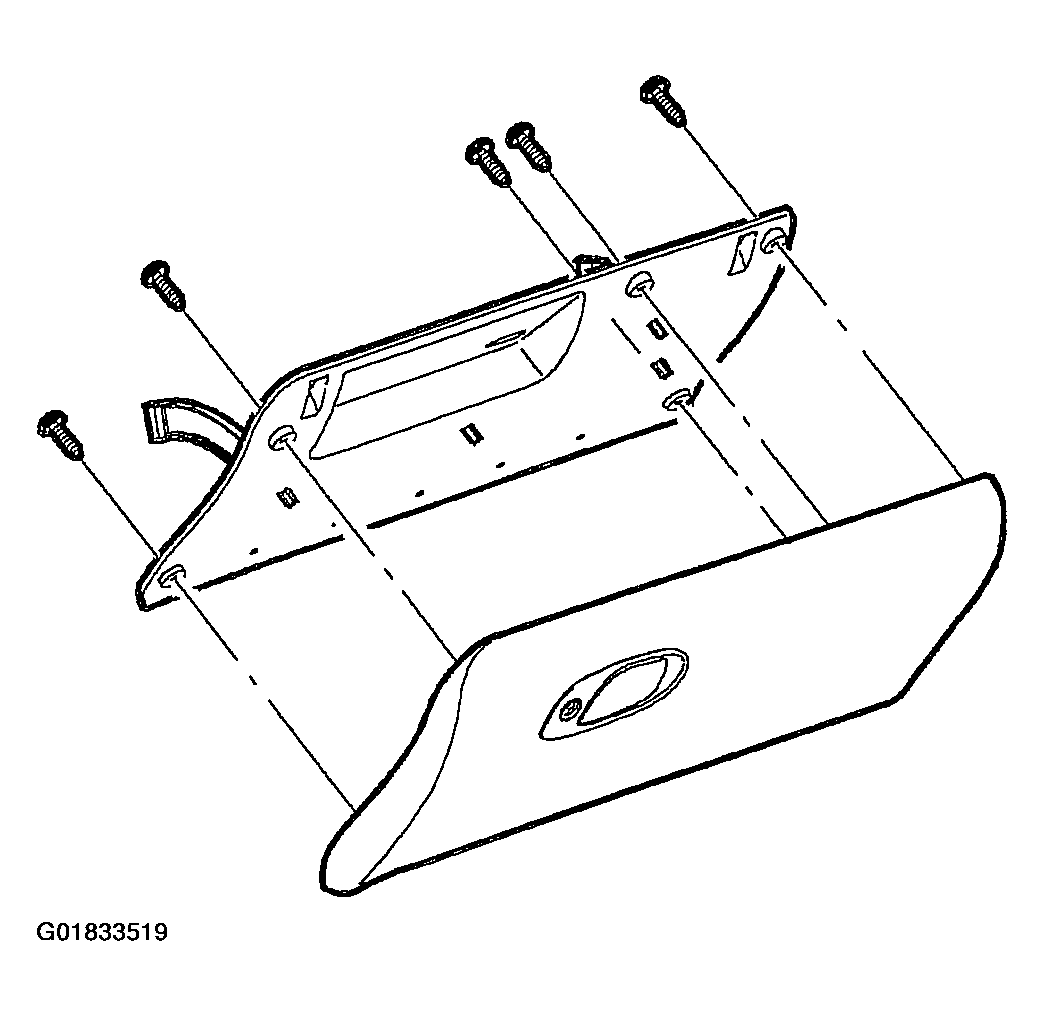

    4. Fig 2: Disassembling Inner To Outer Panel
    G01833519Courtesy of GENERAL MOTORS CORP.
  4. Disconnect latch to handle connector rod and remove latch assembly.

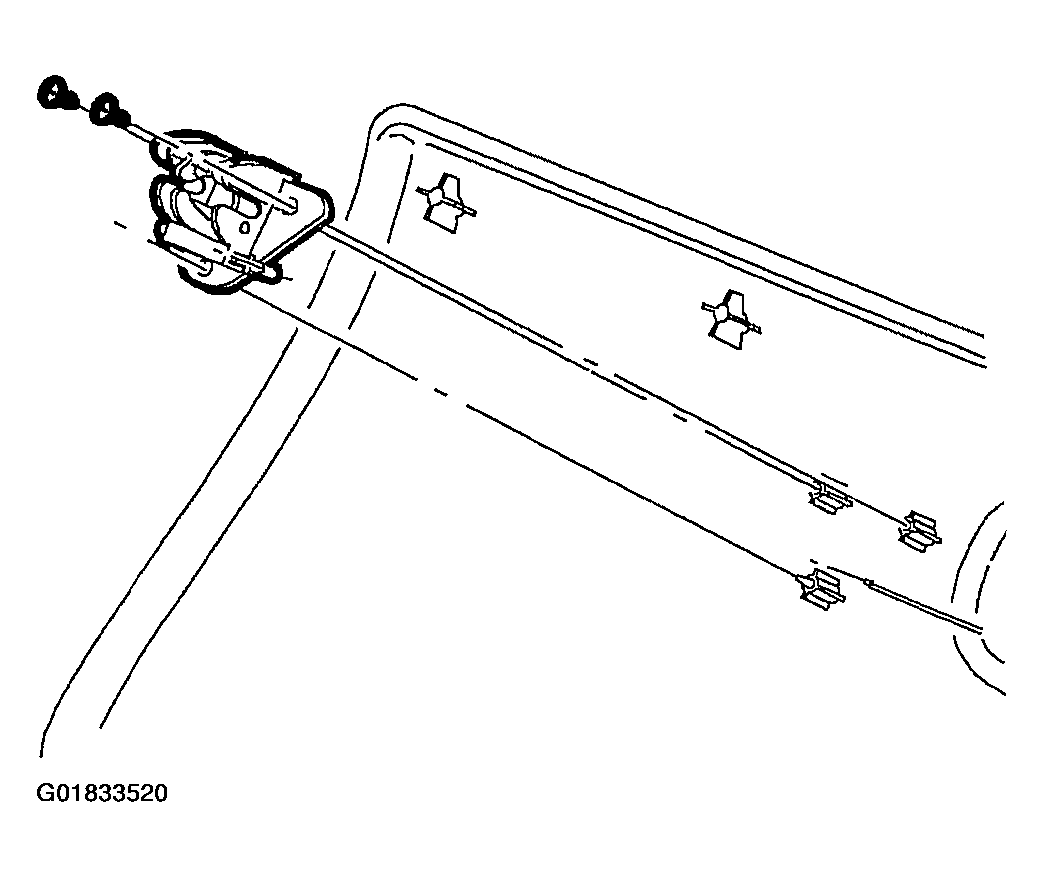

    5. Fig 3: Removing Latch Assembly
    G01833520Courtesy of GENERAL MOTORS CORP.
