I/P Cluster Trim Plate: Installation

  1. Install I/P cluster trim plate with fasteners. Tighten I/P cluster trim plate-to-I/P housing fasteners to 2.5 N.m (22 in-lbs).

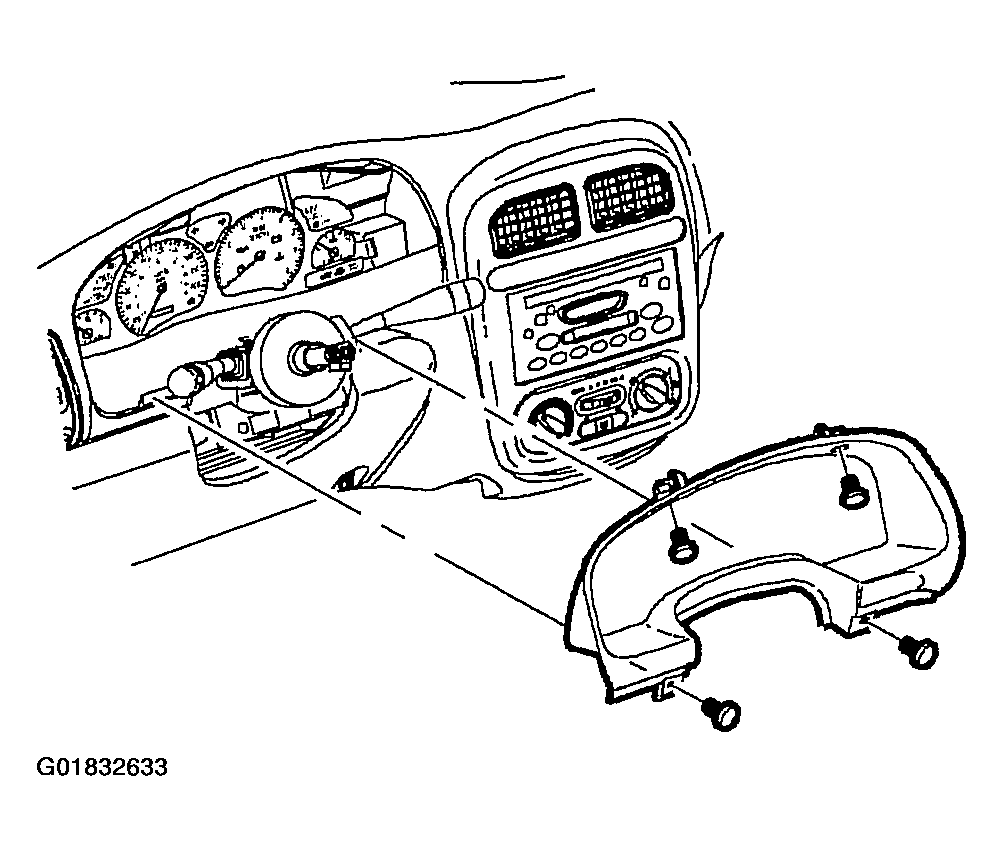

    2. Fig 1: Installing I/P Cluster Trim Plate With Fasteners
    G01832633Courtesy of GENERAL MOTORS CORP.
  2. Install steering column trim cover. Refer to STEERING COLUMN TRIM COVER installation procedure.

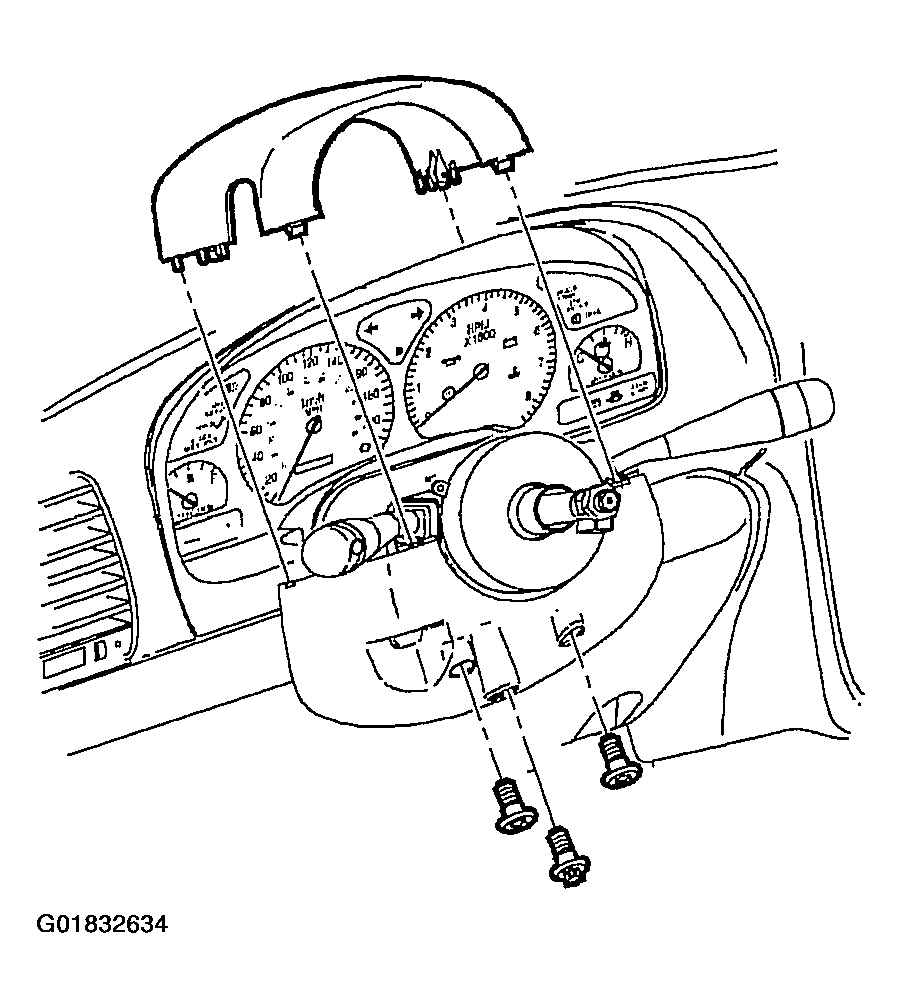

    Fig 2: Installing Steering Column Trim Cover
    G01832634Courtesy of GENERAL MOTORS CORP.
  3. Position I/P filler (knee bolster) to instrument panel and push at attaching clip locations to secure filler to I/P.

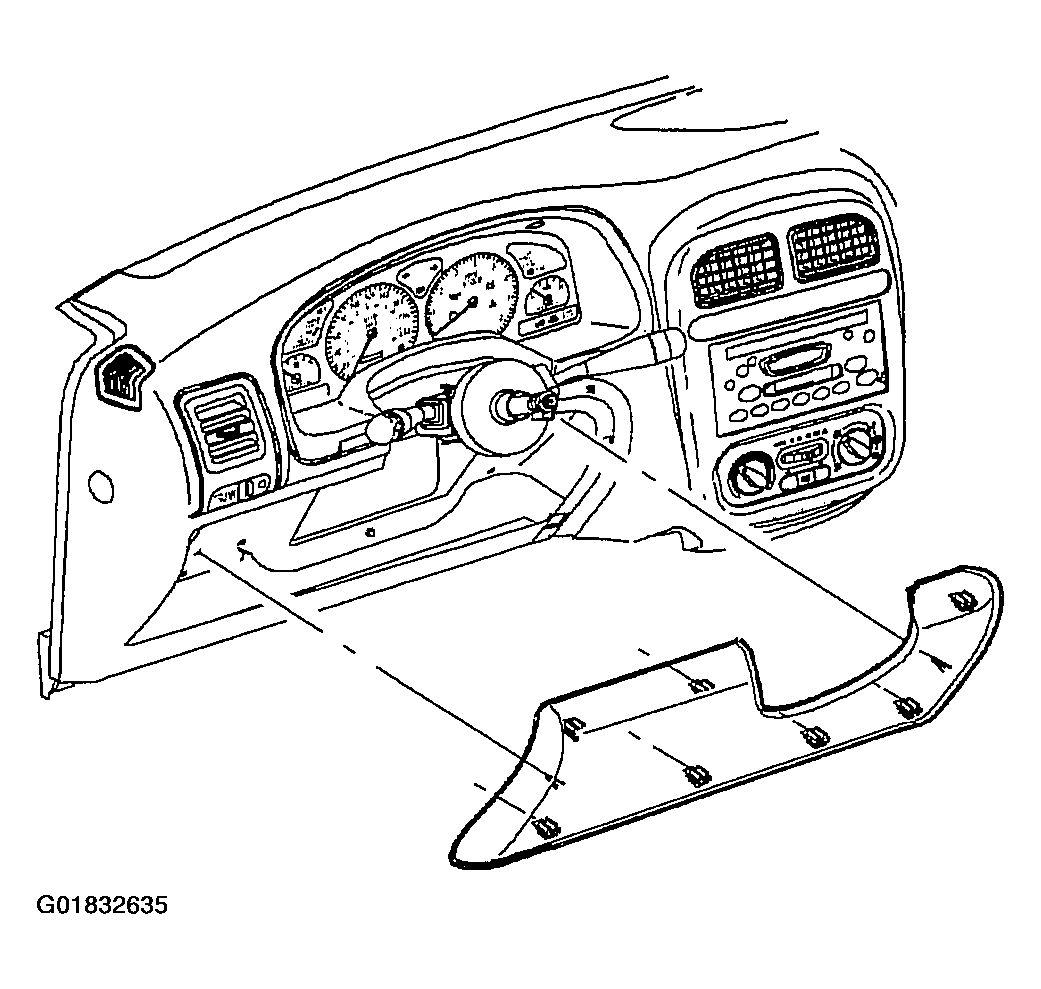

    4. Fig 3: Positioning I/P Filler (Knee Bolster) To Instrument Panel
    G01832635Courtesy of GENERAL MOTORS CORP.
  4. Install I/P left lower I/P closeout panel (hush panel) with retainers.

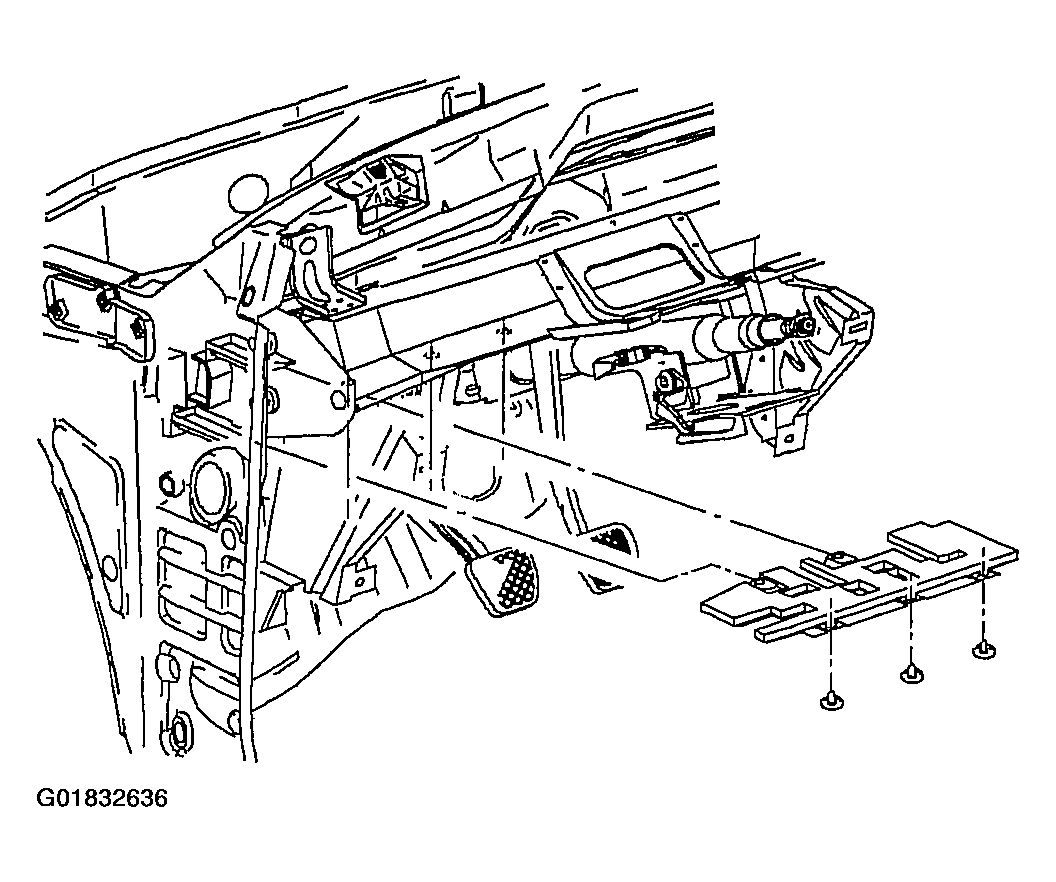

    5. Fig 4: Installing I/P Left Lower I/P Closeout Panel (Hush Panel)
    G01832636Courtesy of GENERAL MOTORS CORP.
  5. Reposition steering wheel.
