Radio Ground Strap: Removal

  1. Remove center trim plate.
    1. Grab trim plate at A/C vent area and pull gently to disengage attaching clips.
    2. Tilt trim plate sideways.
    3. Disconnect driver heated seat/fog switch, hazard switch, and traction/passenger heated seat switch electrical connectors and remove trim plate.

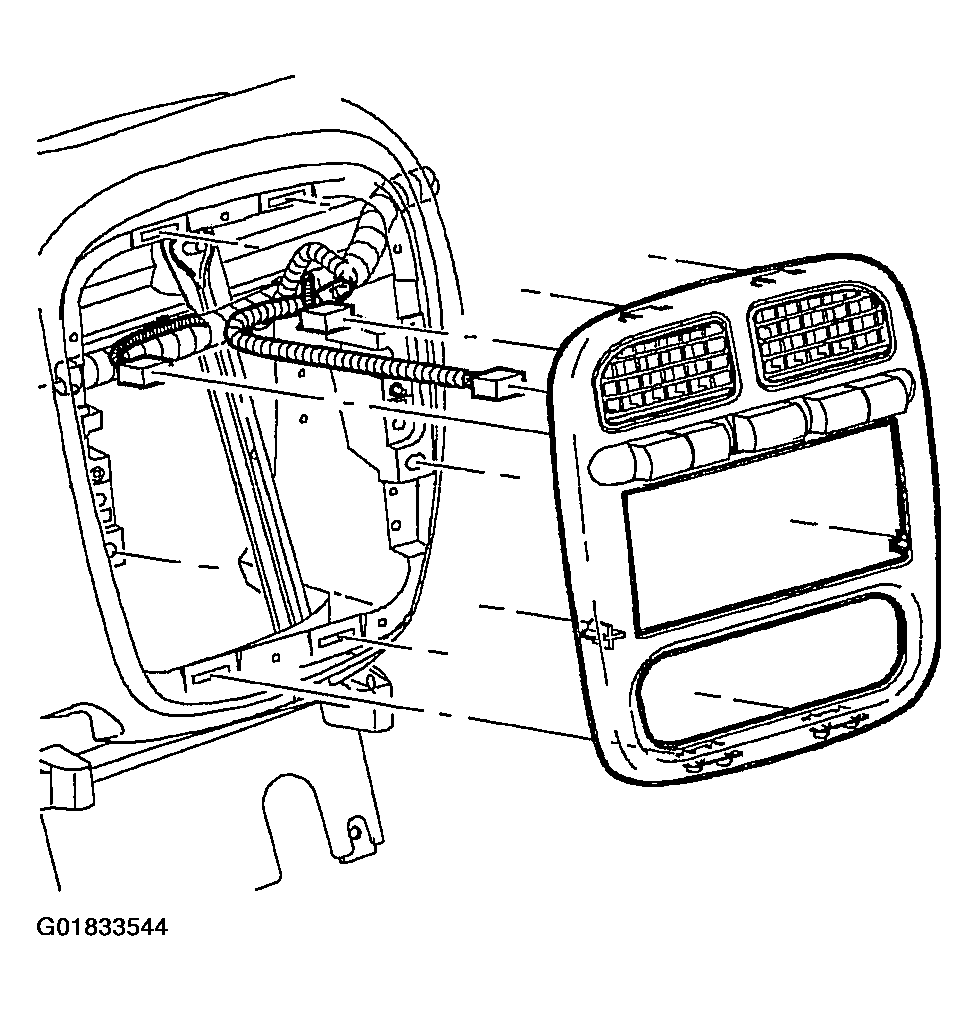

    2. Fig 1: Removing Center Trim Plate
    G01833544Courtesy of GENERAL MOTORS CORP.
  2. Remove radio screws.
  3. Pull radio out slightly to access rear of radio.
  4. Disconnect radio ground strap spade terminal, electrical connector(s), and antenna from rear of radio.
  5. Remove radio.

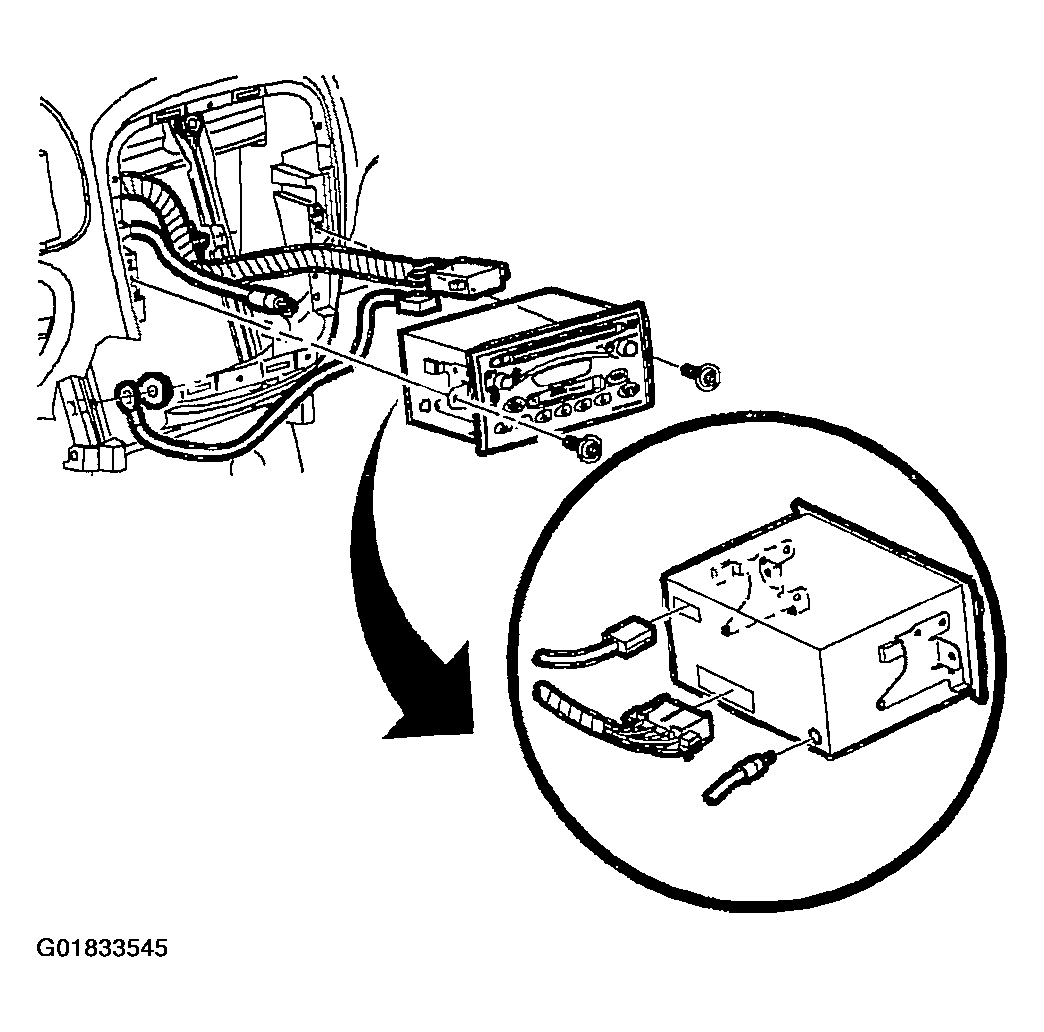

    6. Fig 2: Removing Radio
    G01833545Courtesy of GENERAL MOTORS CORP.
  6. Remove the nut attaching radio ground strap ring terminal to H-Brace behind radio.
  7. Remove radio ground strap.
