Radio Ground Strap: Installation

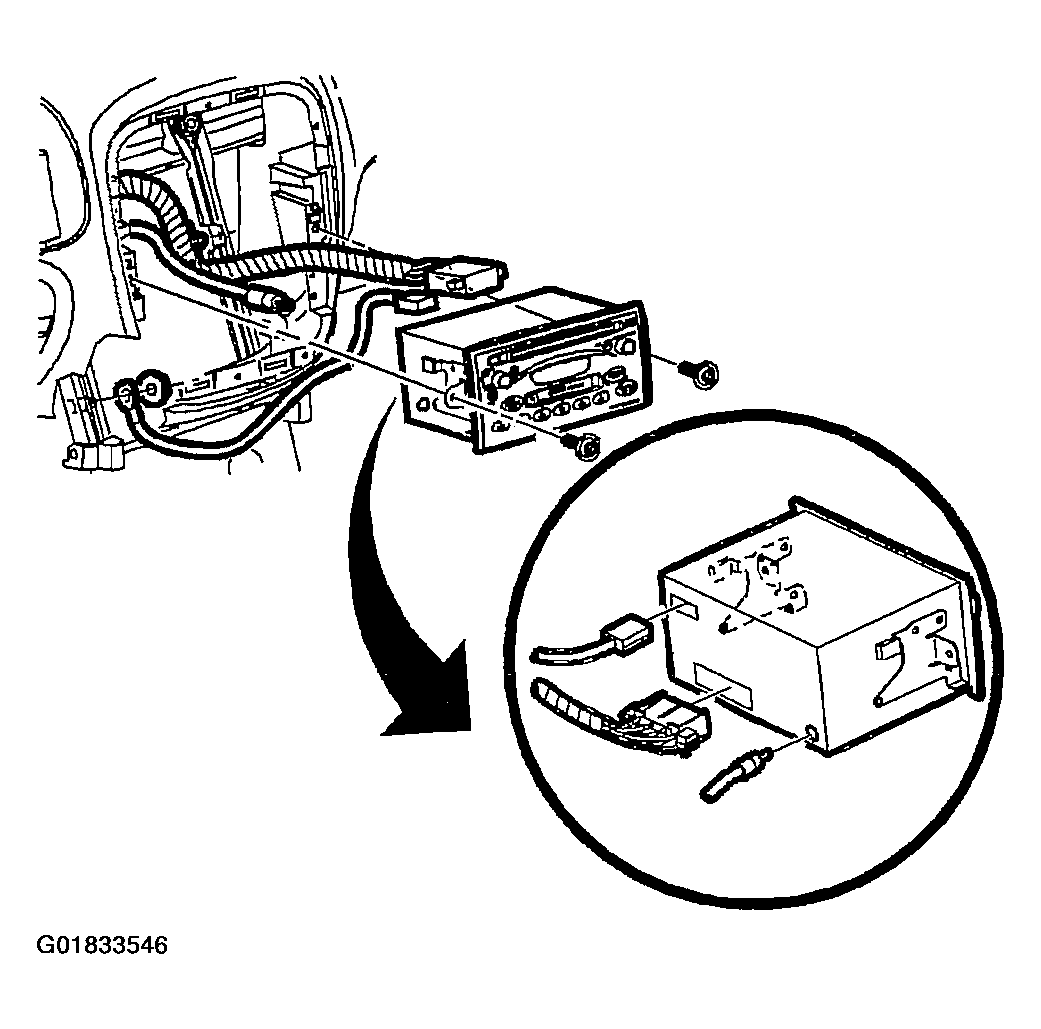

- Connect nut attaching the radio ground strap ring terminal to the H-Brace behind the radio. Tighten radio ground strap-to-H-brace stud fasteners to 6 N.m (53 in lbs).
- Connect radio ground strap spade terminal, electrical connector(s), and antenna to rear of radio.
- Install radio.
Courtesy of GENERAL MOTORS CORP.
- Install and tighten screws. Tighten radio-to-I/P fasteners to 2.5 N.m (22 in lbs).

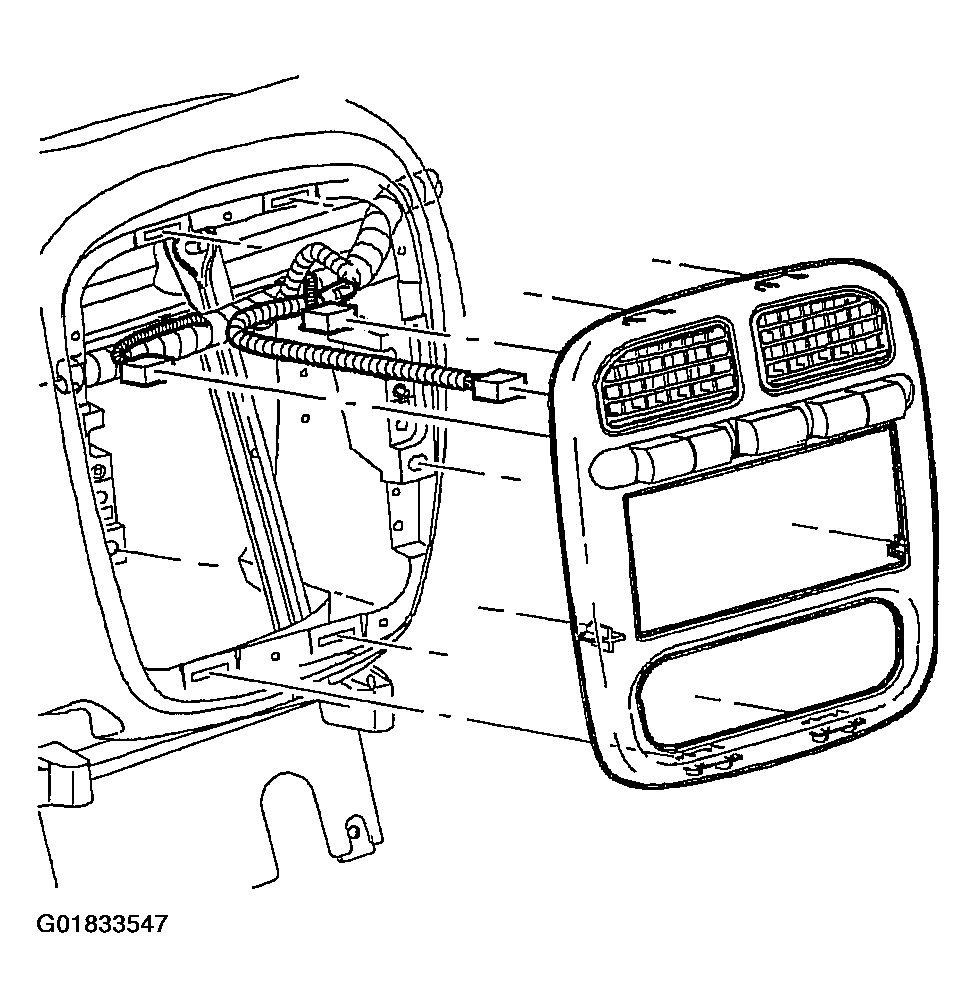

- Install center trim plate.
- Tilt trim plate sideways.
- Connect driver heated seat/fog switch, hazard switch, and traction/passenger heated seat switch electrical connectors.
- Snap center trim plate into I/P by gently engaging the attachment clips.
Courtesy of GENERAL MOTORS CORP.
