Glove Compartment Door Cover: Installation

  1. If glove compartment door cover is being replaced, remove spring clip and transfer handle assembly to new cover.

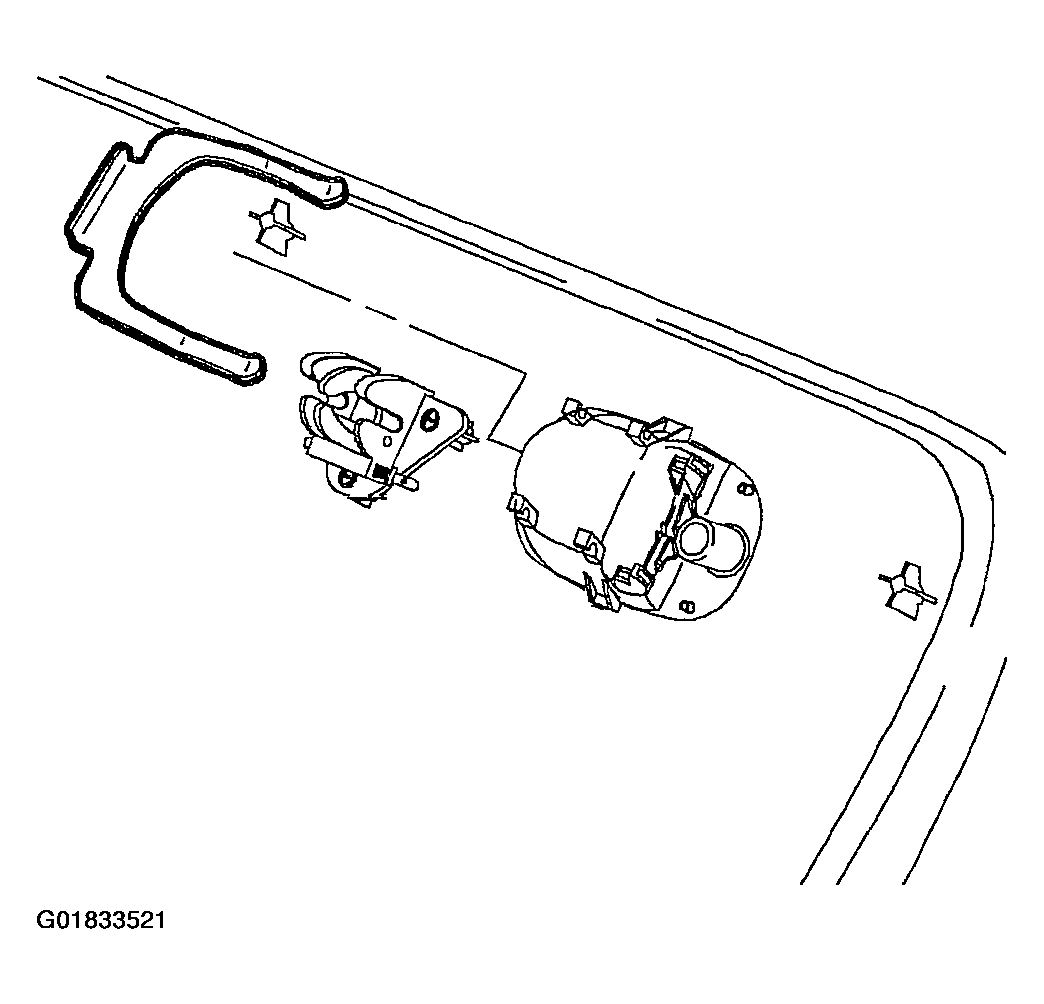

    2. Fig 1: Transferring Handle Assembly To New Cover
    G01833521Courtesy of GENERAL MOTORS CORP.
  2. Install glove compartment latch with latch fasteners. Tighten glove compartment latch fasteners to 2 N.m (18 in lbs).

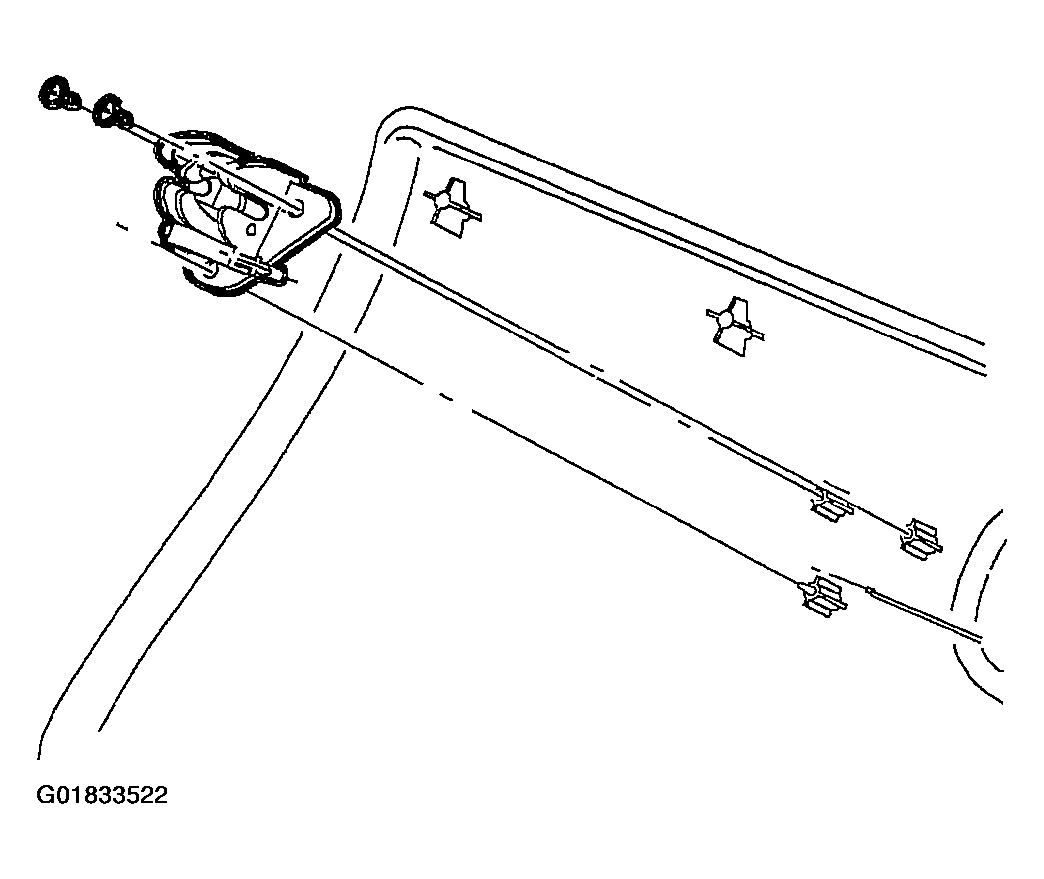

    3. Fig 2: Installing Glove Compartment Latch
    G01833522Courtesy of GENERAL MOTORS CORP.
  3. Snap in latch to handle connector rod.
  4. Position glove compartment door inner cover to outer cover and secure with fasteners.

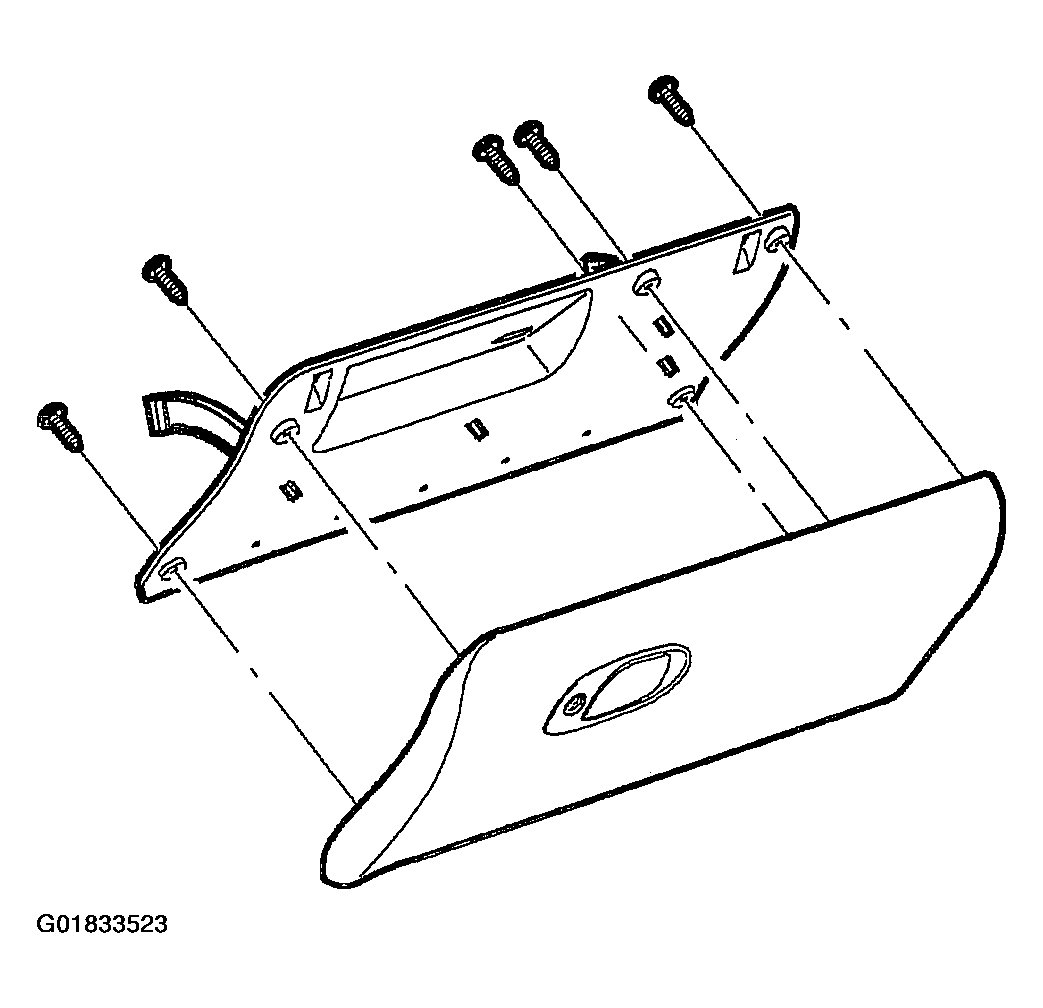

    5. Fig 3: Securing Glove Compartment Door Inner Cover To Outer Cover
    G01833523Courtesy of GENERAL MOTORS CORP.
  5. Torque fasteners. Tighten glove compartment door outer cover fasteners to 2 N.m (18 in lbs).
  6. Position glove compartment door to vehicle.
  7. Using an awl to aid in the spring loaded hinge, position hinge to lower attachment with awl in the center fastener hole.
  8. Install outer fasteners.
  9. Install center fastener. Tighten glove compartment door fasteners to 2 N.m (18 in lbs).

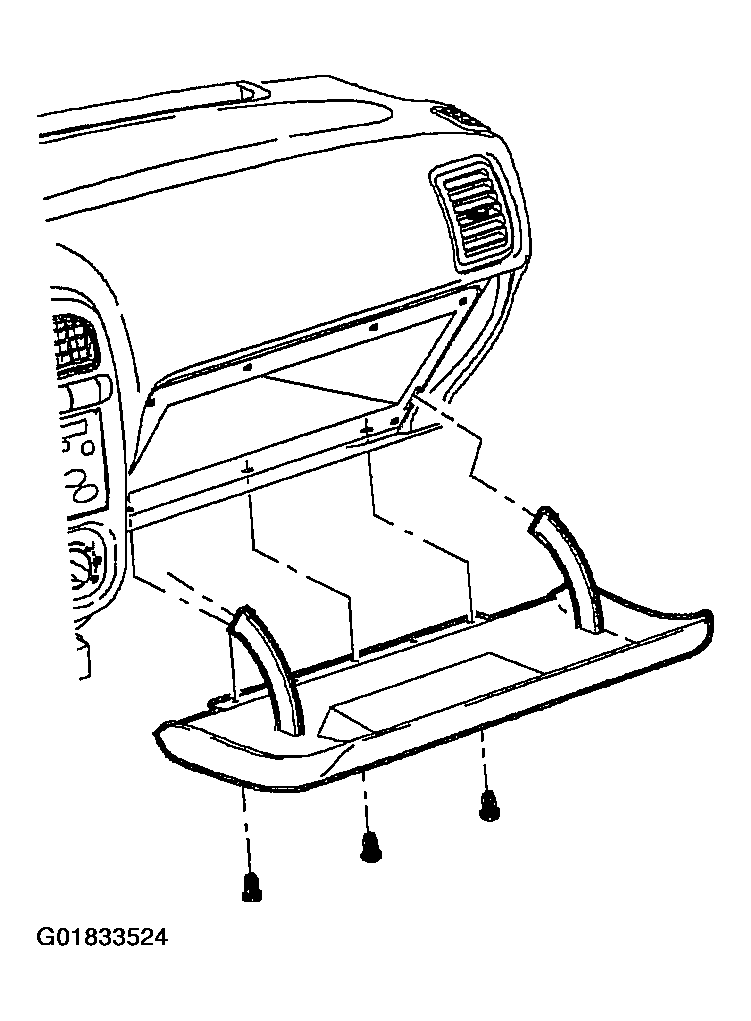

    10. Fig 4: Installing Glove Compartment Door Fasteners
    G01833524Courtesy of GENERAL MOTORS CORP.
  10. Operate glove compartment door to check for fit and function.
  11. Adjust if necessary then tighten fasteners.
