Glove Compartment Bin: Installation

  1. Install glove compartment bin partially into opening.

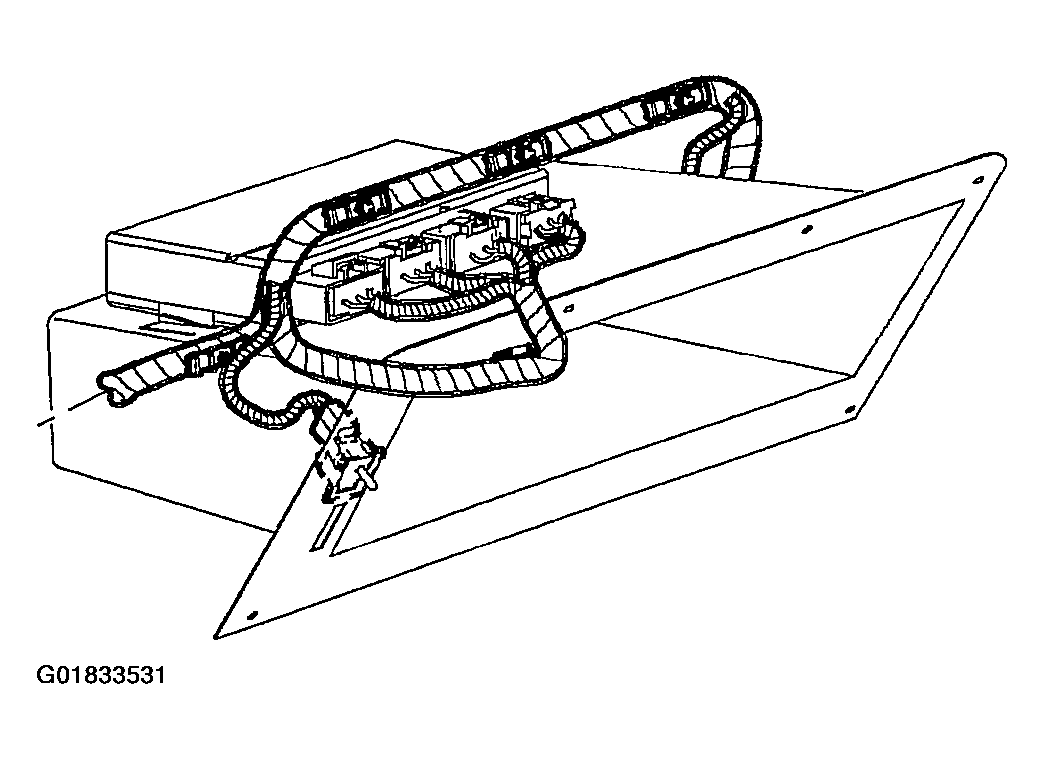

    2. Fig 1: Installing Glove Compartment Bin
    G01833531Courtesy of GENERAL MOTORS CORP.
  2. Secure BCM to glove compartment bin slots.
  3. Route glove box lamp wiring harness through lamp opening and connect glove compartment lamp wiring harness to glove compartment lamp.

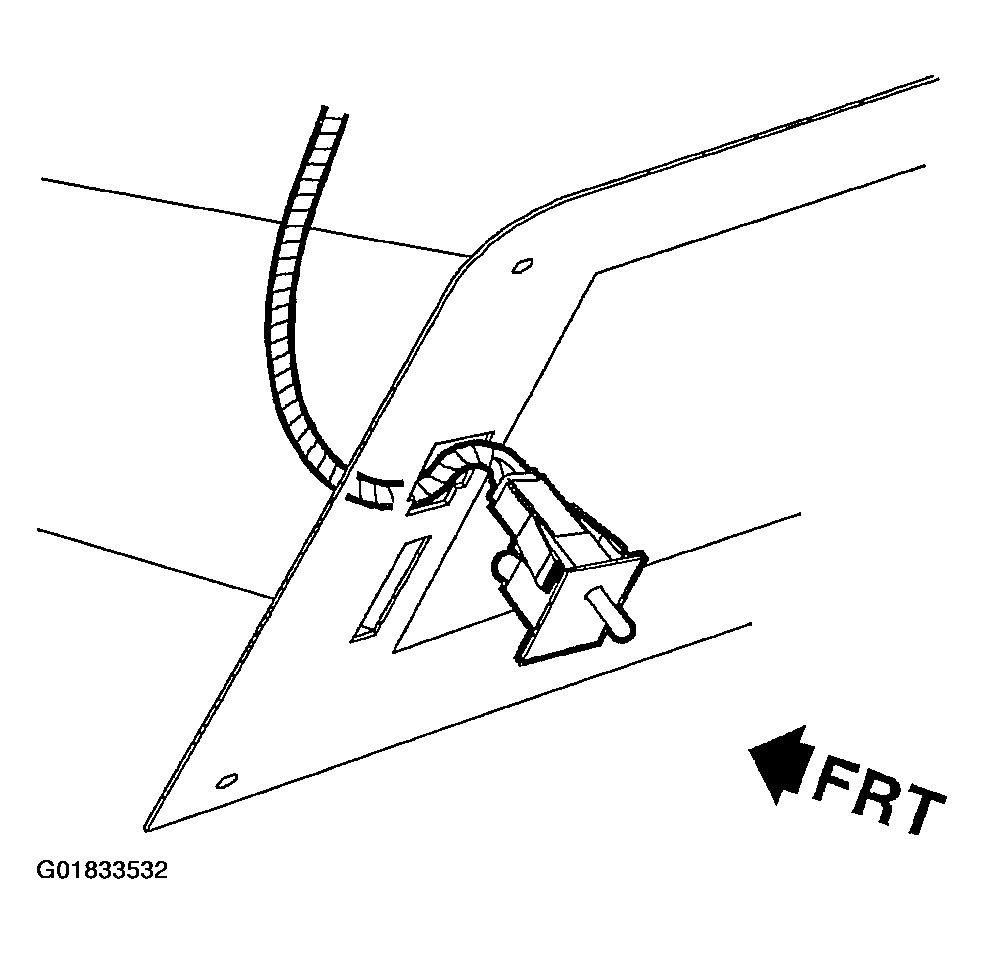

    4. Fig 2: Connecting Glove Compartment Lamp Wiring Harness To Glove Compartment Lamp
    G01833532Courtesy of GENERAL MOTORS CORP.
  4. Snap lamp into glove compartment bin.
  5. Install glove compartment bin to I/P with fasteners. Tighten glove compartment bin-to-I/P fasteners to 2.5 N.m (22 in lbs).

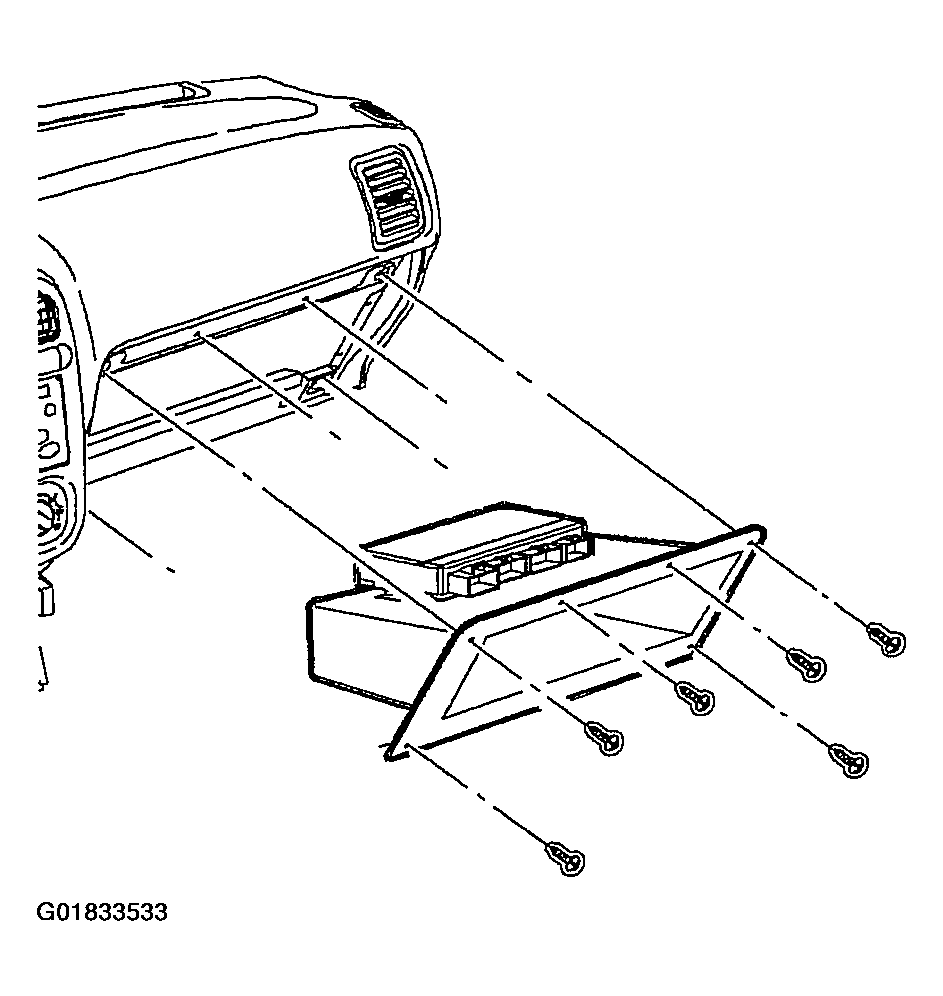

    6. Fig 3: Installing Glove Compartment Bin To I/P
    G01833533Courtesy of GENERAL MOTORS CORP.
  6. Install heater outlet with retainer to glove compartment bin.

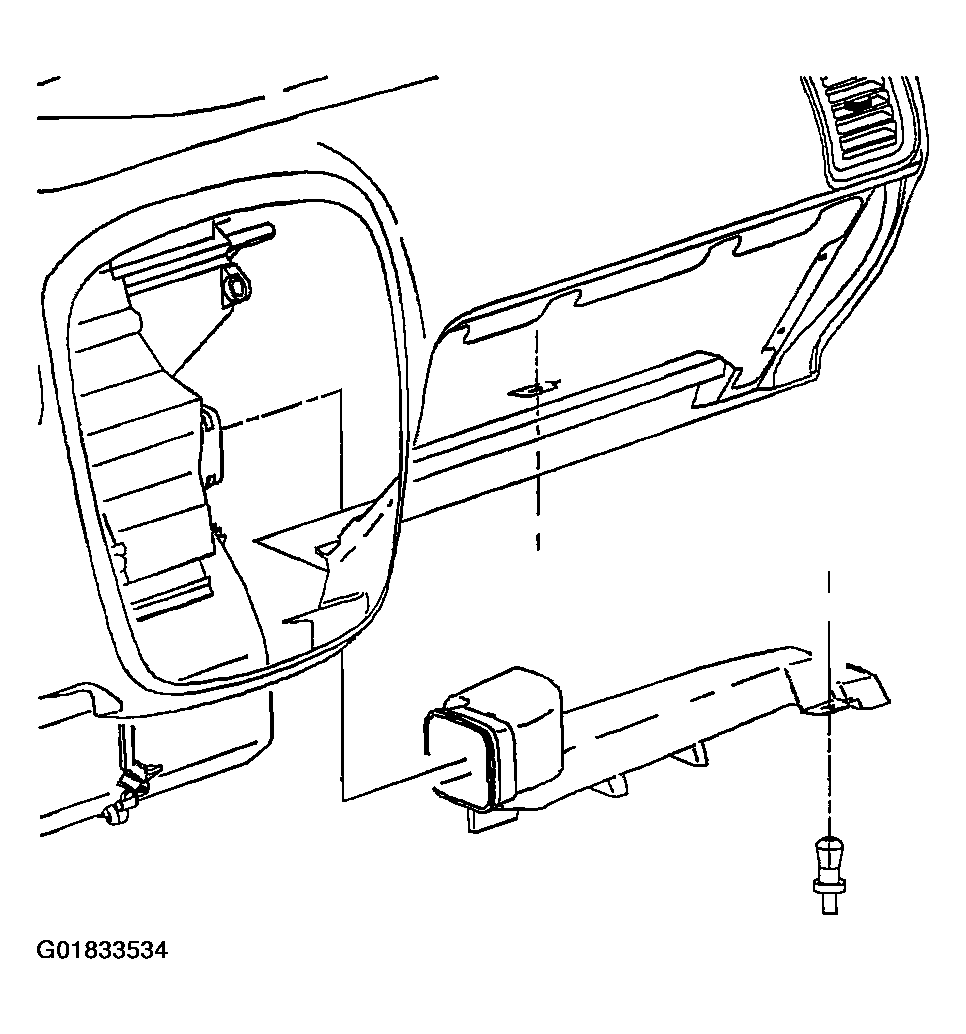

    7. Fig 4: Installing Heater Outlet With Retainer To Glove Compartment Bin
    G01833534Courtesy of GENERAL MOTORS CORP.
  7. Install right side lower I/P closeout panel (hush panel) with retainers.

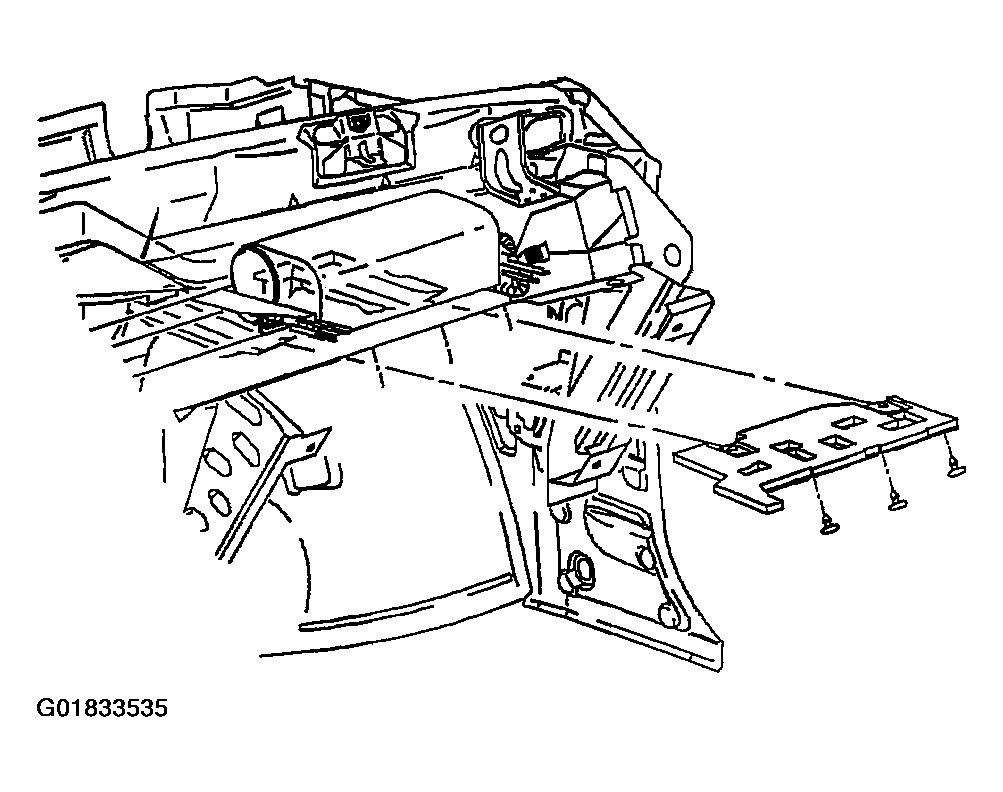

    8. Fig 5: Installing Right Side Lower I/P Closeout Panel (Hush Panel)
    G01833535Courtesy of GENERAL MOTORS CORP.
  8. Function glove compartment lamp and glove compartment door to ensure proper operation.
  9. Install glove compartment door with fasteners. Tighten glove compartment door fasteners to 2 N.m (18 in lbs).

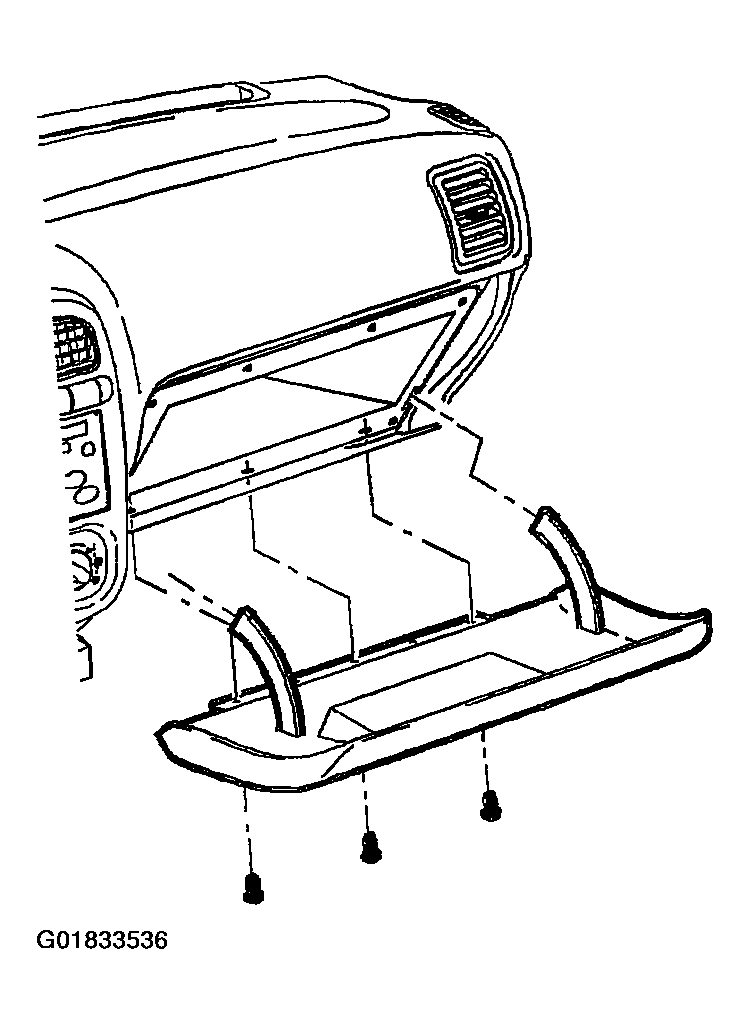

    10. Fig 6: Installing Glove Compartment Door
    G01833536Courtesy of GENERAL MOTORS CORP.
