Console Cup Holder: Removal

  1. Disengage park brake boot by squeezing at attachment locations.
  2. Lift boot out of the way.

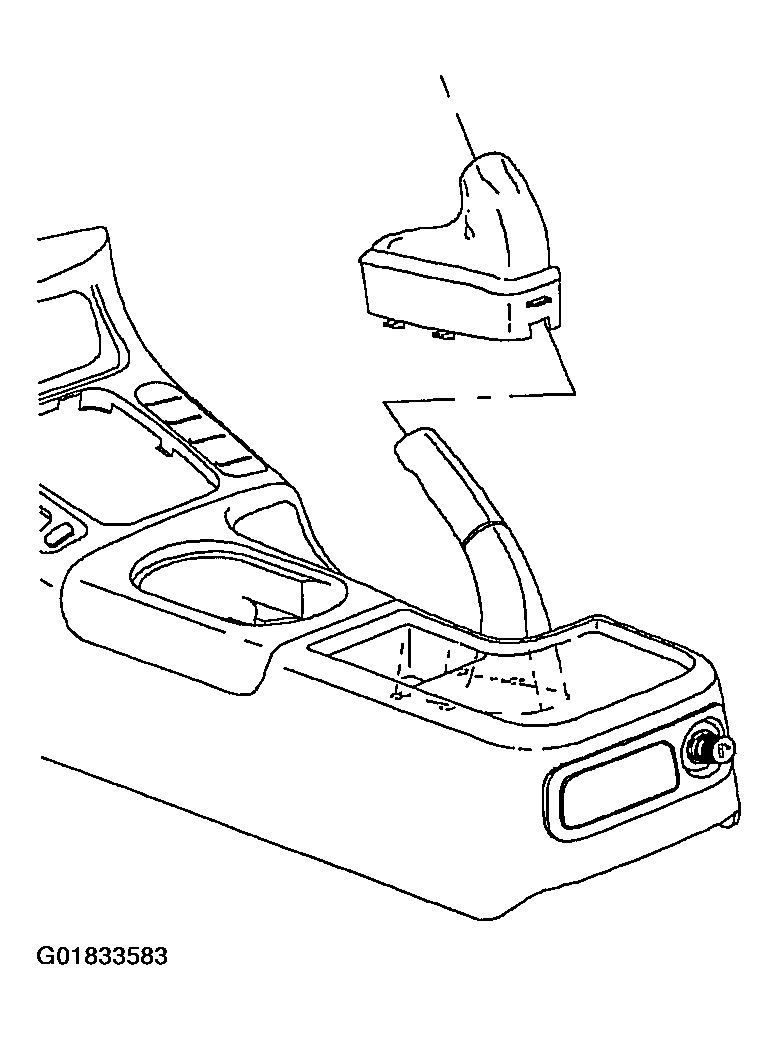

    3. Fig 1: Lifting Boot Out Of The Way
    G01833583Courtesy of GENERAL MOTORS CORP.
  3. Pull up firmly on cup holder to disengage cup holder from console.
  4. Remove cup holder.

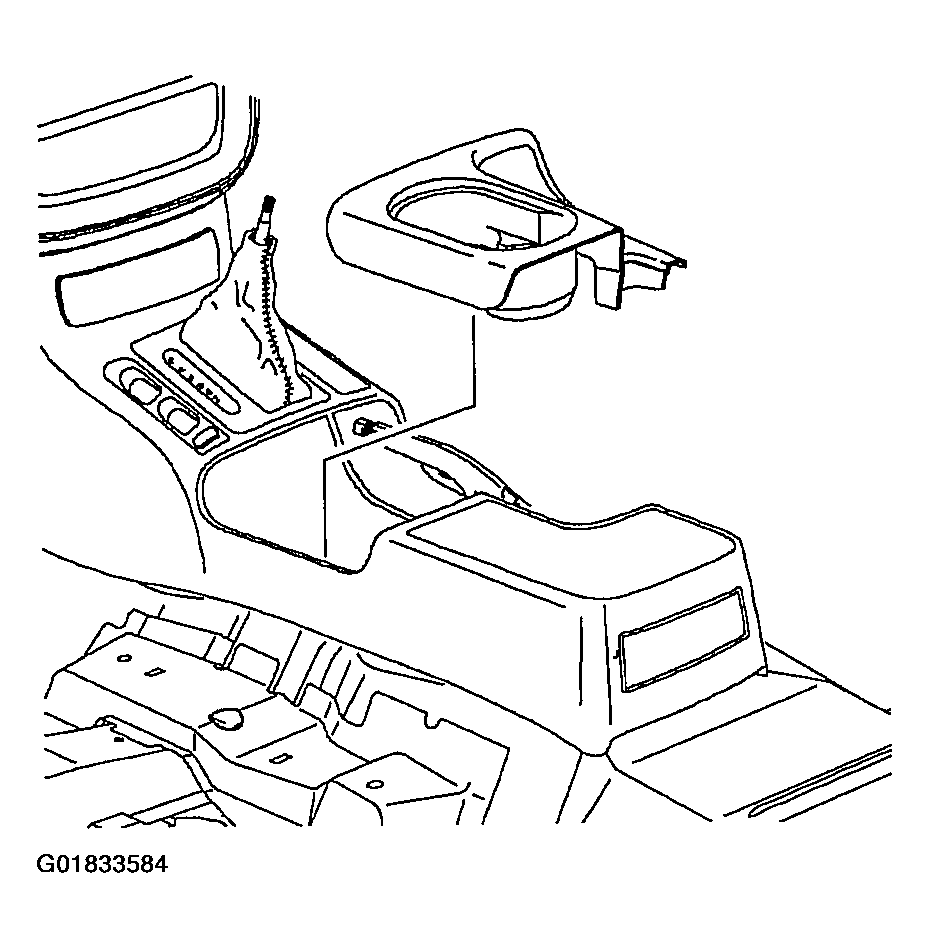

    5. Fig 2: Removing Cup Holder
    G01833584Courtesy of GENERAL MOTORS CORP.
