A/C Vent - Left Side: Installation

  1. If left side A/C vent is being replaced, transfer interior lamp dimmer switch to new vent.

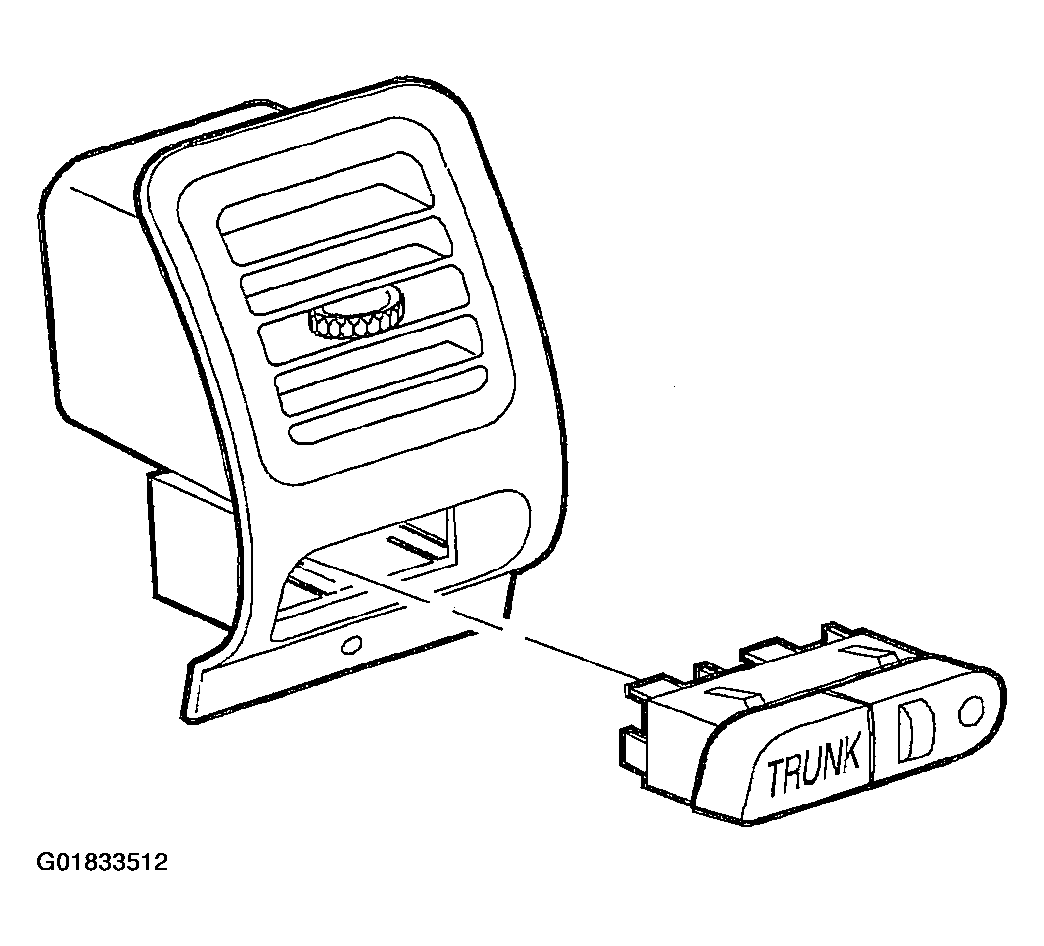

    2. Fig 1: Transferring Interior Lamp Dimmer Switch To New Vent
    G01833512Courtesy of GENERAL MOTORS CORP.
  2. Connect electrical connection to interior lamp dimmer switch.
  3. Install left side A/C vent fastener. Tighten A/C outlet-to-I/P fastener to 2.5 N.m (22 in lbs).

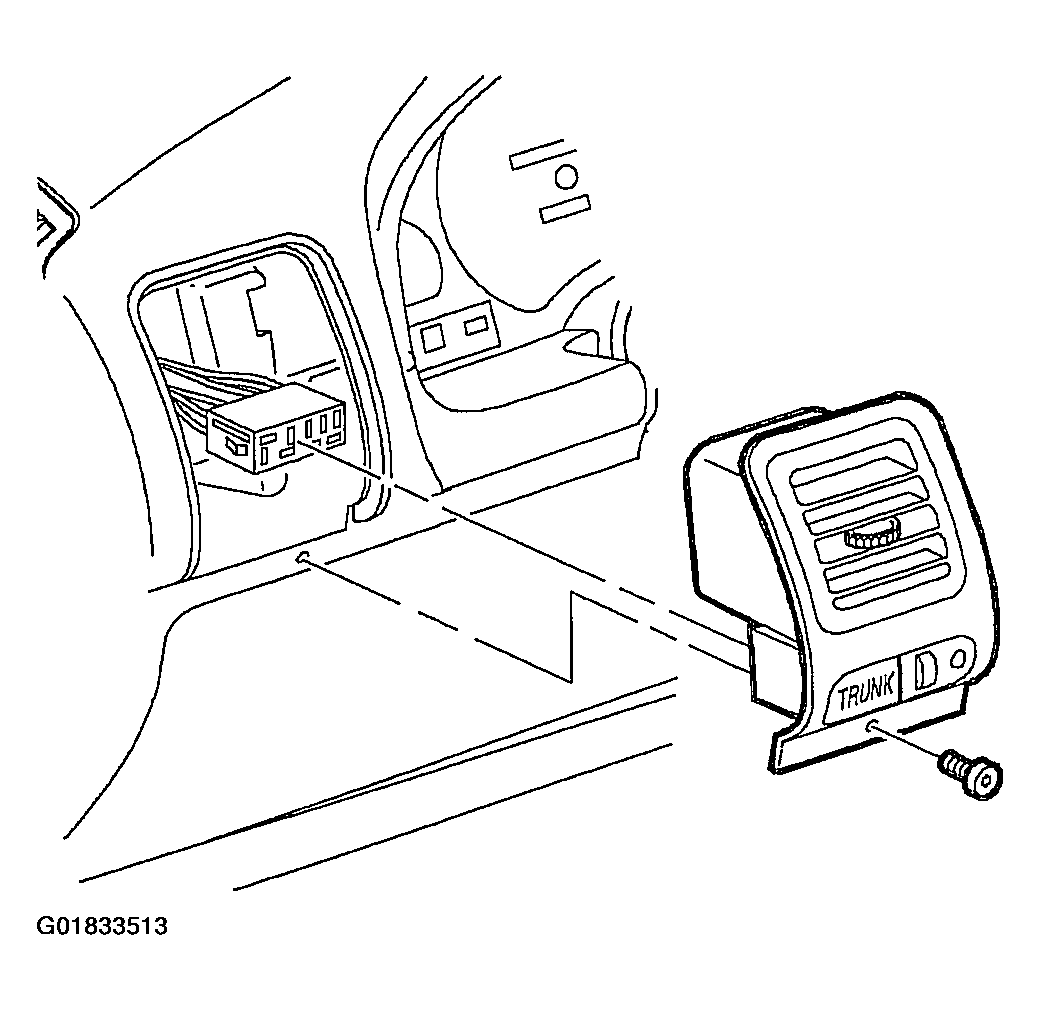

    4. Fig 2: Installing Left Side A/C Vent Fastener
    G01833513Courtesy of GENERAL MOTORS CORP.
  4. Install I/P filler (knee bolster).
    5. Fig 3: Installing I/P Filler (Knee Bolster)
    G01833514Courtesy of GENERAL MOTORS CORP.
  5. Install left side lower I/P closeout panel (hush panel) with retainers.

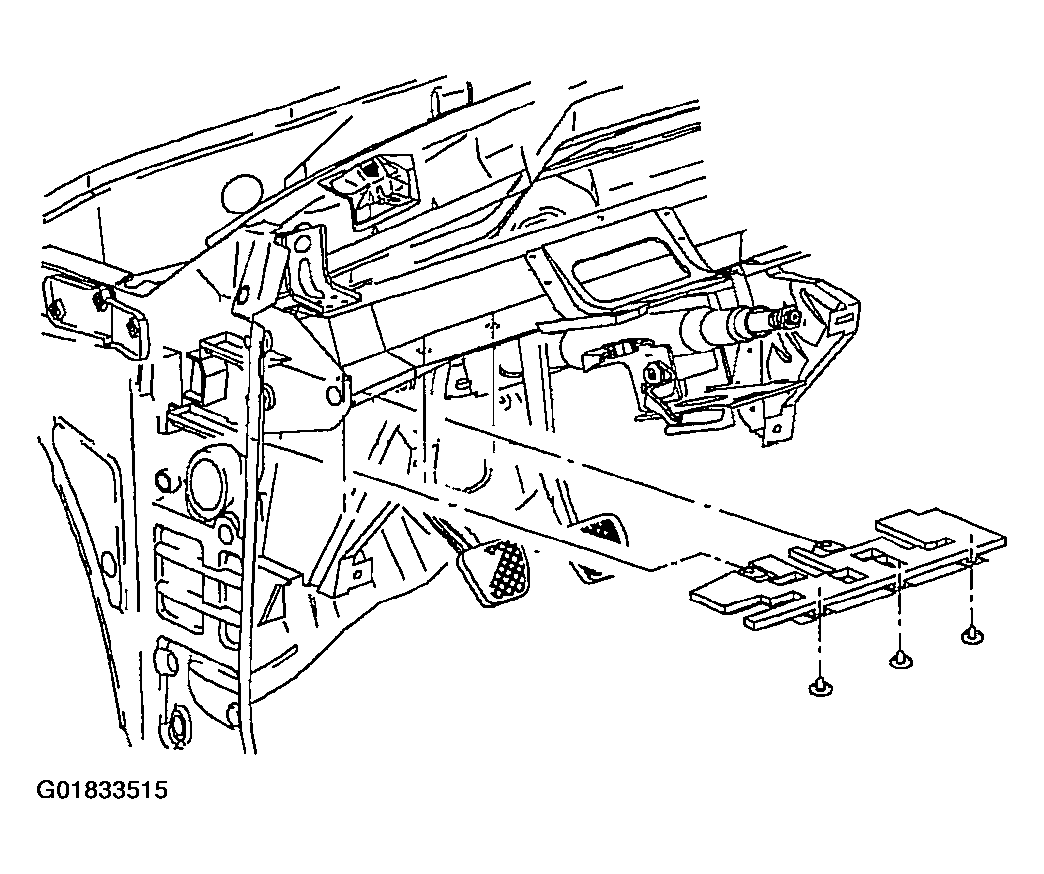

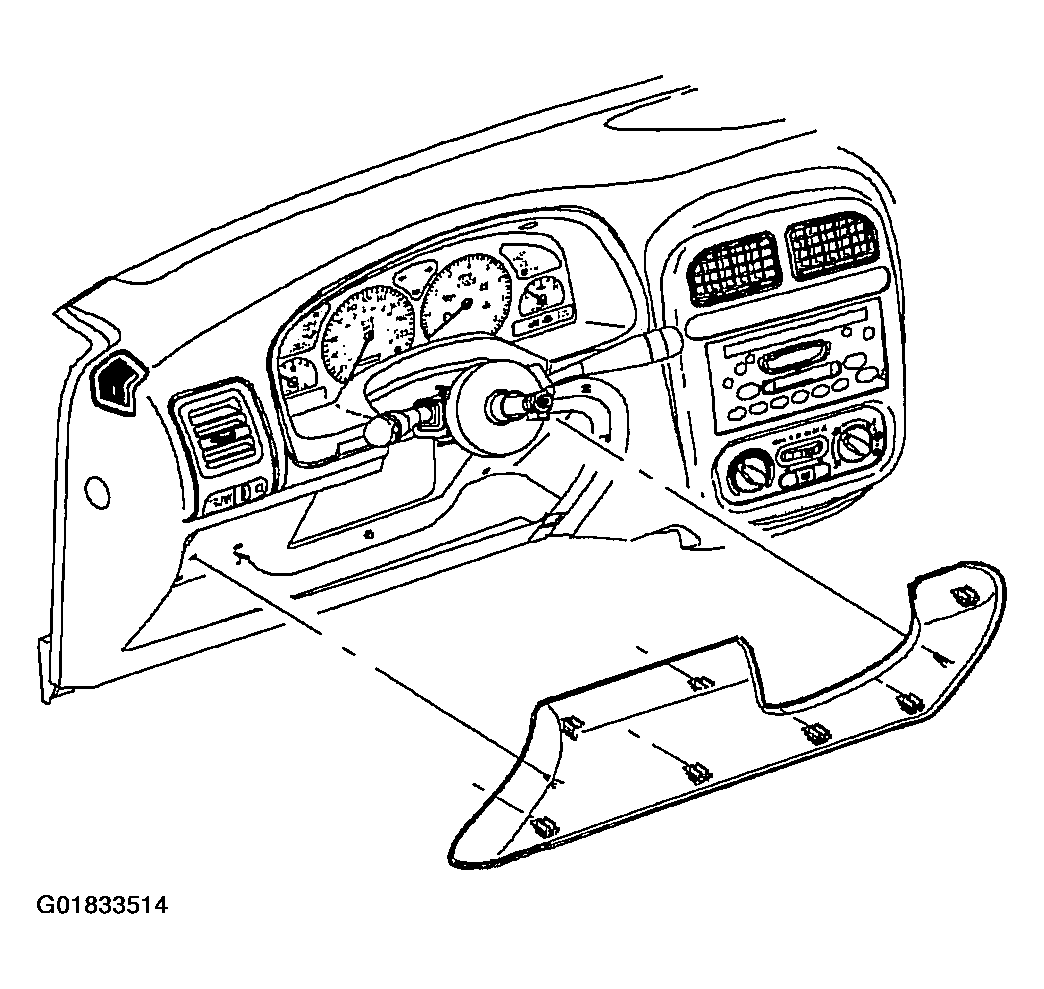

    6. Fig 4: Installing Left Side Lower I/P Closeout Panel (Hush Panel)
    G01833515Courtesy of GENERAL MOTORS CORP.
