Lens/Mask Assembly: Installation

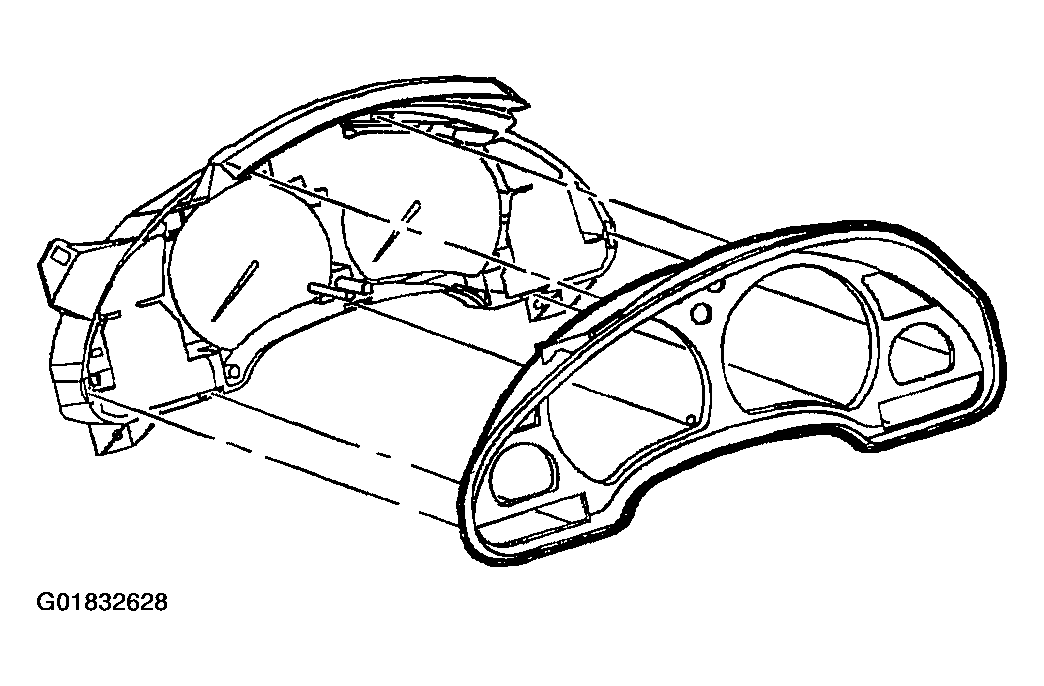

- Holding lens/mask assembly by the ends and face up align reset knob with hole in lens.
Courtesy of GENERAL MOTORS CORP.
- Start lens/mask tabs into slots in housing and at the top of cluster seat two housing tabs into lens/mask slots.
- Press down on top of lens/mask around edge to fully seat all clips.
- Inspect that all gages and clips are seated correctly and that there is no debris or markings on the lens or dial faces.
- Install instrument panel cluster assembly. Refer to I/P CLUSTER
procedure.
