I/P Cluster Trim Plate: Removal

  1. Remove left side I/P lower closeout panel (hush panel) retainers and let closeout panel (hush panel) hang loose.

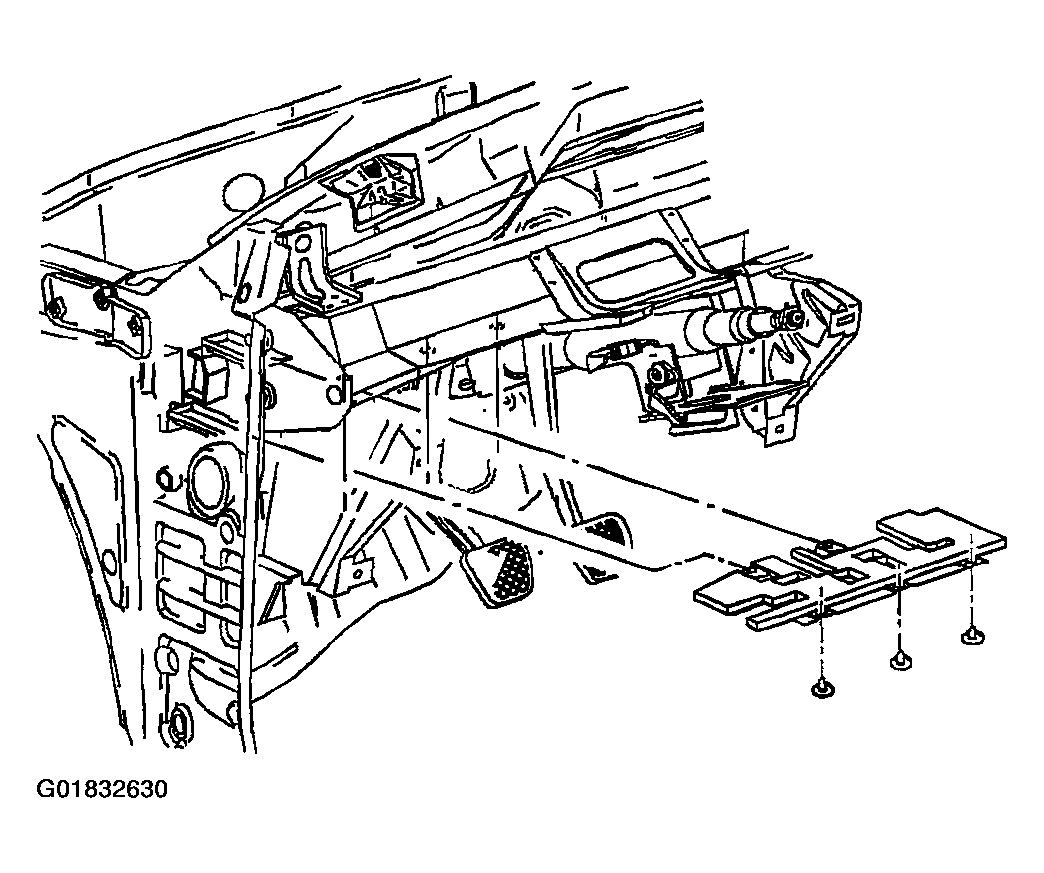

    2. Fig 1: Removing Left Side I/P Lower Closeout Panel (Hush Panel) Retainers
    G01832630Courtesy of GENERAL MOTORS CORP.
  2. Remove I/P filler (knee bolster) by pulling at attaching clip locations.

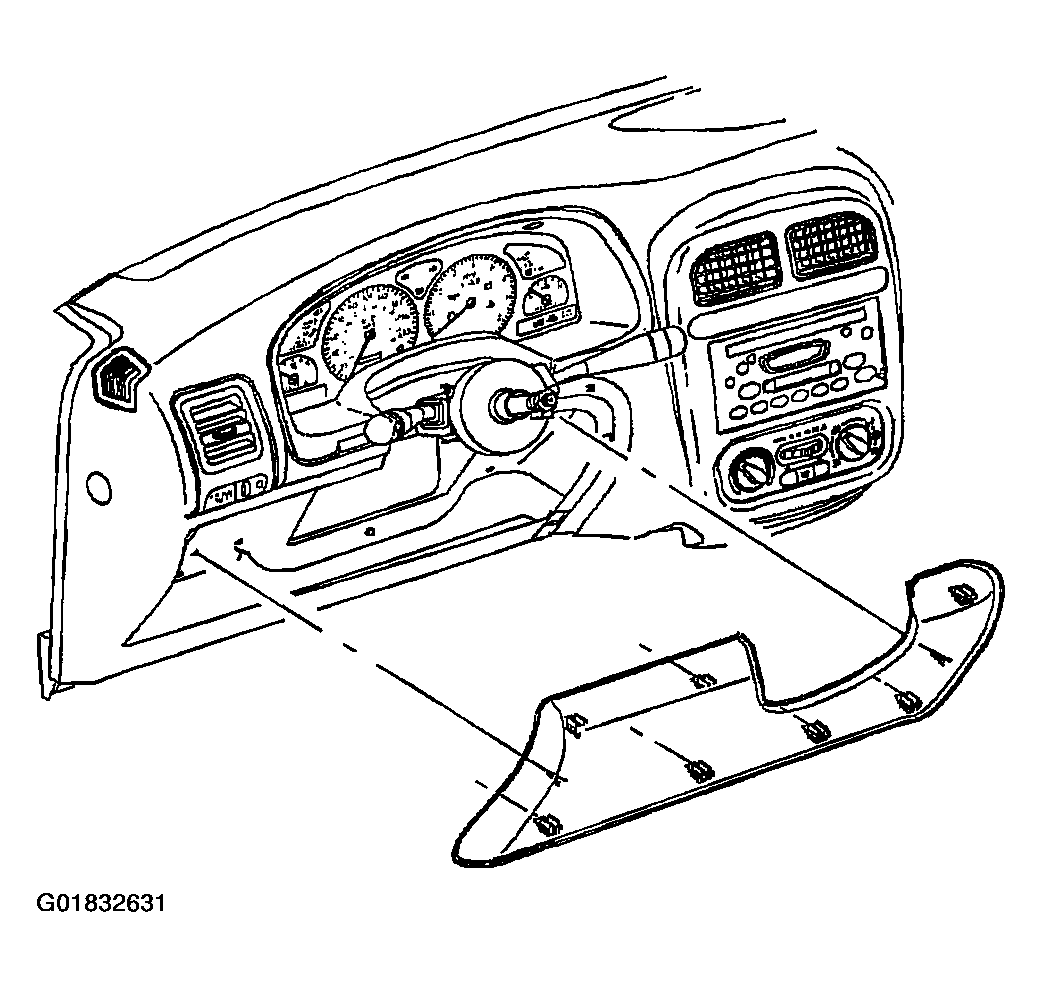

    3. Fig 2: Removing I/P Filler (Knee Bolster)
    G01832631Courtesy of GENERAL MOTORS CORP.
  3. Remove steering column trim cover. Refer to STEERING COLUMN TRIM COVER removal procedure.
  4. Move steering wheel to lowest position.
  5. Remove upper and lower I/P cluster trim plate fasteners and remove trim plate.

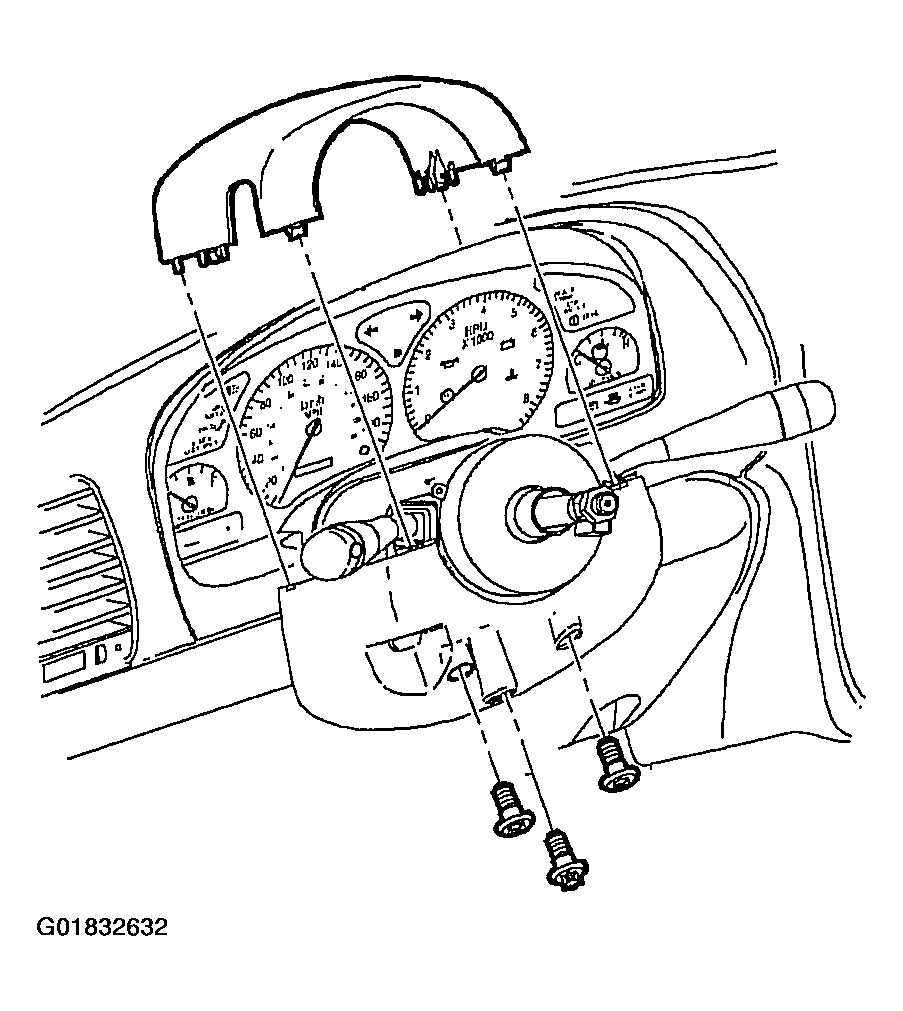

    6. Fig 3: Removing Trim Plate
    G01832632Courtesy of GENERAL MOTORS CORP.
