Home >> Saturn >> 2002 >> L100 >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrumentation & Driver Information >> Diagnostics >> Instrument Panel Cluster Connector Face Views

Instrument Panel Cluster Connector Face Views

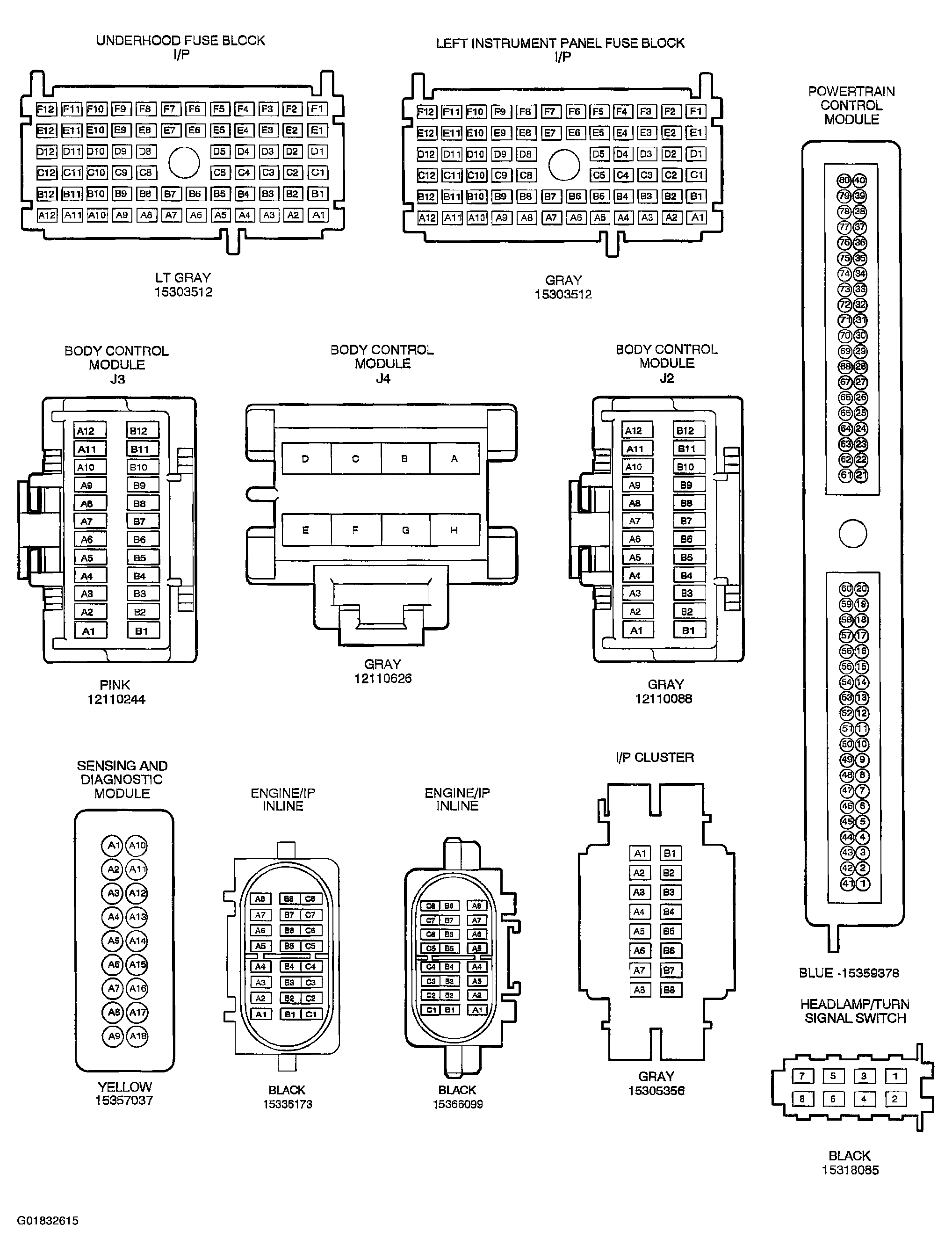

Fig 1: Instrument Panel Cluster Connector Face Views

G01832615

Courtesy of GENERAL MOTORS CORP.
