I/P Cluster Telltales & Indicators

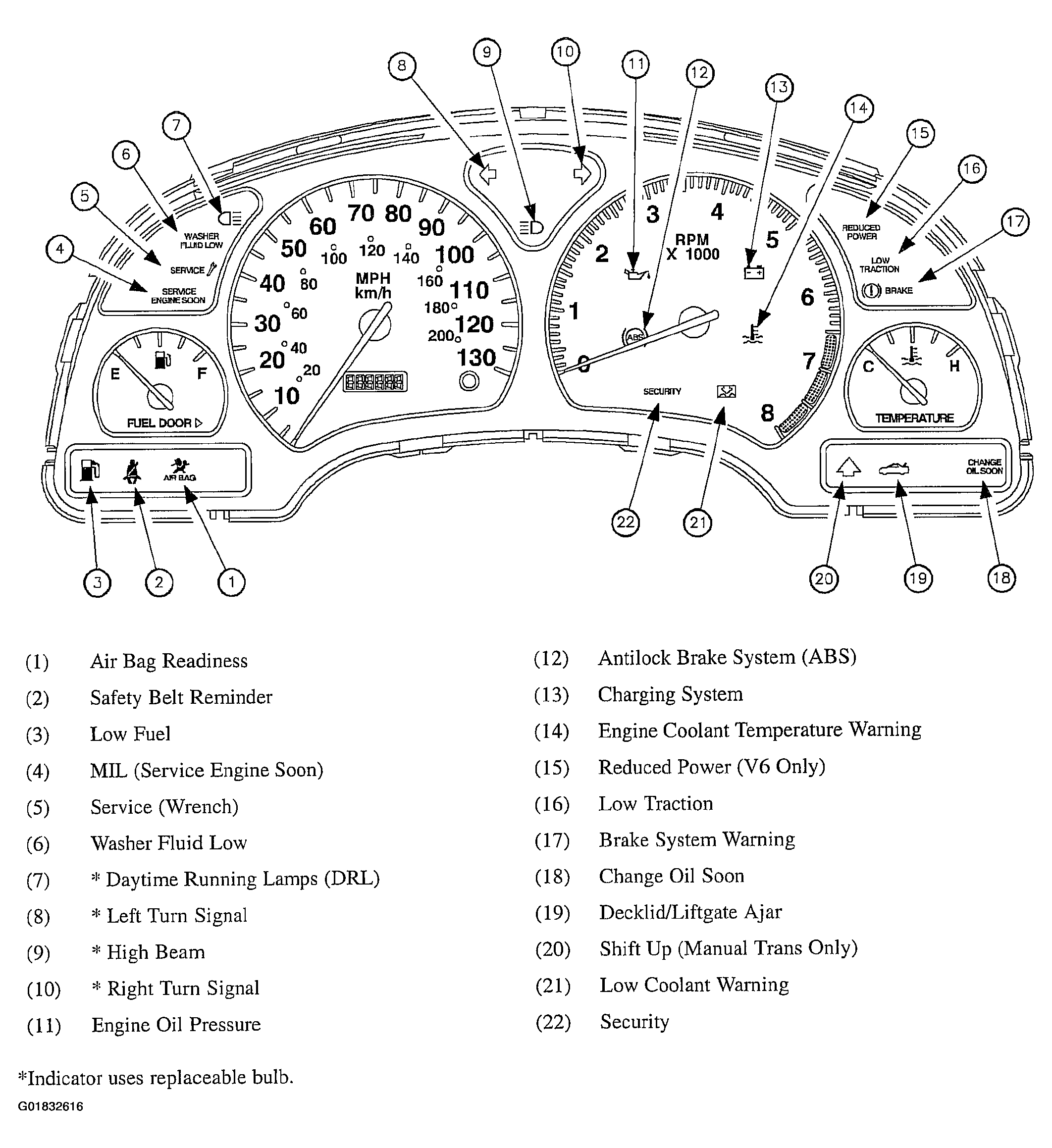

Fig 1: I/P Cluster Telltales & Indicators (Front View)

Courtesy of GENERAL MOTORS CORP.

NOTE: The Daytime Running Lamps (DRL) indicator, high beam indicator and turn signal indicators all use replaceable bulbs (blue base). All other telltales utilize LEDs which are not replaceable. Additionally, the instrument cluster contains six replaceable bulbs (blue base) for illumination and one replaceable bulb (white base) for odometer backlighting.

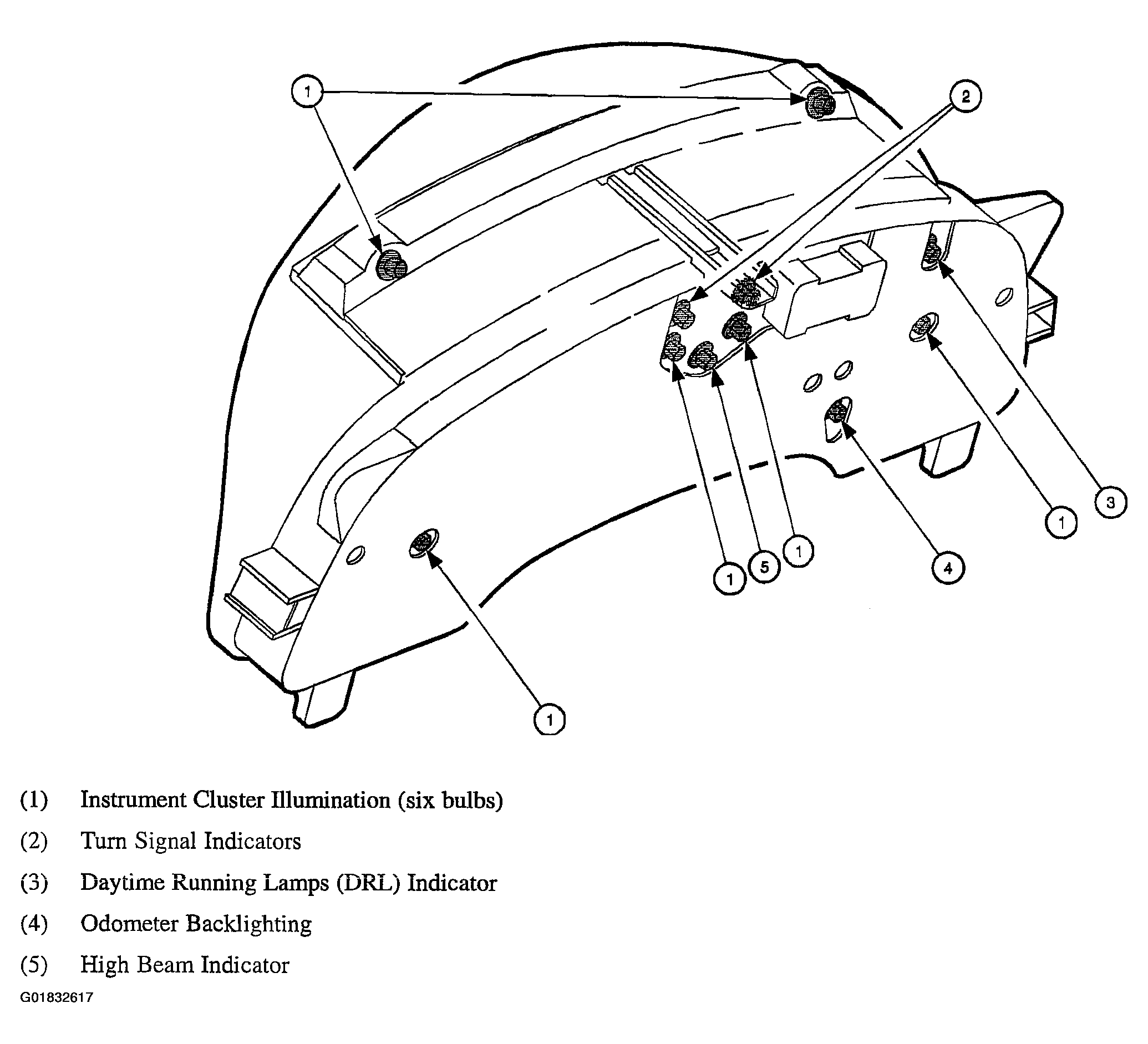

Fig 2: I/P Cluster Telltales & Indicators (Rear View)

Courtesy of GENERAL MOTORS CORP.
