I/P Cluster Symptom Diagnosis: Notes

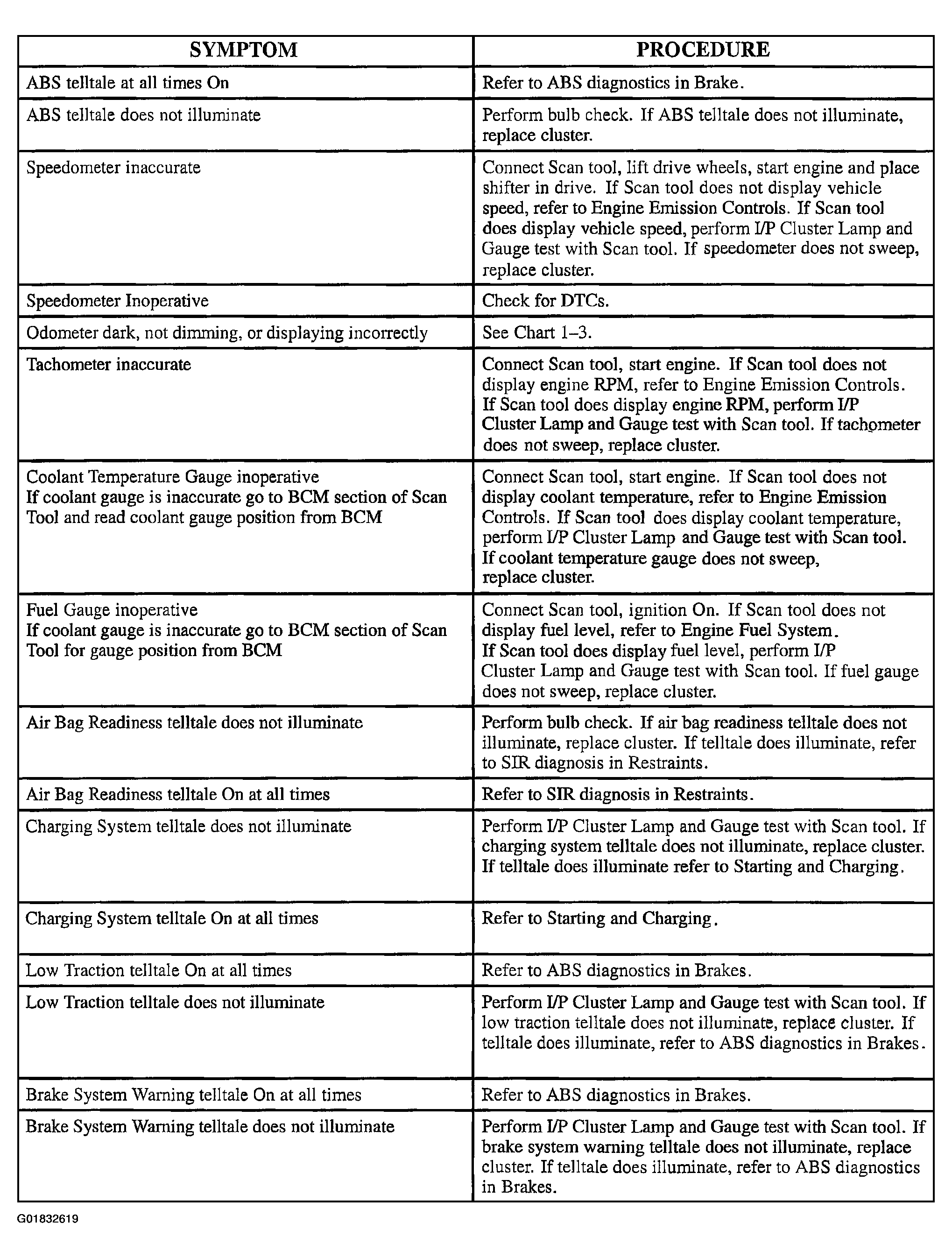

Fig 1: I/P Cluster Symptom Diagnosis Table (1 Of 3)
G01832619Courtesy of GENERAL MOTORS CORP.

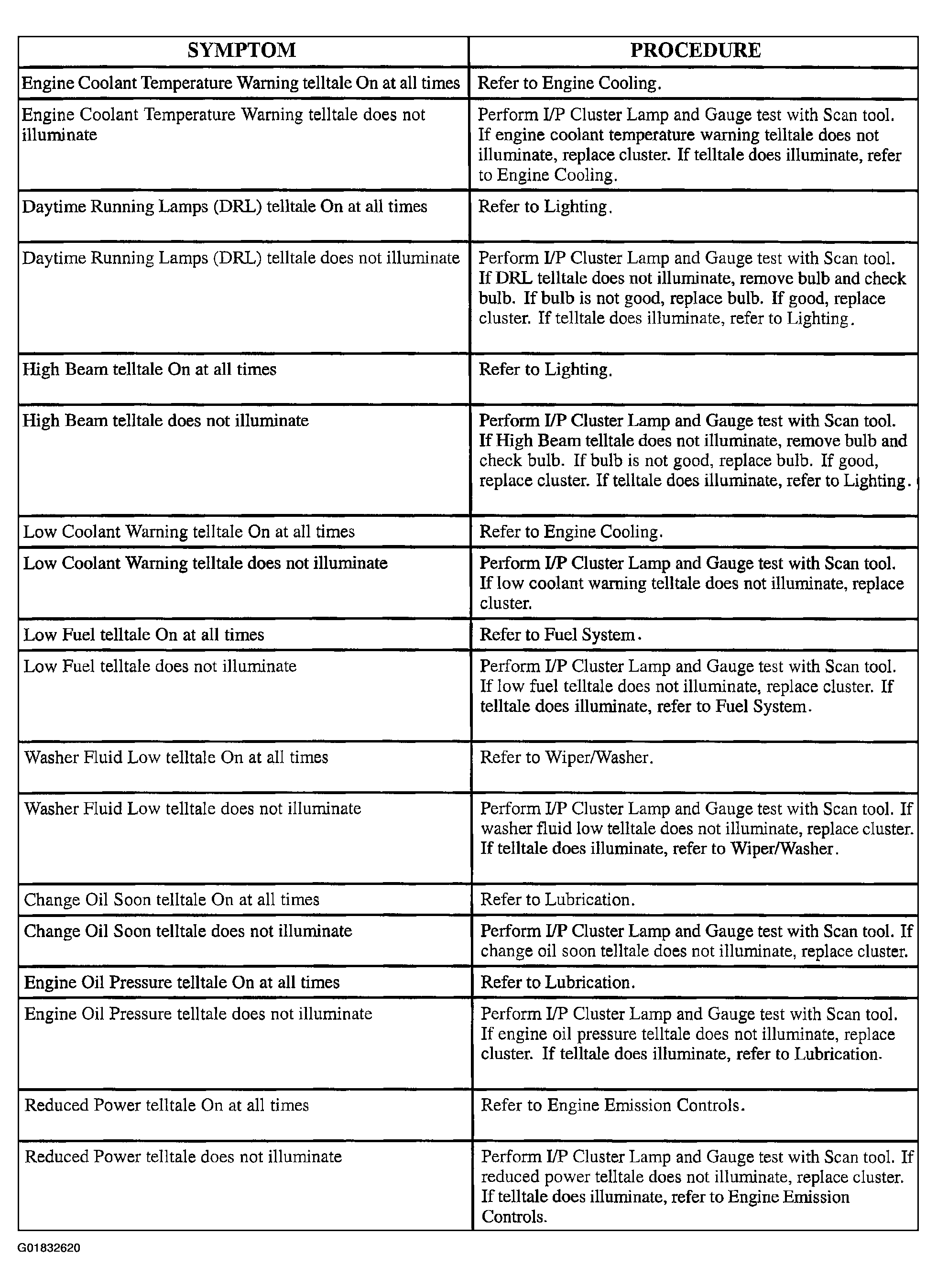

Fig 2: I/P Cluster Symptom Diagnosis Table (2 Of 3)
G01832620Courtesy of GENERAL MOTORS CORP.

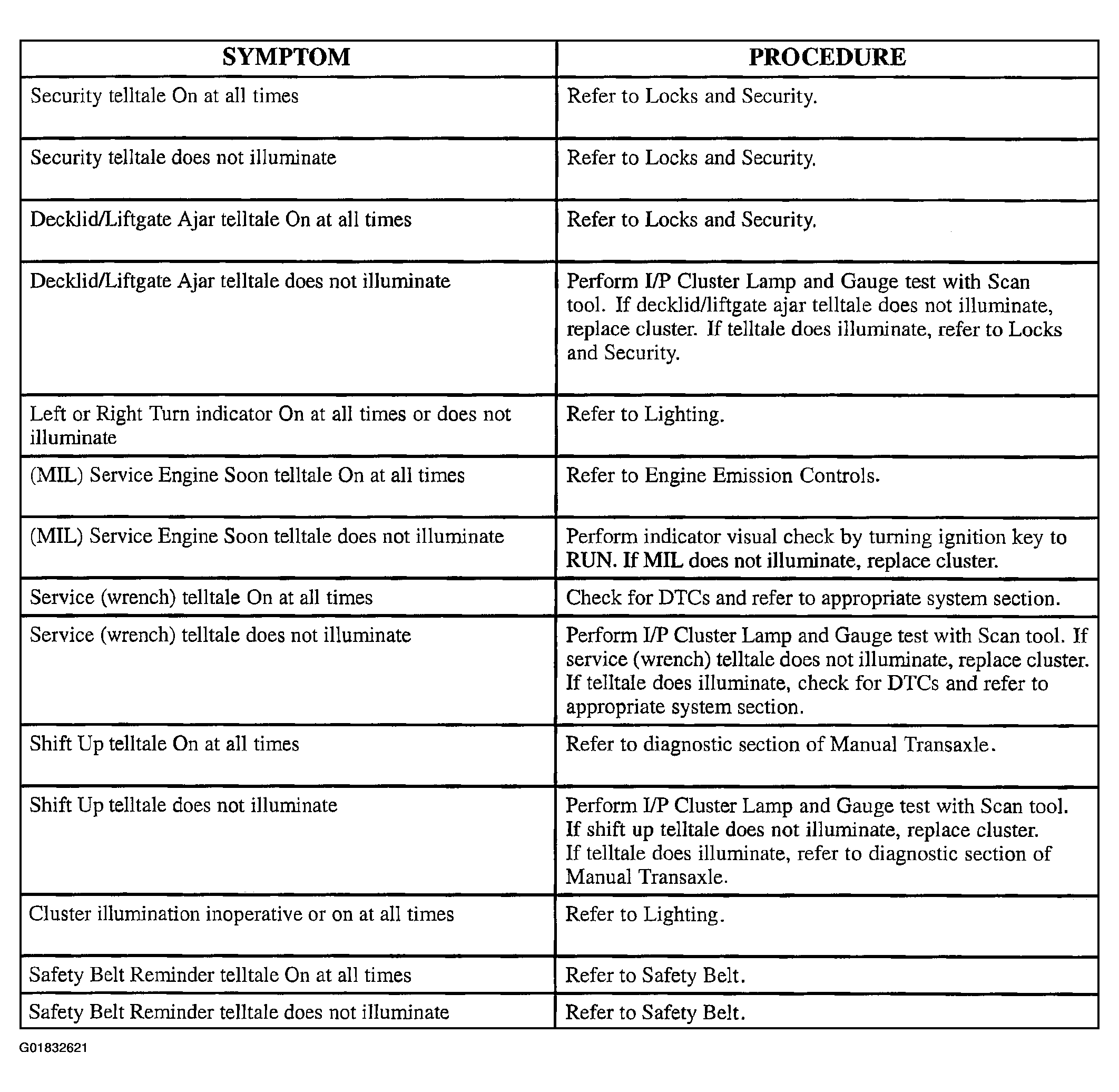

Fig 3: I/P Cluster Symptom Diagnosis Table (3 Of 3)
G01832621Courtesy of GENERAL MOTORS CORP.
