I/P Cluster Inputs

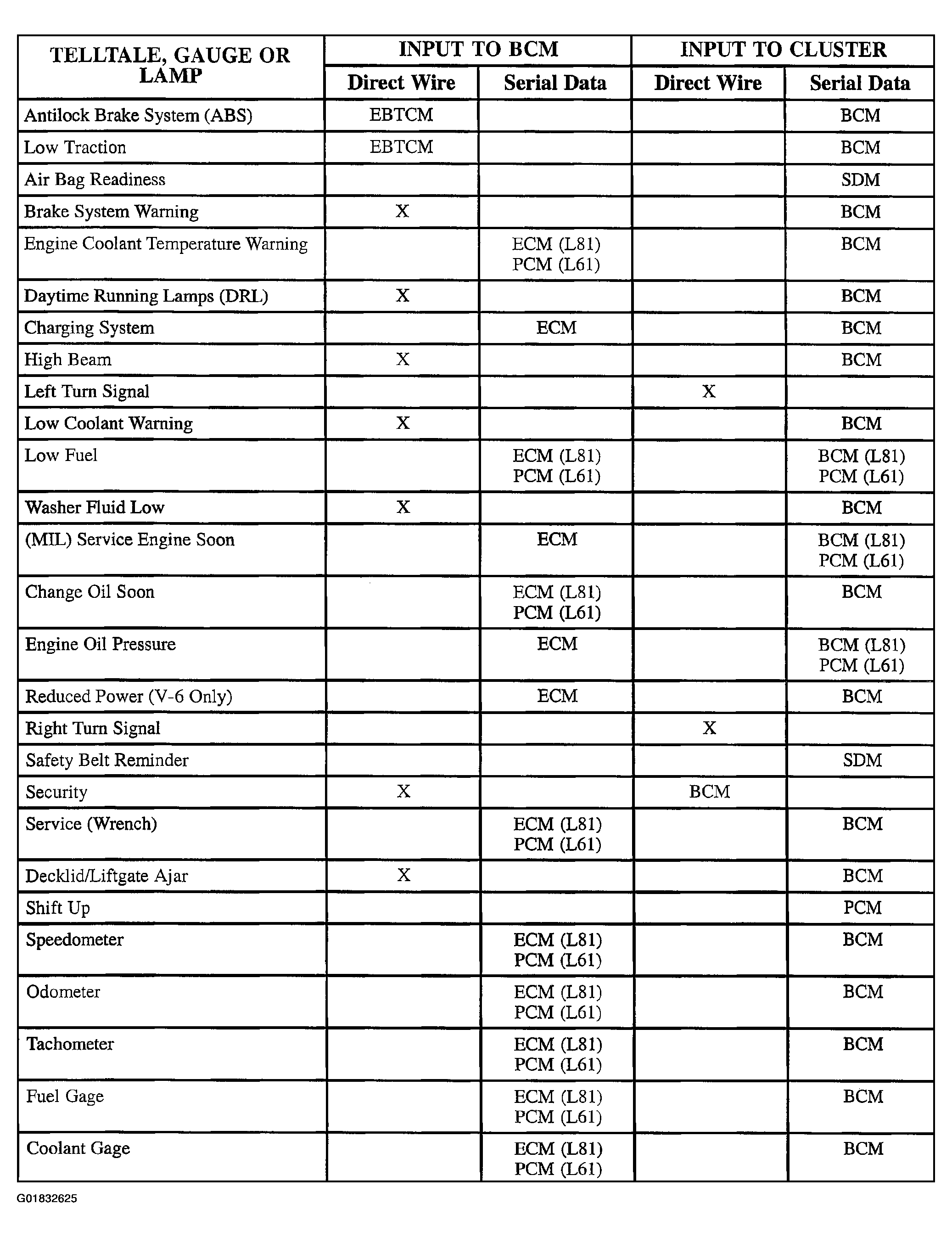

Fig 1: I/P Cluster Inputs Table (1 Of 2)

G01832625

Courtesy of GENERAL MOTORS CORP.

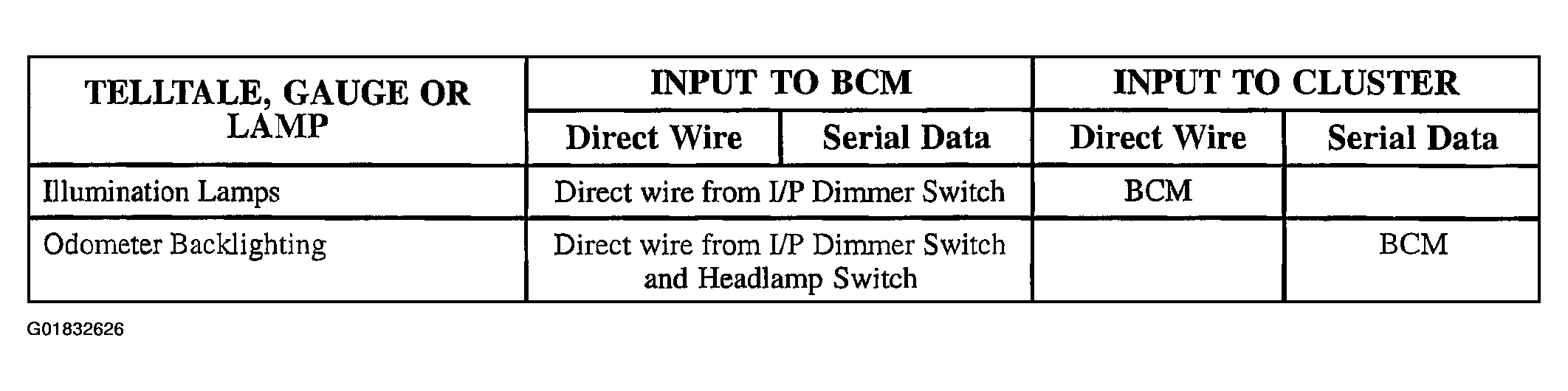

Fig 2: I/P Cluster Inputs Table (1 Of 2)

G01832626

Courtesy of GENERAL MOTORS CORP.
