Steering Column Trim Cover: Installation

  1. Install steering column trim cover and attachment fasteners. Tighten steering column trim cover attaching fasteners to 4 N.m (35 in lbs).

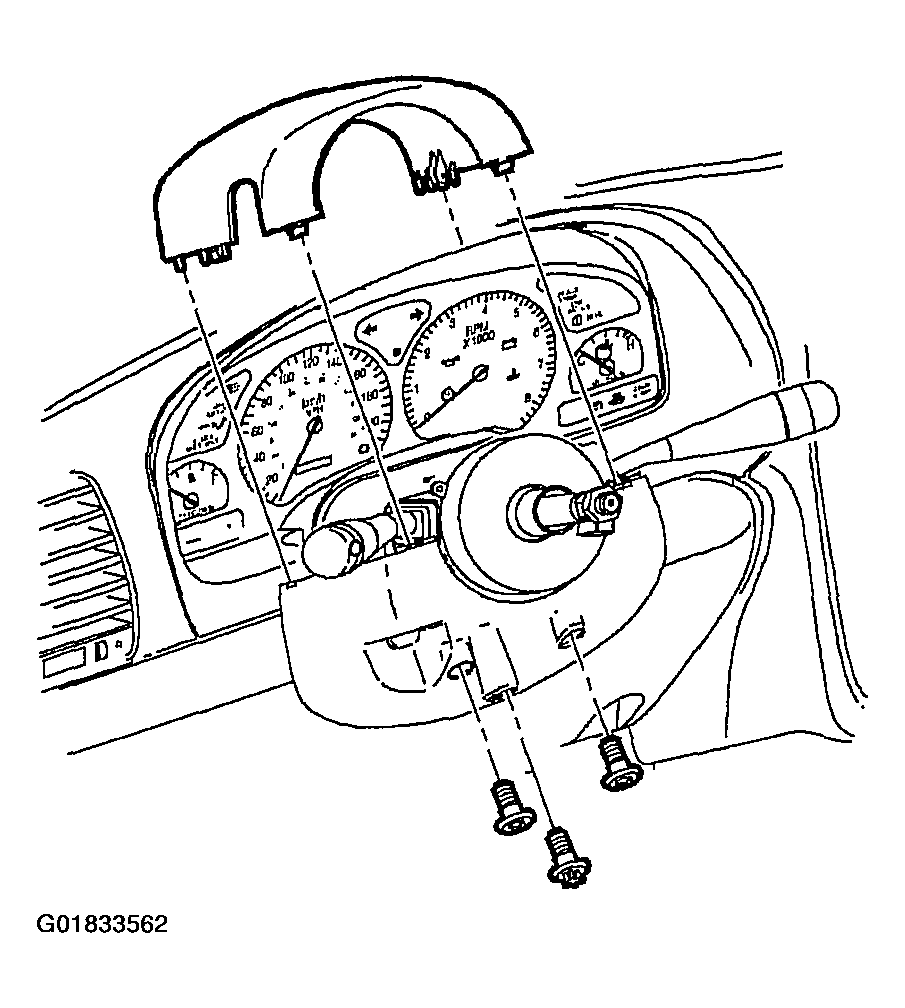

    2. Fig 1: Installing Steering Column Trim Cover
    G01833562Courtesy of GENERAL MOTORS CORP.
  2. Install ignition switch bezel.

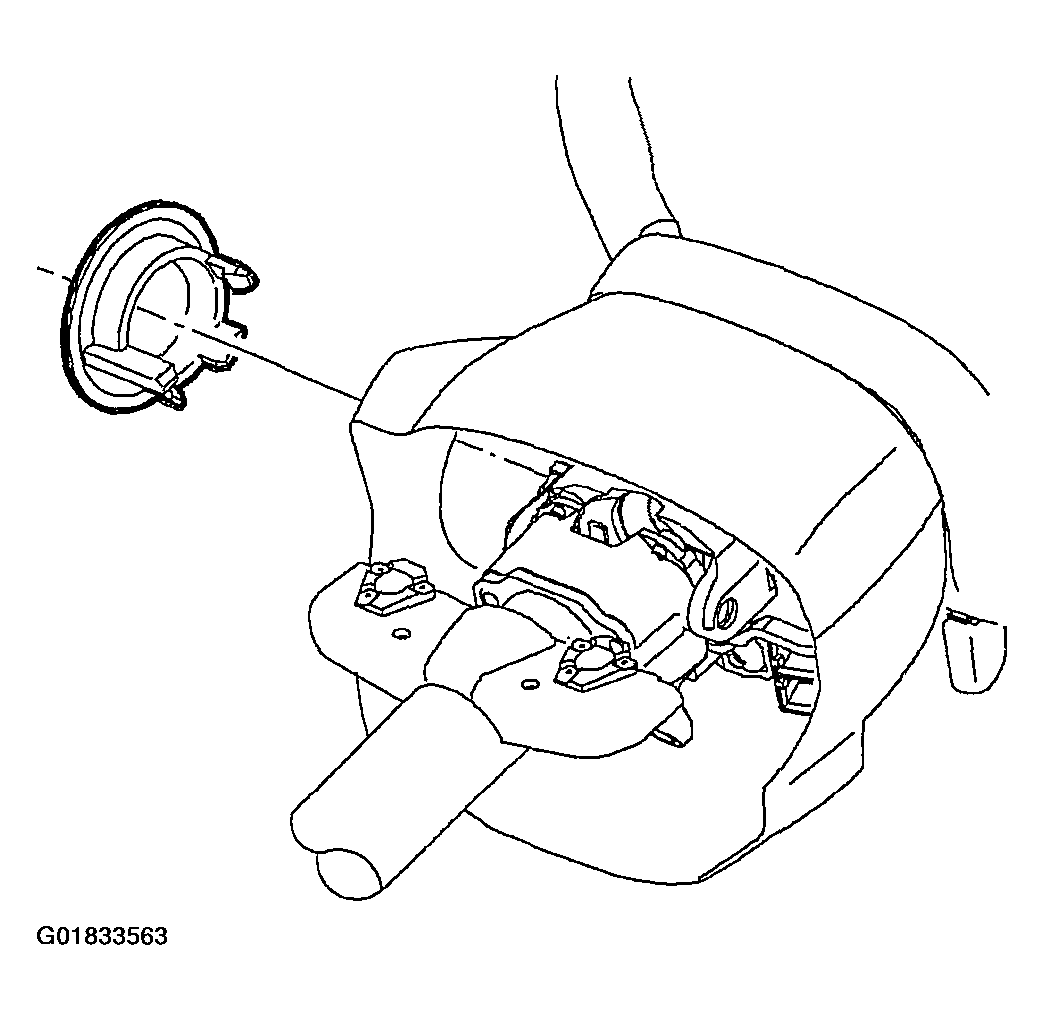

    3. Fig 2: Installing Ignition Switch Bezel
    G01833563Courtesy of GENERAL MOTORS CORP.
