Side Defroster Vents: Removal

  1. Slightly pinch the side defroster vent assembly to disengage attaching clips from instrument panel. (Right side shown; left side similar.)
  2. Remove defroster vent.

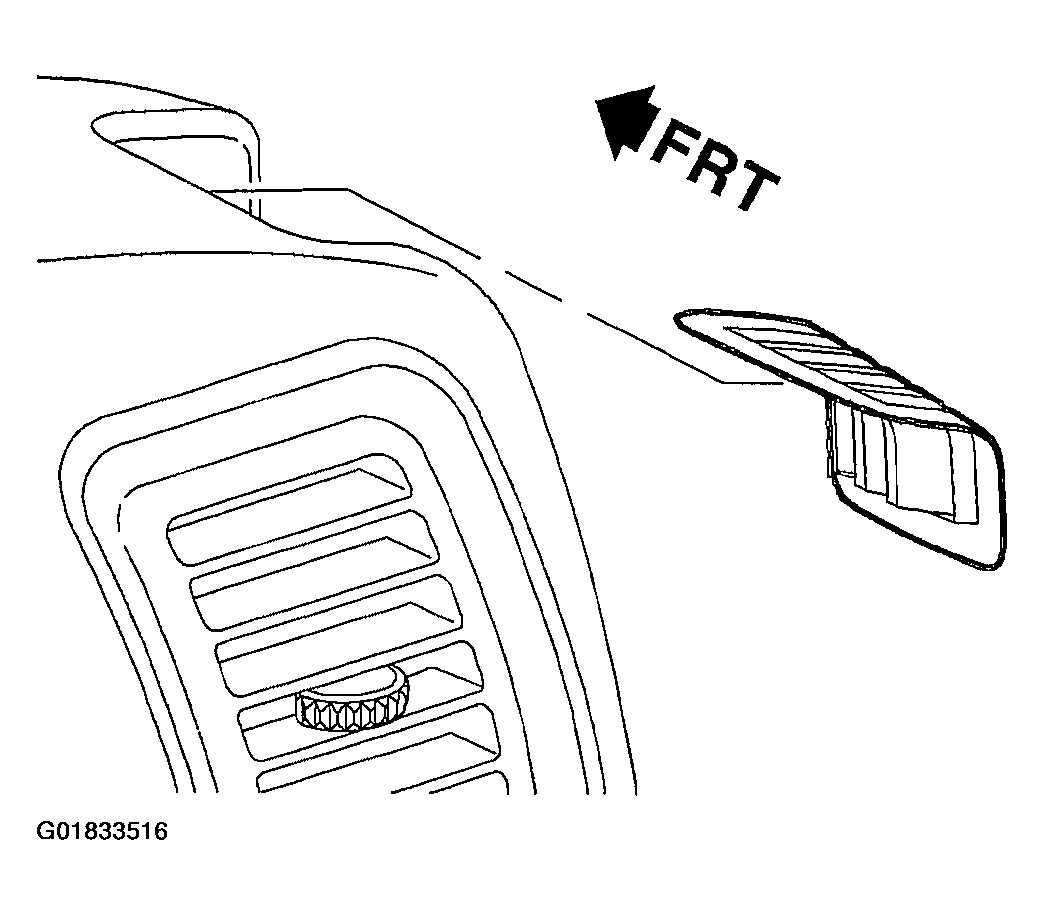

Fig 1: Removing Defroster Vent
G01833516Courtesy of GENERAL MOTORS CORP.
