Removal & Installation: Radio: Removal

  1. Remove center trim plate.
    1. Grab trim plate at A/C vent area and pull gently to disengage attaching clips.
    2. Tilt trim plate sideways.

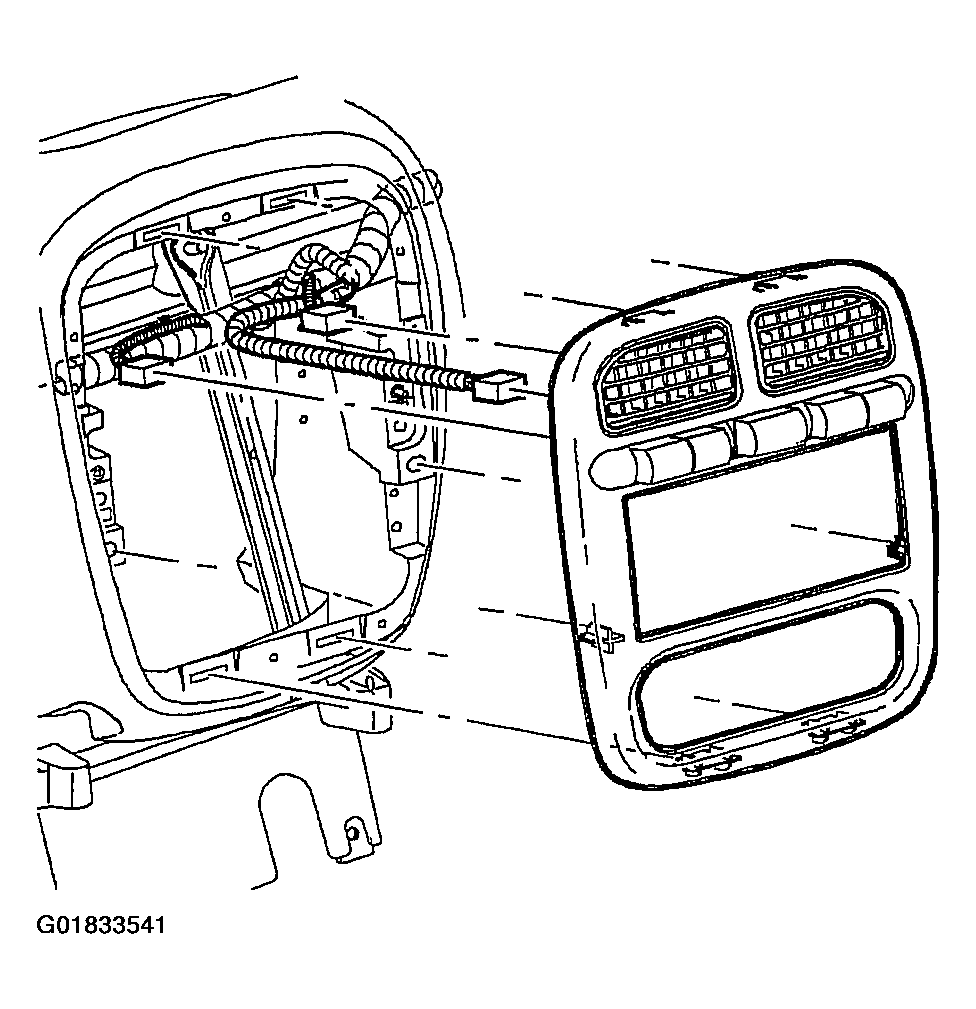

    2. Fig 1: Removing Center Trim Plate
    G01833541Courtesy of GENERAL MOTORS CORP.
  2. Remove radio fasteners.
  3. Pull radio out slightly to access rear of radio.
  4. Disconnect electrical connector(s), antenna, and radio ground strap spade terminal from rear of radio.
  5. Remove radio.

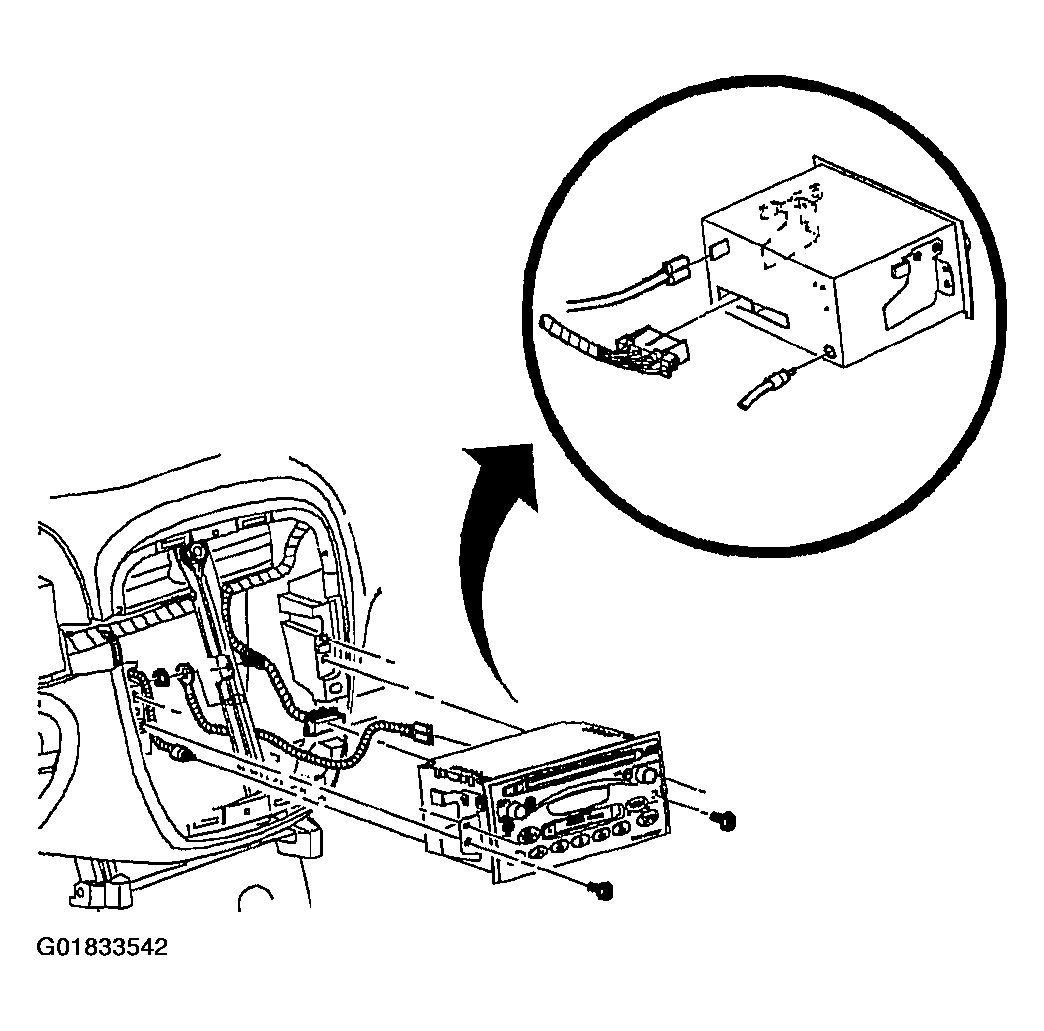

    6. Fig 2: Removing Radio
    G01833542Courtesy of GENERAL MOTORS CORP.
