Glove Compartment Lamp/Bulb: Removal

  1. Open glove compartment door.
  2. Pull on glove compartment lamp plunger to remove lamp assembly.
  3. Remove glove compartment lamp bulb.

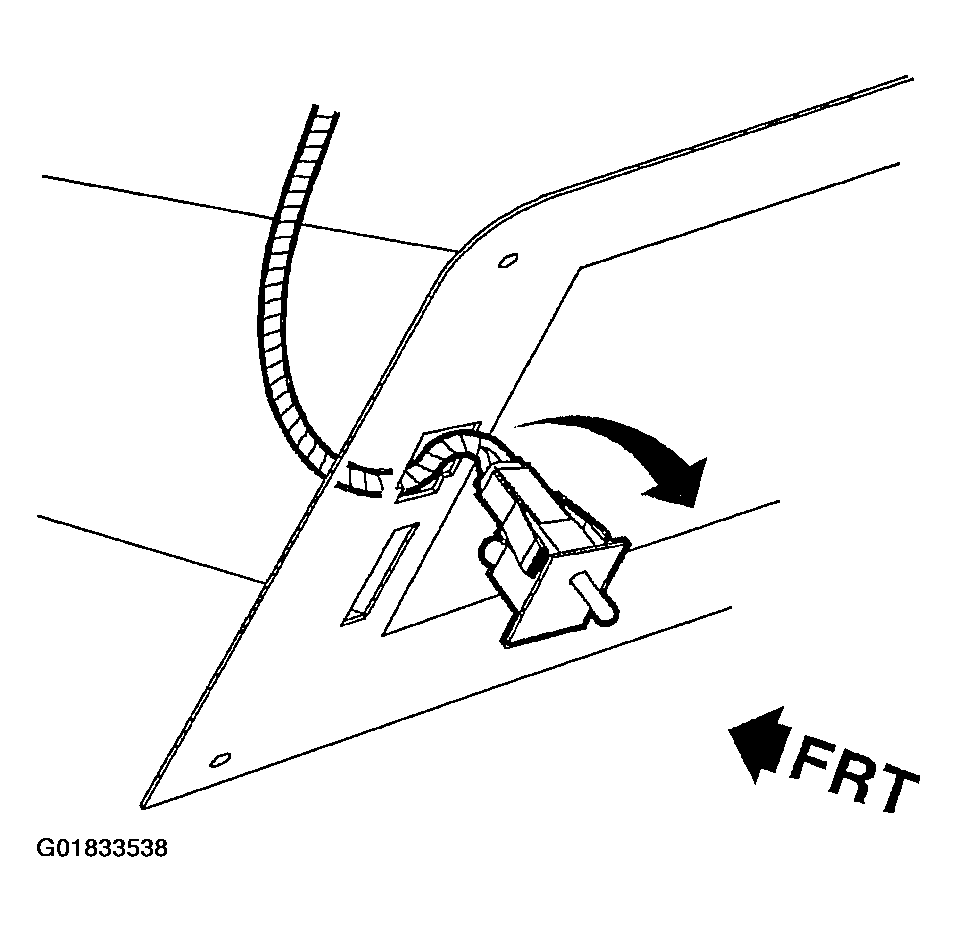

Fig 1: Removing Glove Compartment Lamp Bulb
G01833538Courtesy of GENERAL MOTORS CORP.
