Console Front Window Switch Cover: Removal

  1. Gently pull up on switch or cover to disengage attaching clips from console.
  2. For power windows, disconnect wiring harness from power window switch.

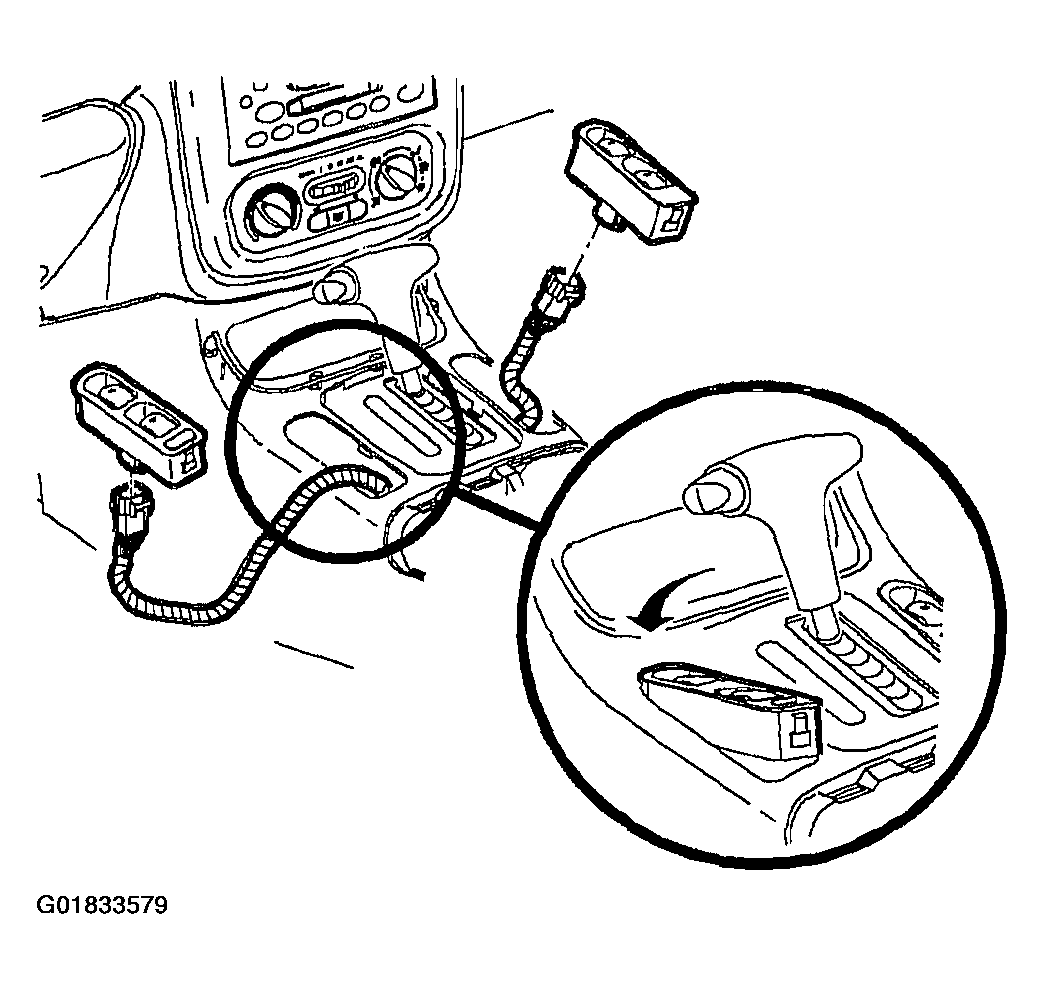

Fig 1: Disconnecting Wiring Harness From Power Window Switch
G01833579Courtesy of GENERAL MOTORS CORP.
