Console Front Ash Tray: Removal

  1. Remove center console. Refer to CONSOLE  procedure.

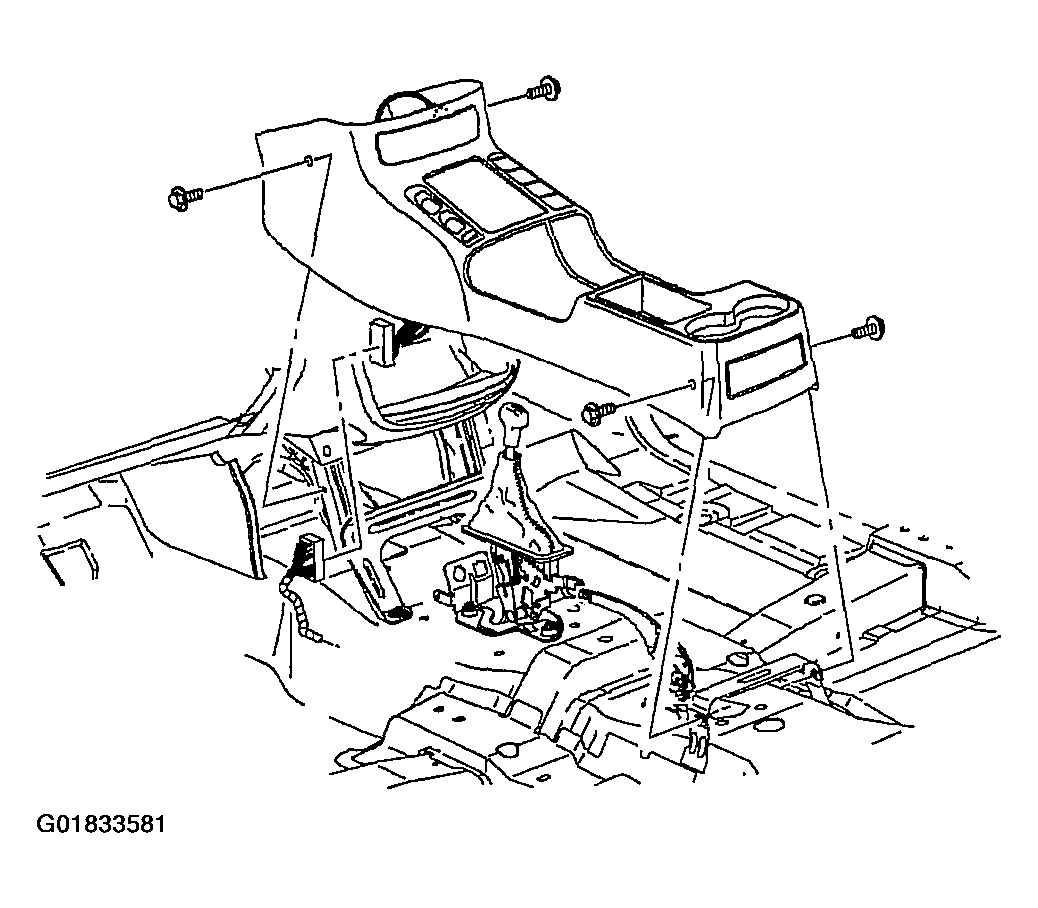

    2. Fig 1: Removing Center Console
    G01833581Courtesy of GENERAL MOTORS CORP.
  2. Disconnect lighter harness from lighter.
  3. Remove front ash tray fasteners and remove ash tray assembly.
