Console Cup Holder: Installation

  1. Position cup holder to console and push firmly at snap locations to engage cup holder to console.
  2. Position park brake boot to console and push firmly at attaching locations to engage park brake boot to console.

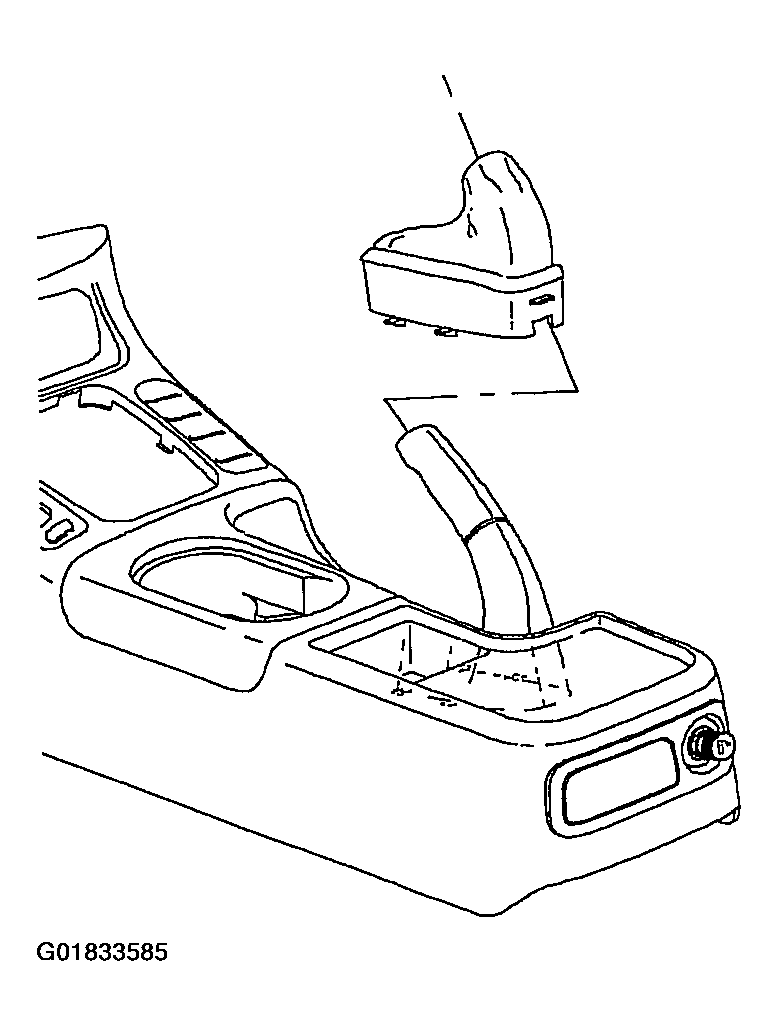

    3. Fig 1: Engaging Park Brake Boot To Console
    G01833585Courtesy of GENERAL MOTORS CORP.
