Cigar Lighter/Auxiliary Power: Installation

  1. Reconnect connector.
  2. Push illumination ring and receptacle (tether cap and receptacle) assembly back into console.

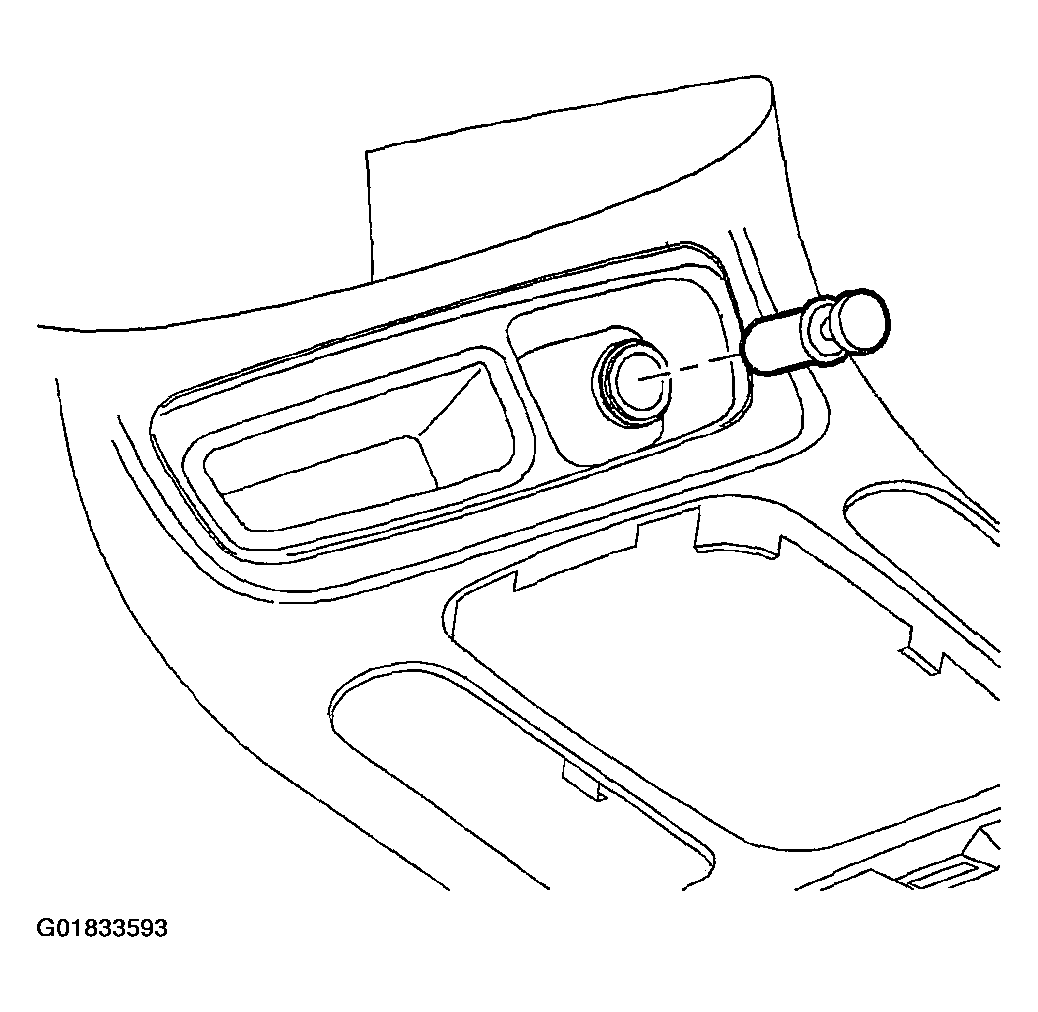

    3. Fig 1: Installing Receptacle Assembly
    G01833593Courtesy of GENERAL MOTORS CORP.
  3. Insert cigar lighter element (put tether cap back into receptacle).

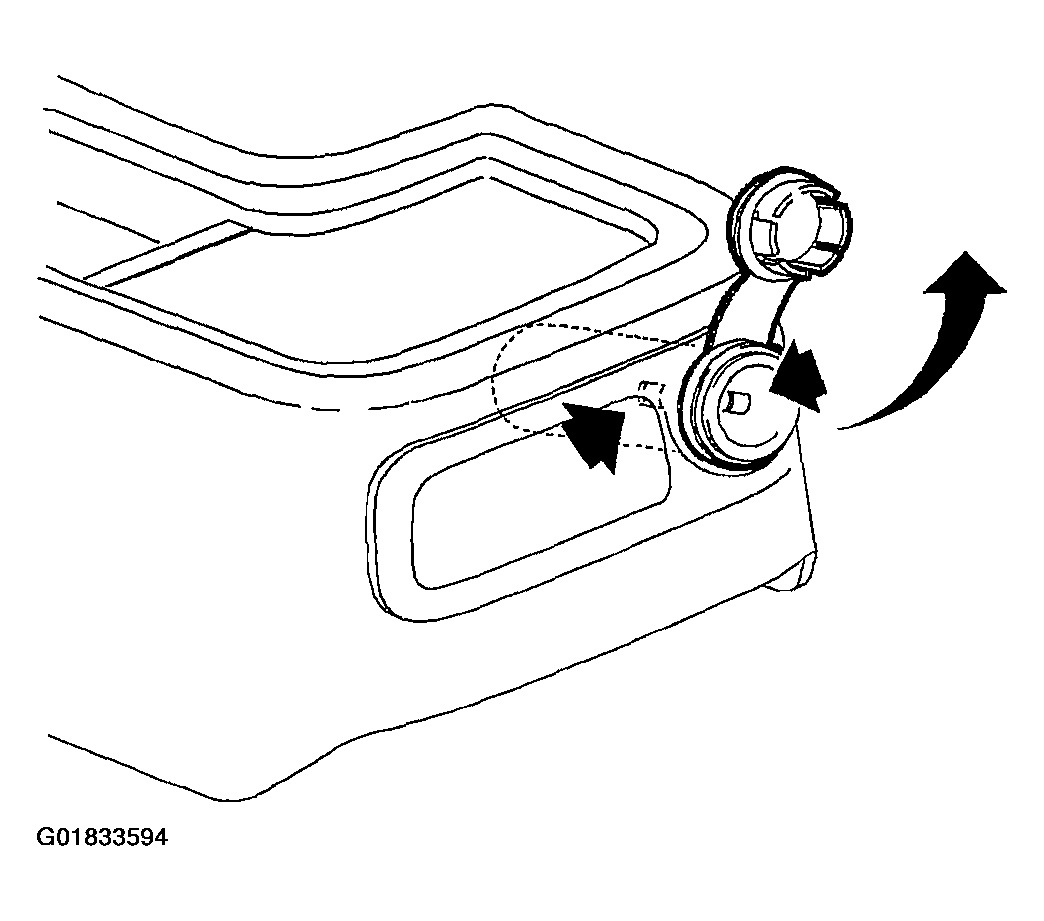

    4. Fig 2: Inserting Cigar Lighter Element
    G01833594Courtesy of GENERAL MOTORS CORP.
  4. Install lighter fuse (auxiliary fuse).
