Center Trim Plate: Removal

  1. Grab trim plate at A/C vent area and pull gently to disengage attaching clips.
  2. Tilt trim plate sideways, disconnect electrical harnesses and remove trim plate.

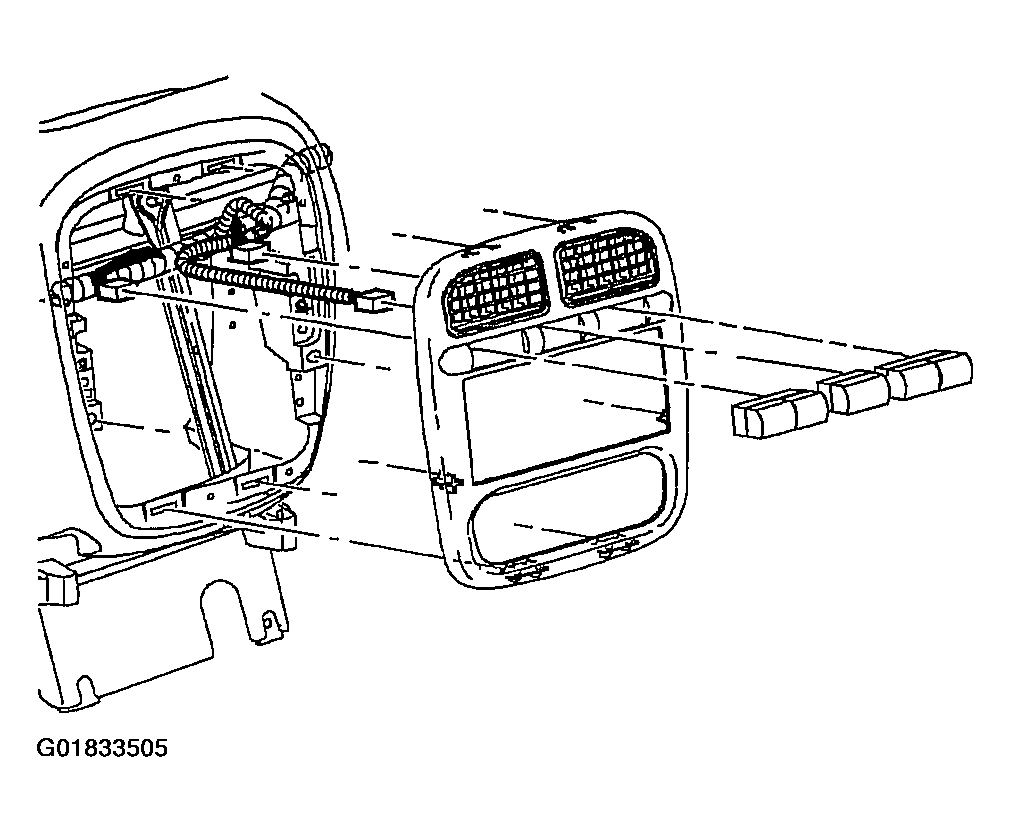

Fig 1: Removing Trim Plate
G01833505Courtesy of GENERAL MOTORS CORP.
