Arm Rest: Removal

  1. Open arm rest lid to expose arm rest fasteners at bottom of arm rest.
  2. Remove fasteners and remove arm rest.

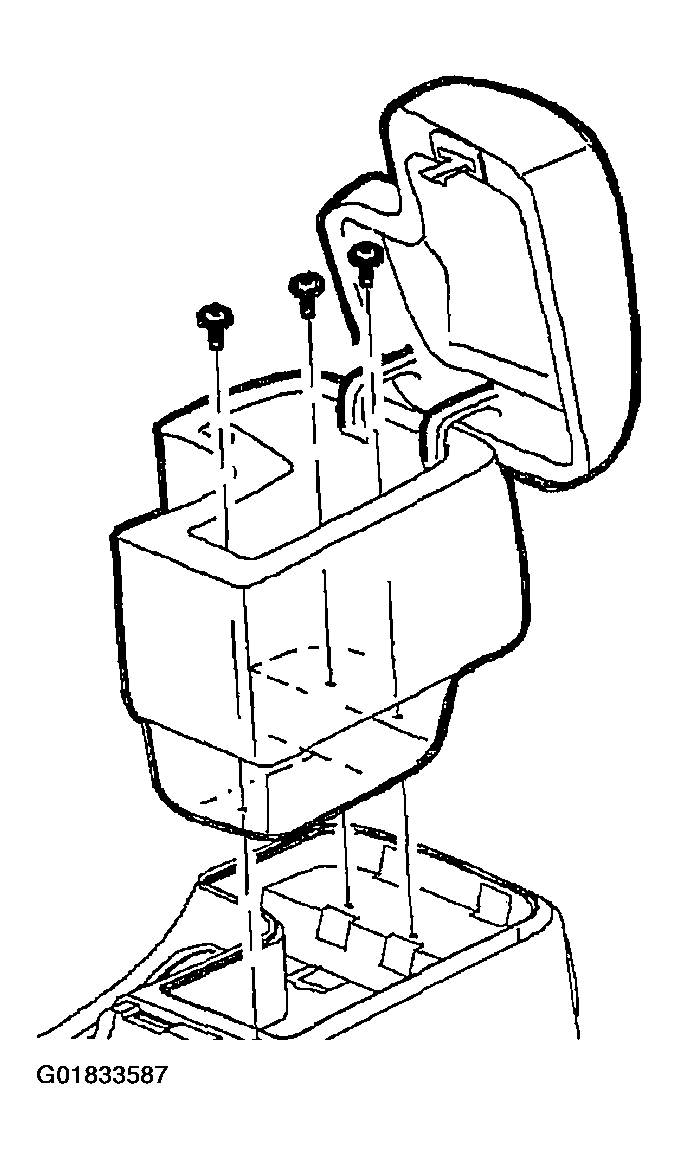

Fig 1: Removing Arm Rest
G01833587Courtesy of GENERAL MOTORS CORP.
