A/C Vent - Left Side: Removal

  1. Remove left side lower I/P closeout panel (hush panel) retainers and let closeout panel hang loose.

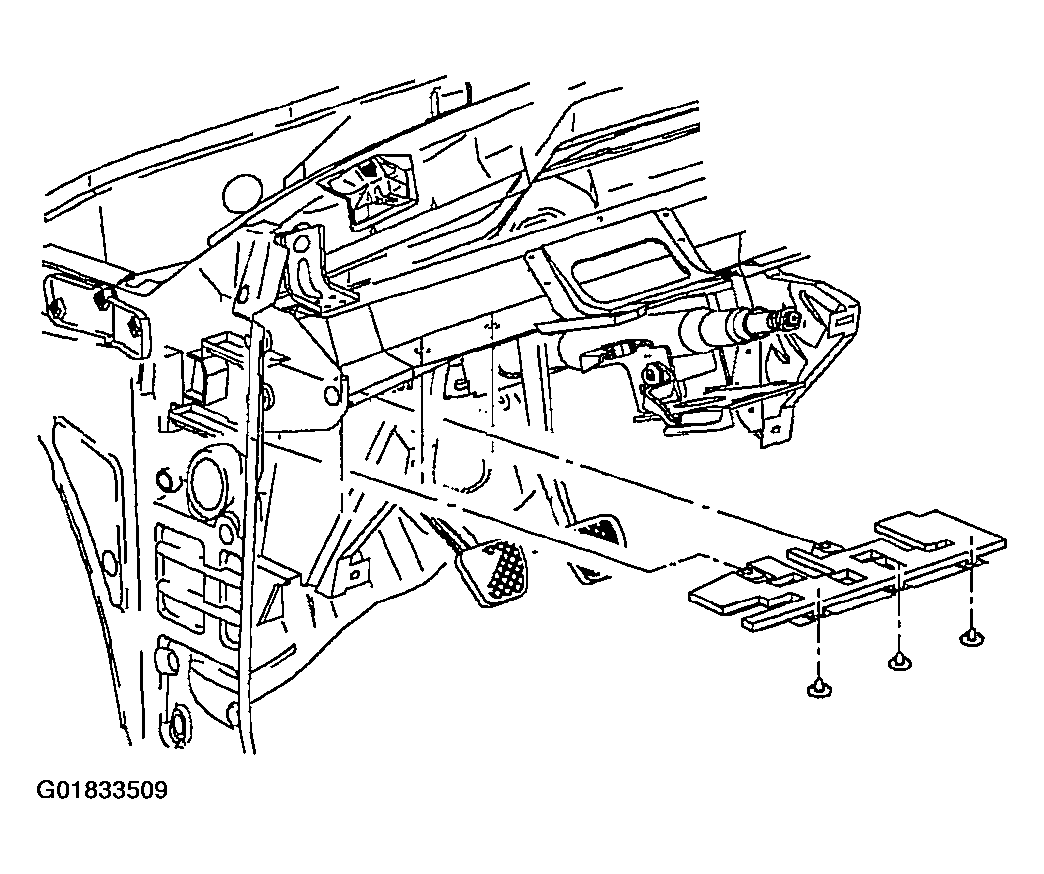

    2. Fig 1: Removing Left Side Lower I/P Closeout Panel (Hush Panel) Retainers
    G01833509Courtesy of GENERAL MOTORS CORP.
  2. Remove I/P filler (knee bolster) by pulling at attaching clip locations.

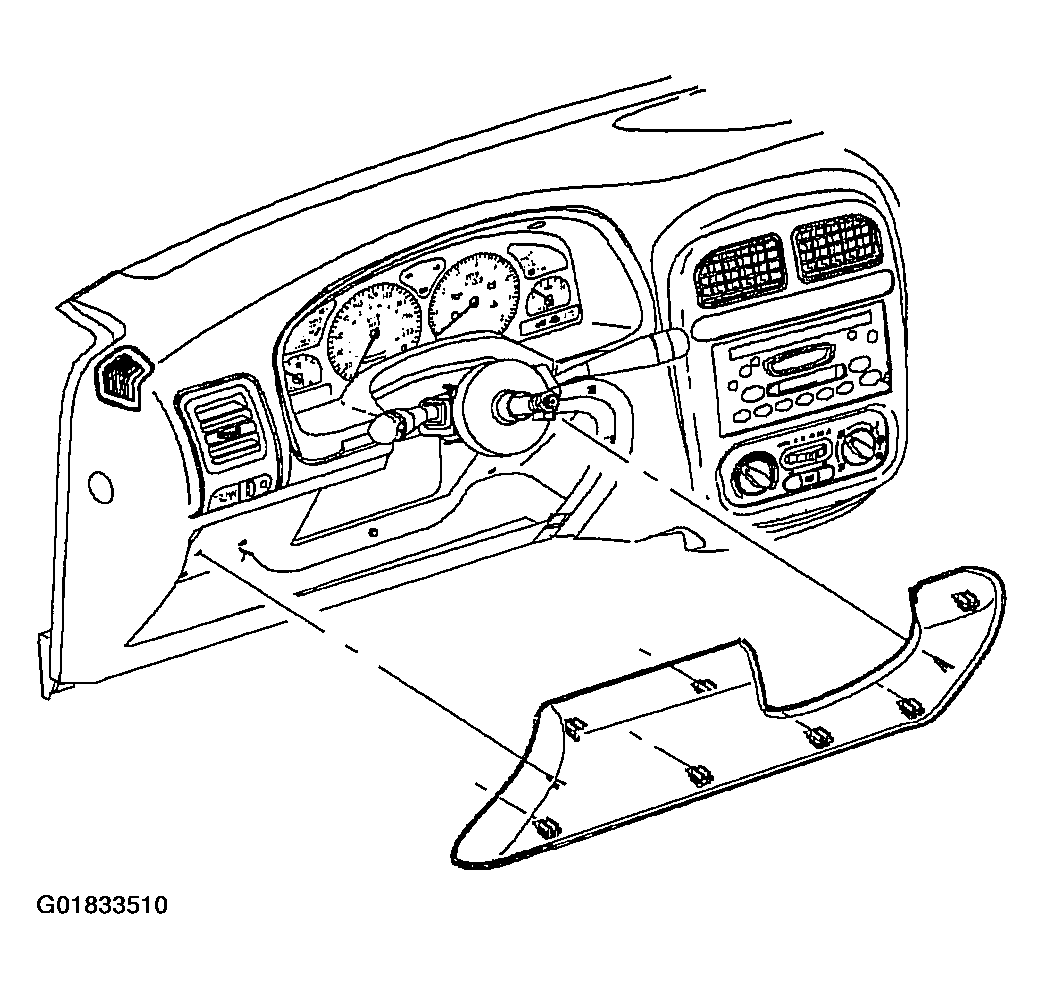

    3. Fig 2: Removing I/P Filler (Knee Bolster)
    G01833510Courtesy of GENERAL MOTORS CORP.
  3. Remove left side A/C vent fastener and partially remove vent.

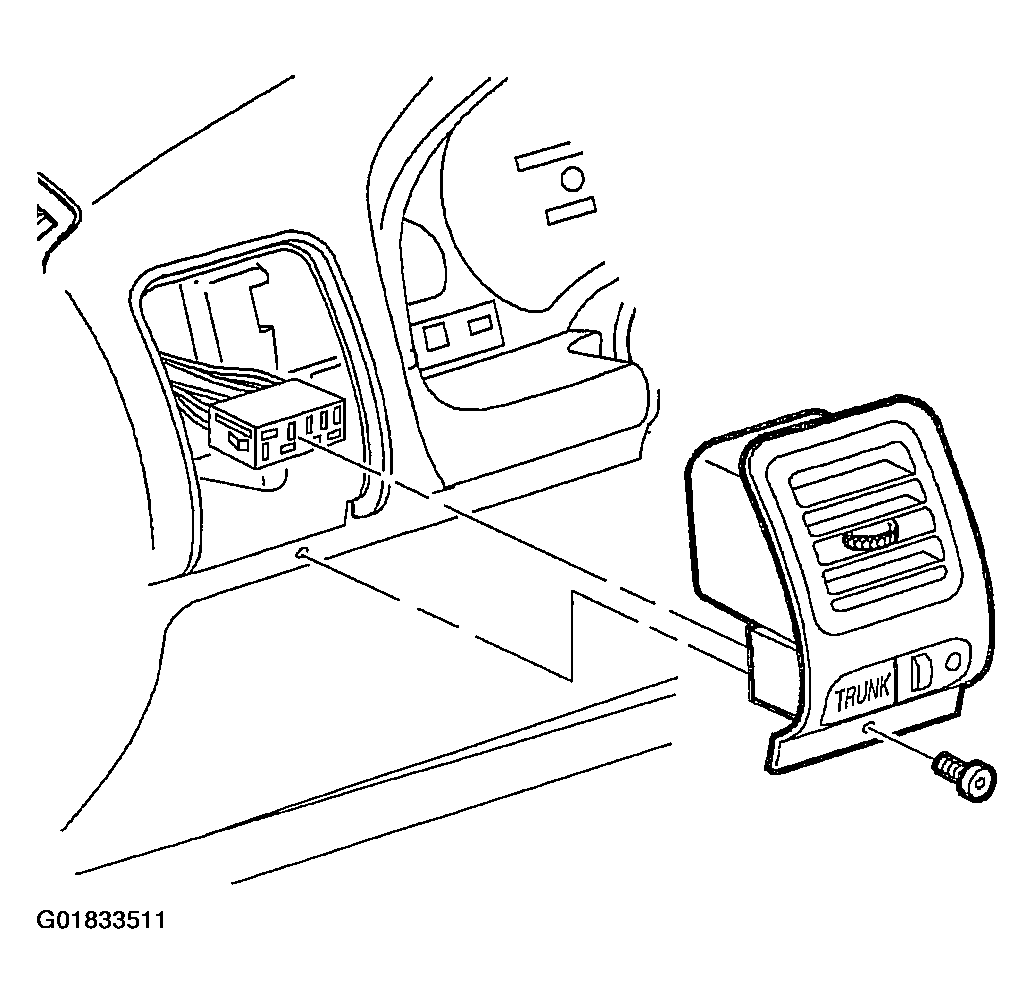

    4. Fig 3: Removing Vent
    G01833511Courtesy of GENERAL MOTORS CORP.
  4. Disconnect electrical connection from interior lamp dimmer switch.
