Home >> Saturn >> 2002 >> L100 >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel, Gauges & Console >> Diagnostics >> Cigar Lighter/Auxiliary Power Schematic

Cigar Lighter/Auxiliary Power Schematic

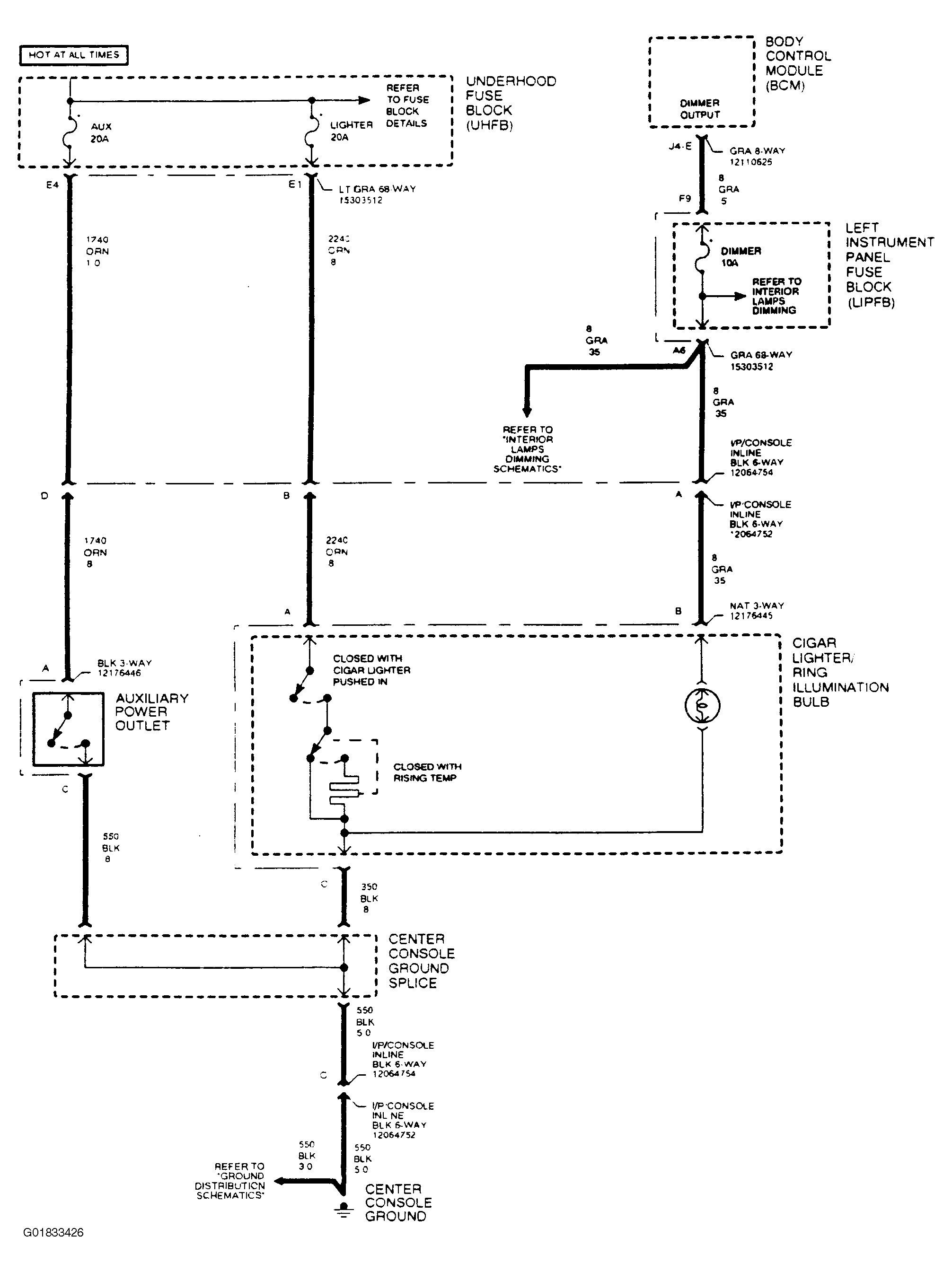

Fig 1: Cigar Lighter/Auxiliary Power Schematic

G01833426

Courtesy of GENERAL MOTORS CORP.
