Cigar Lighter/Auxiliary Power Connector Face Views

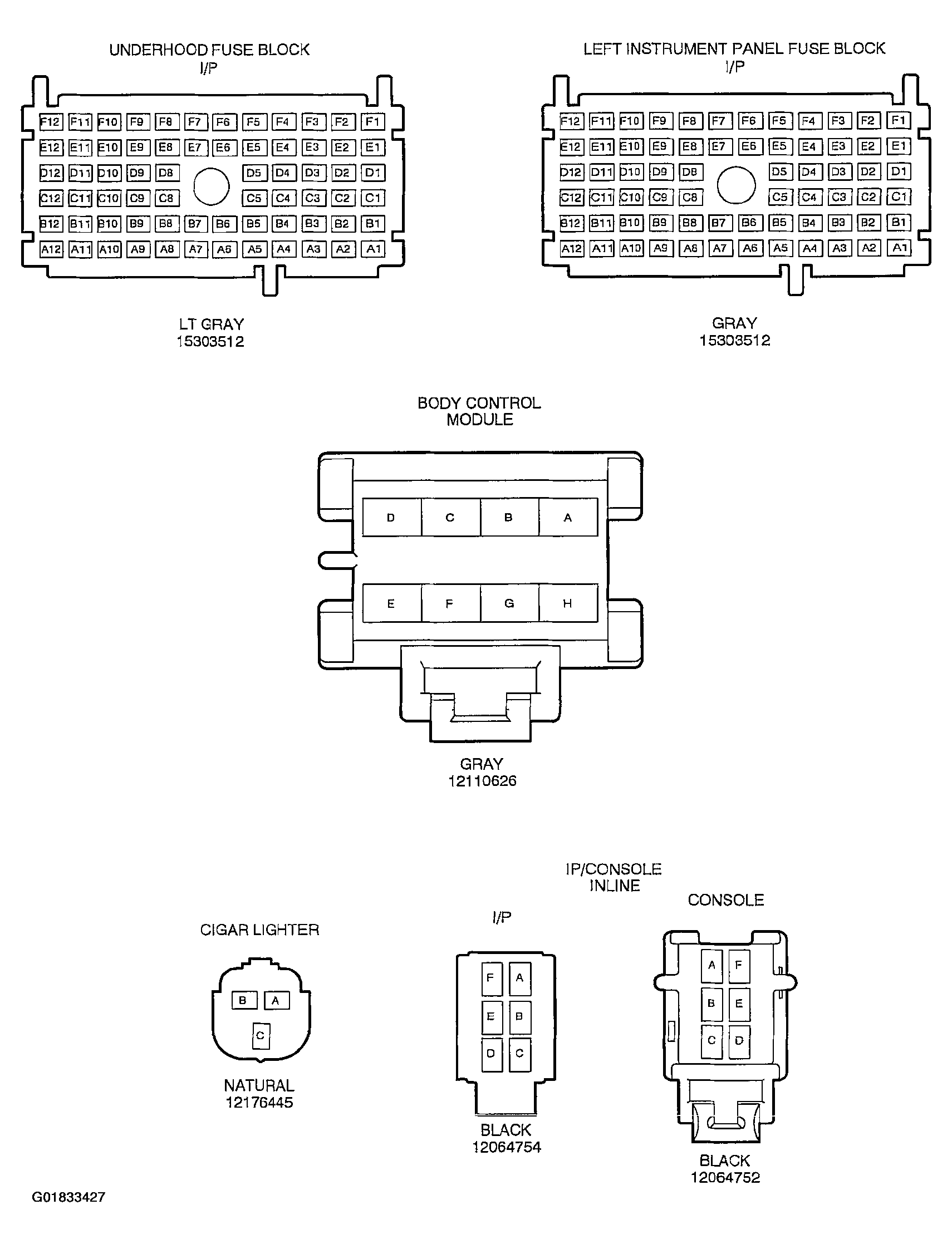

Fig 1: Cigar Lighter/Auxiliary Power Connector Face Views

G01833427

Courtesy of GENERAL MOTORS CORP.
