Removal & Installation Head Impact - Coupe

  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

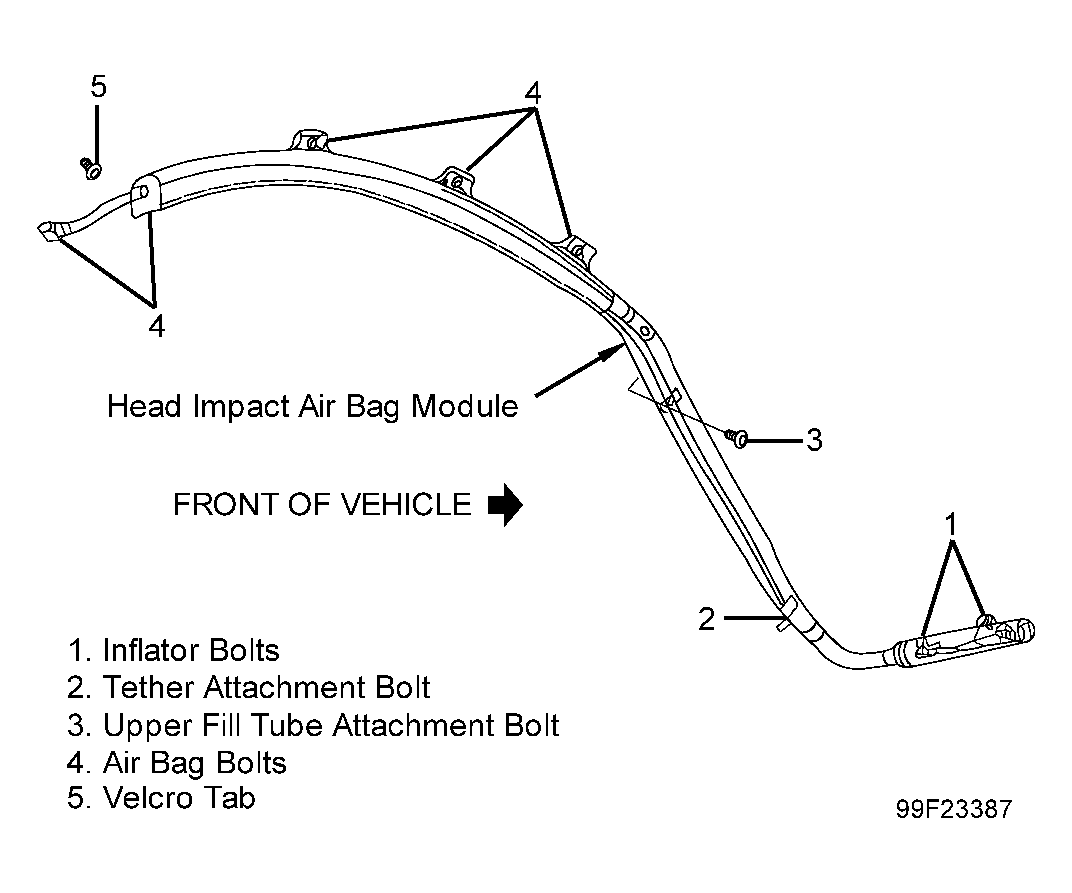

  2. Remove headliner. See HEADLINER . Loosen inflator bolts and lift to detach from cross car beam. See Figure. Remove tether attachment bolt and upper fill tube bolt. Remove air bag bolts. On driver-side only, remove air bag from air bag channel by disengaging straps.
  3. Remove air bag housing from Velcro® tab. Remove head impact air bag module from vehicle.
  4. To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Check system for proper operation. See SYSTEM OPERATION CHECK .
