Steering Wheel: Installation

Remove tape or Yellow tab from SIR coil assembly. Align marks on steering wheel hub and steering shaft. Tighten steering wheel nut to specification. See TORQUE SPECIFICATIONS  . To install remaining components, reverse removal procedure.

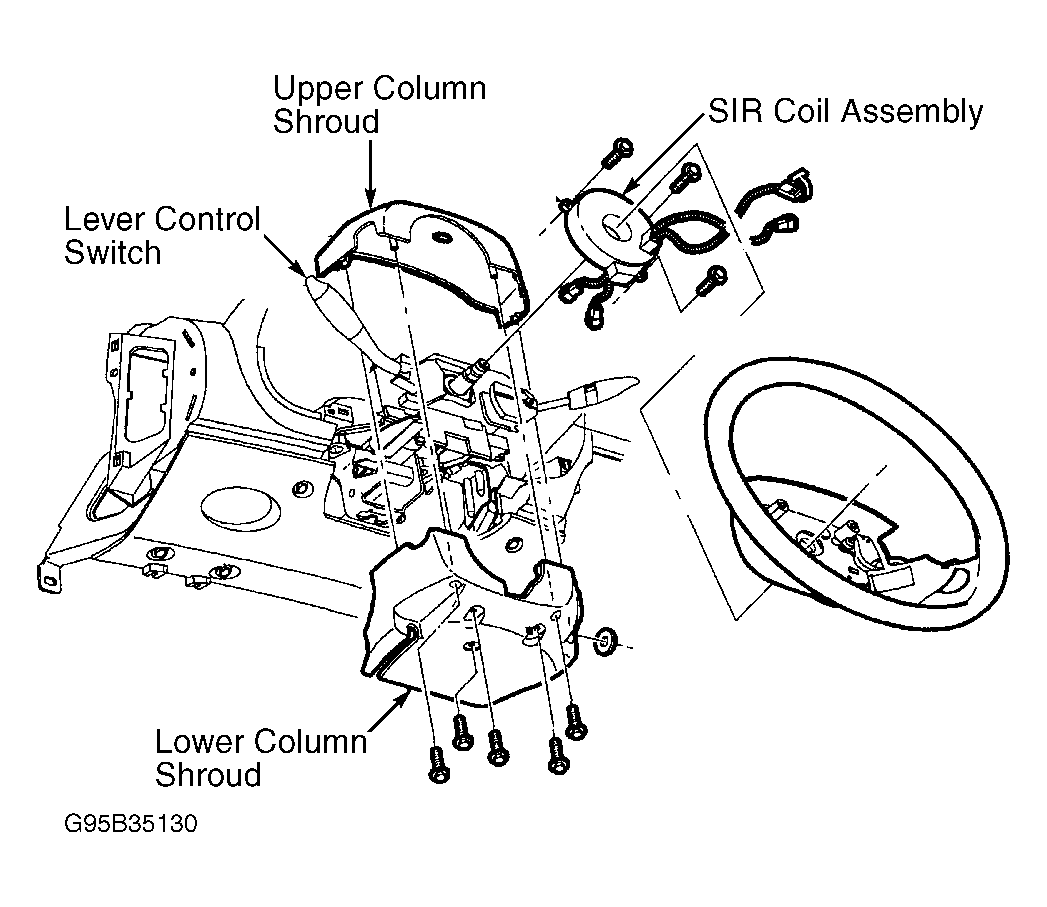

Fig 1: Exploded View Of Steering Column Upper Components
G95B35130Courtesy of GENERAL MOTORS CORP.
