Harsh Shifts, No Shifts &/Or No TCC Operation With Transaxle Related DTCS Set (Replace Transaxle Connector & Harness) (01-T-09)

Publication date: 2001-03-01
Reference number: 01-T-09

HARSH SHIFTS, NO SHIFTS &/OR NO TCC OPERATION WITH TRANSAXLE RELATED DTCS SET (REPLACE TRANSAXLE CONNECTOR & HARNESS)

HARSH SHIFTS, NO SHIFTS &/OR NO TCC OPERATION WITH TRANSAXLE RELATED DTCS SET (REPLACE TRANSAXLE CONNECTOR & HARNESS)

TECHNICAL SERVICE BULLETIN

Reference Number(s): 01-T-09, Date of Issue:  March, 2001
SATURN: 1994-2001 S-Series Vehicles with Automatic Transaxles (RPO MP6/MP7)
SECTION: 01-Transaxle

DESCRIPTION

Harsh Shifts, No Shifts &/Or No TCC Operation With Transaxle Related DTCS Set (Replace Transaxle Connector & Harness)

Some customers may comment about harsh transaxle shifting and/or erratic transaxle shifting. One or more diagnostic trouble codes (DTCs) may have set. The Malfunction Indicator Lamp may or may not be illuminated depending on what DTC is set.

BULLETIN CONTENT

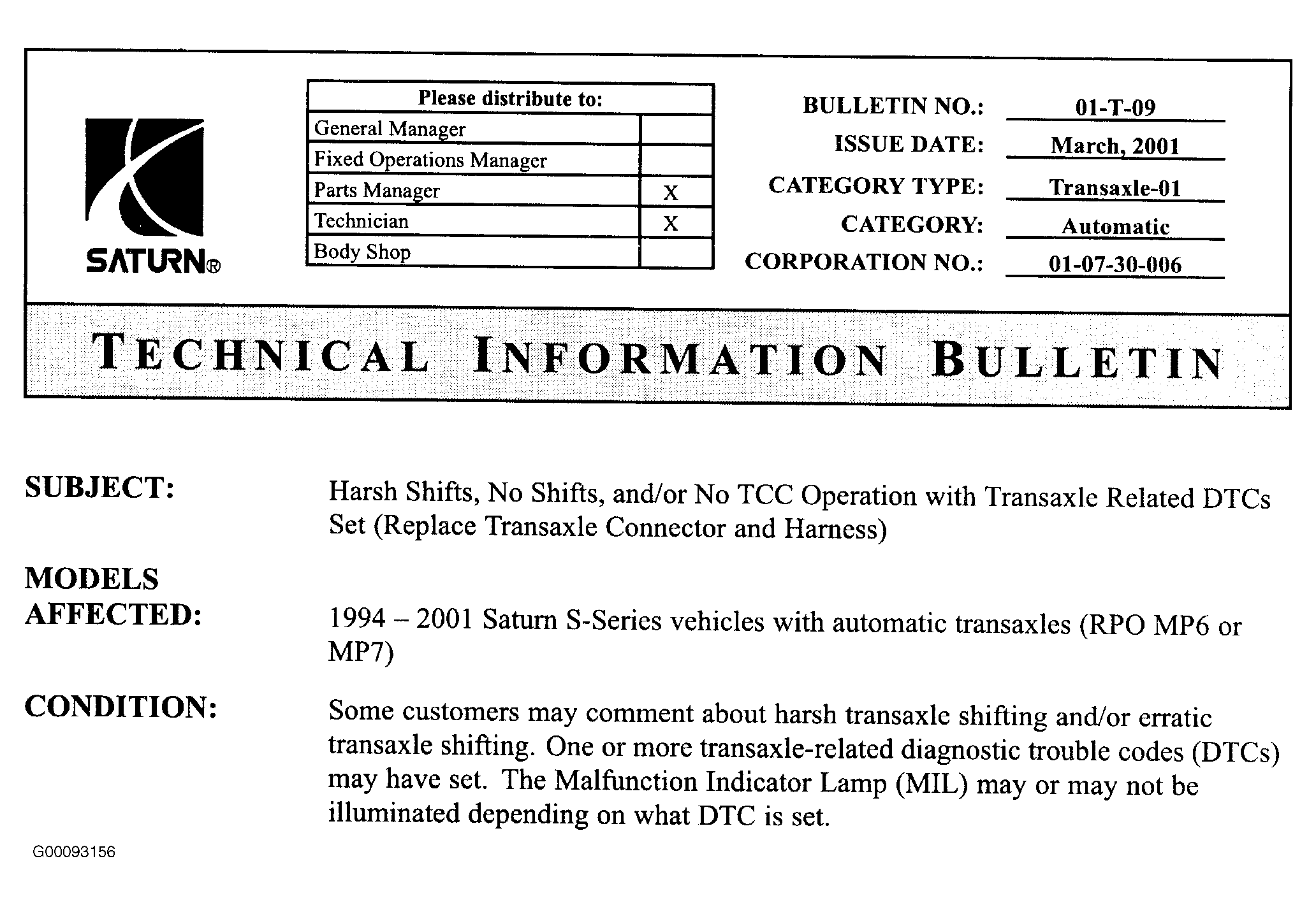

Fig 1: Page 1 of Bulletin
G00093156

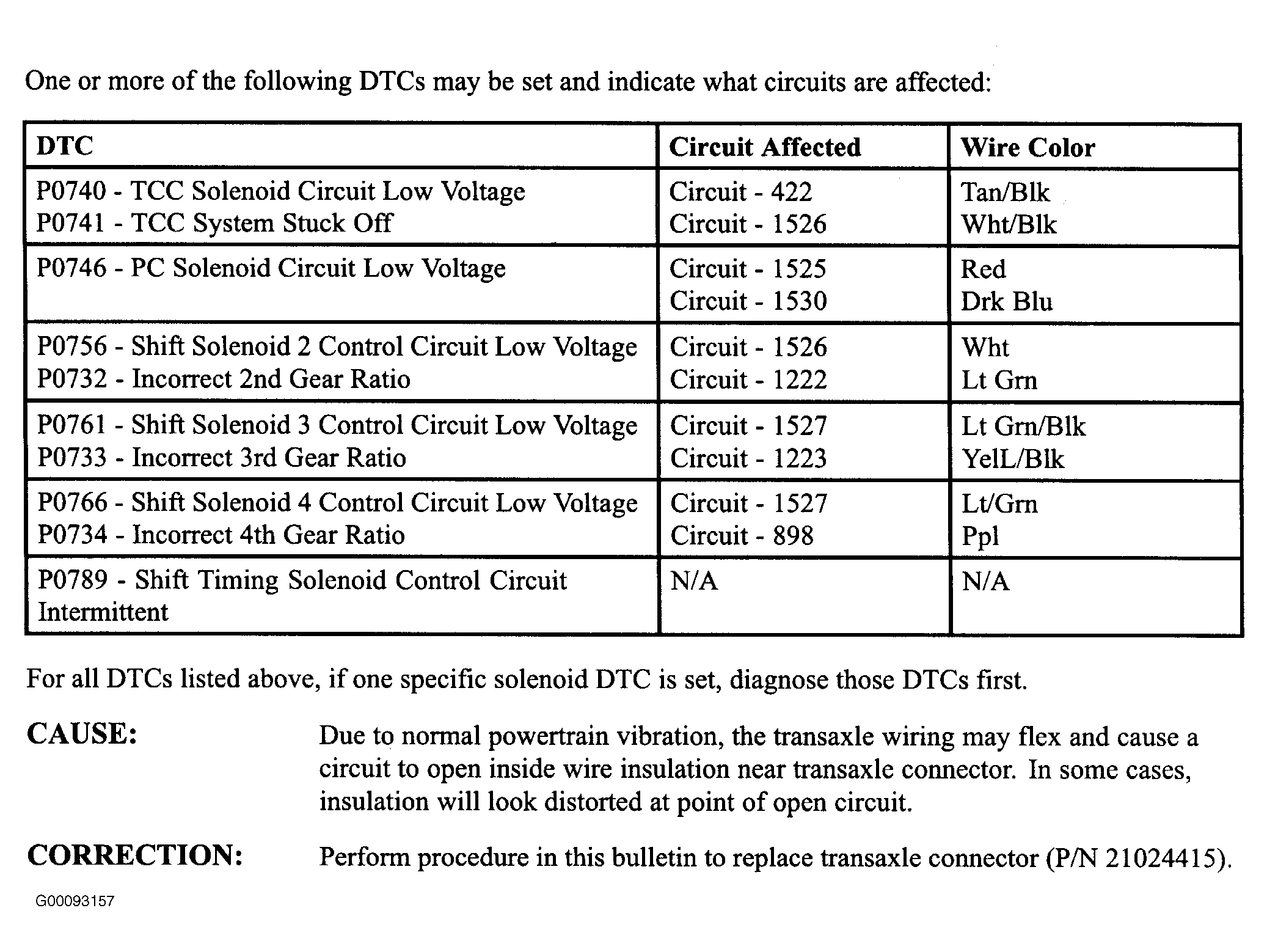

Fig 2: Page 2 of Bulletin
G00093157

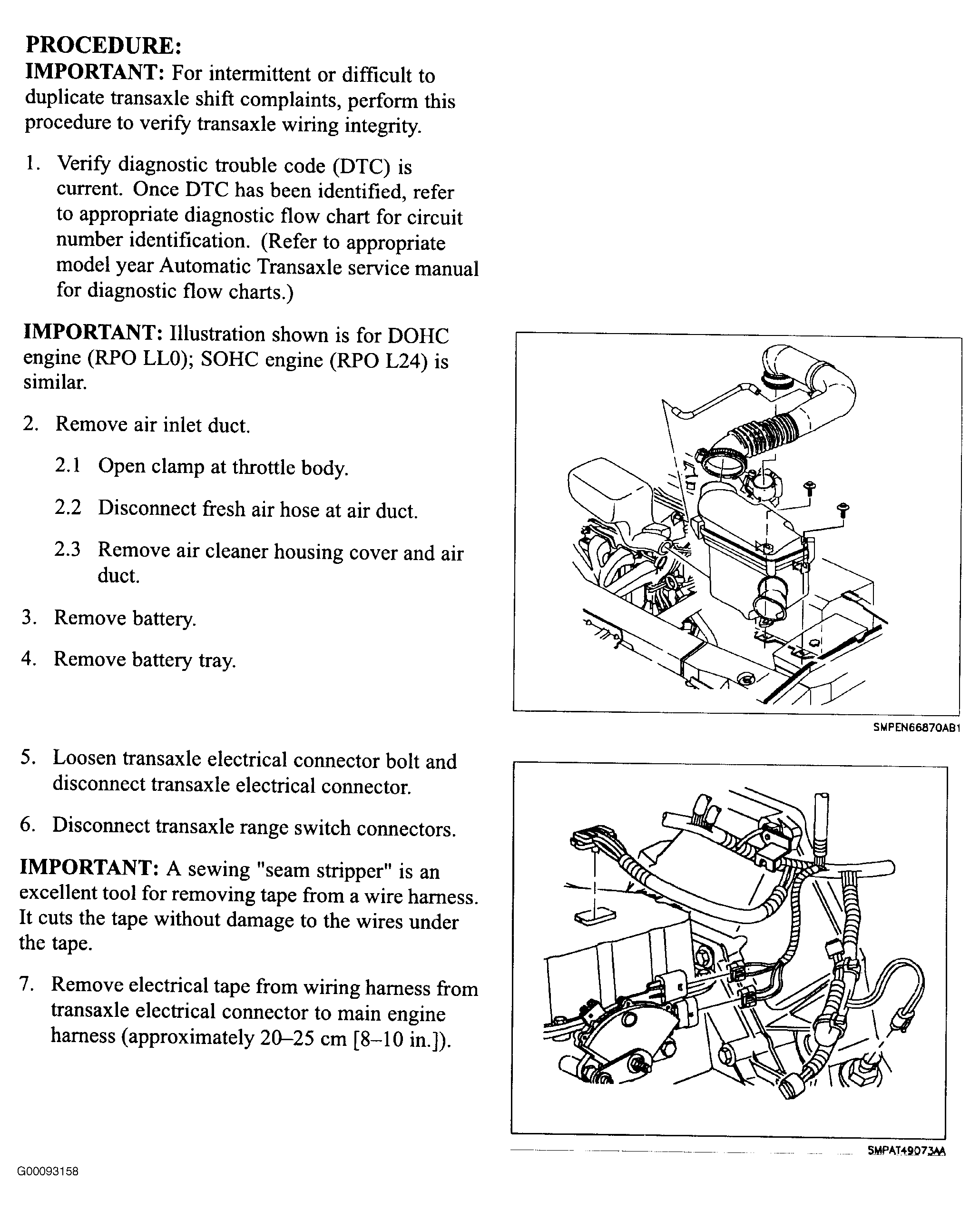

Fig 3: Page 3 of Bulletin
G00093158

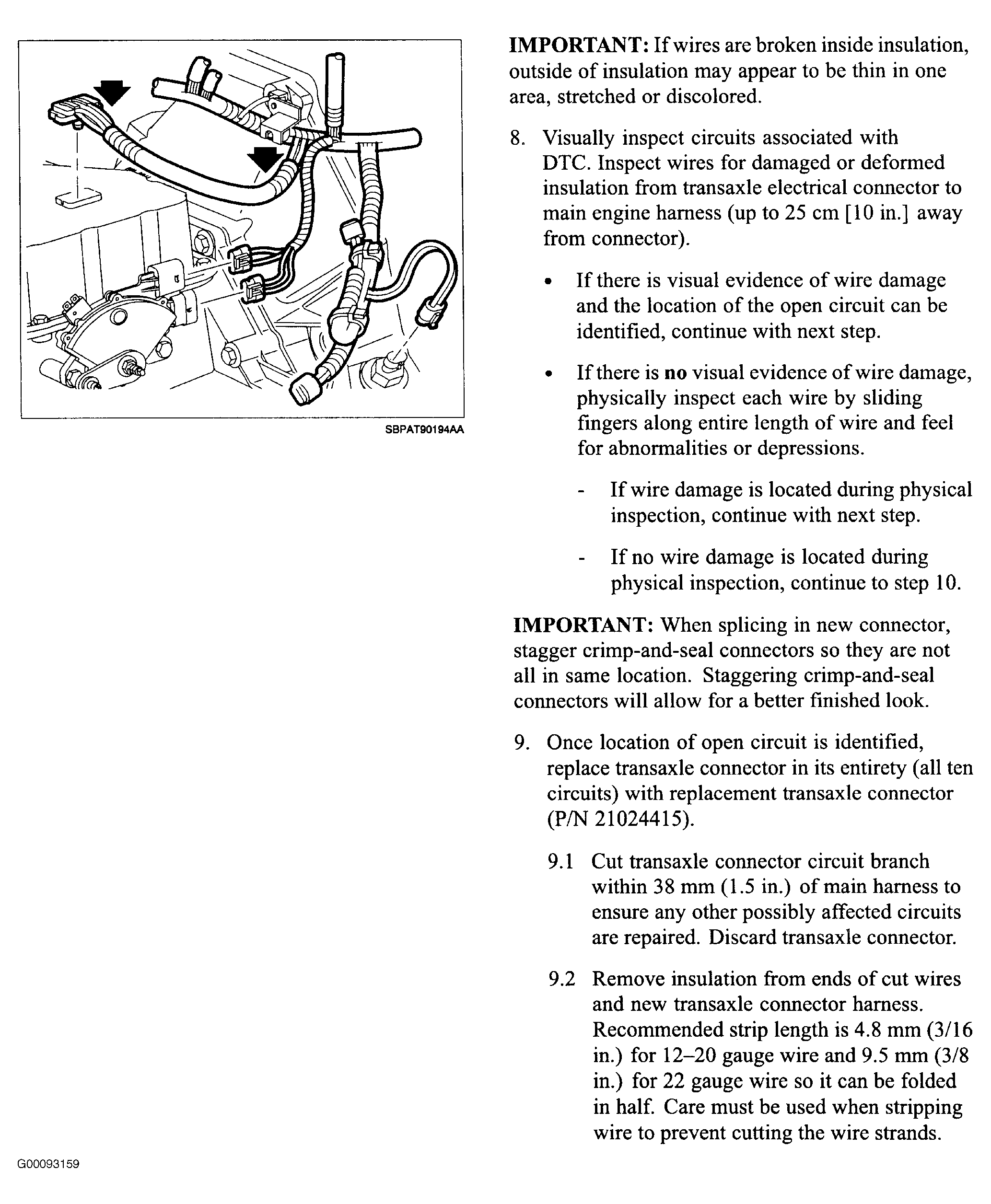

Fig 4: Page 4 of Bulletin
G00093159

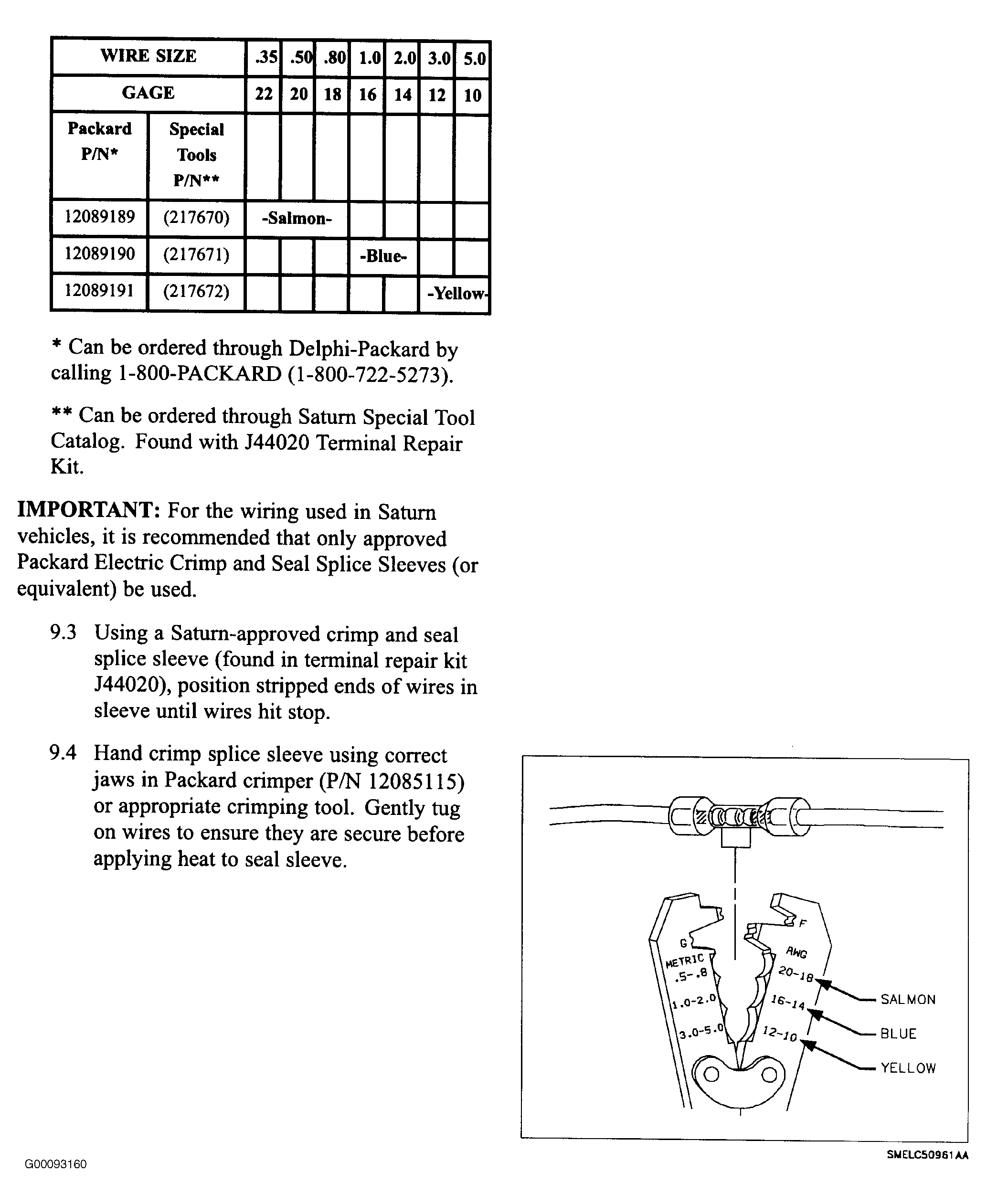

Fig 5: Page 5 of Bulletin
G00093160

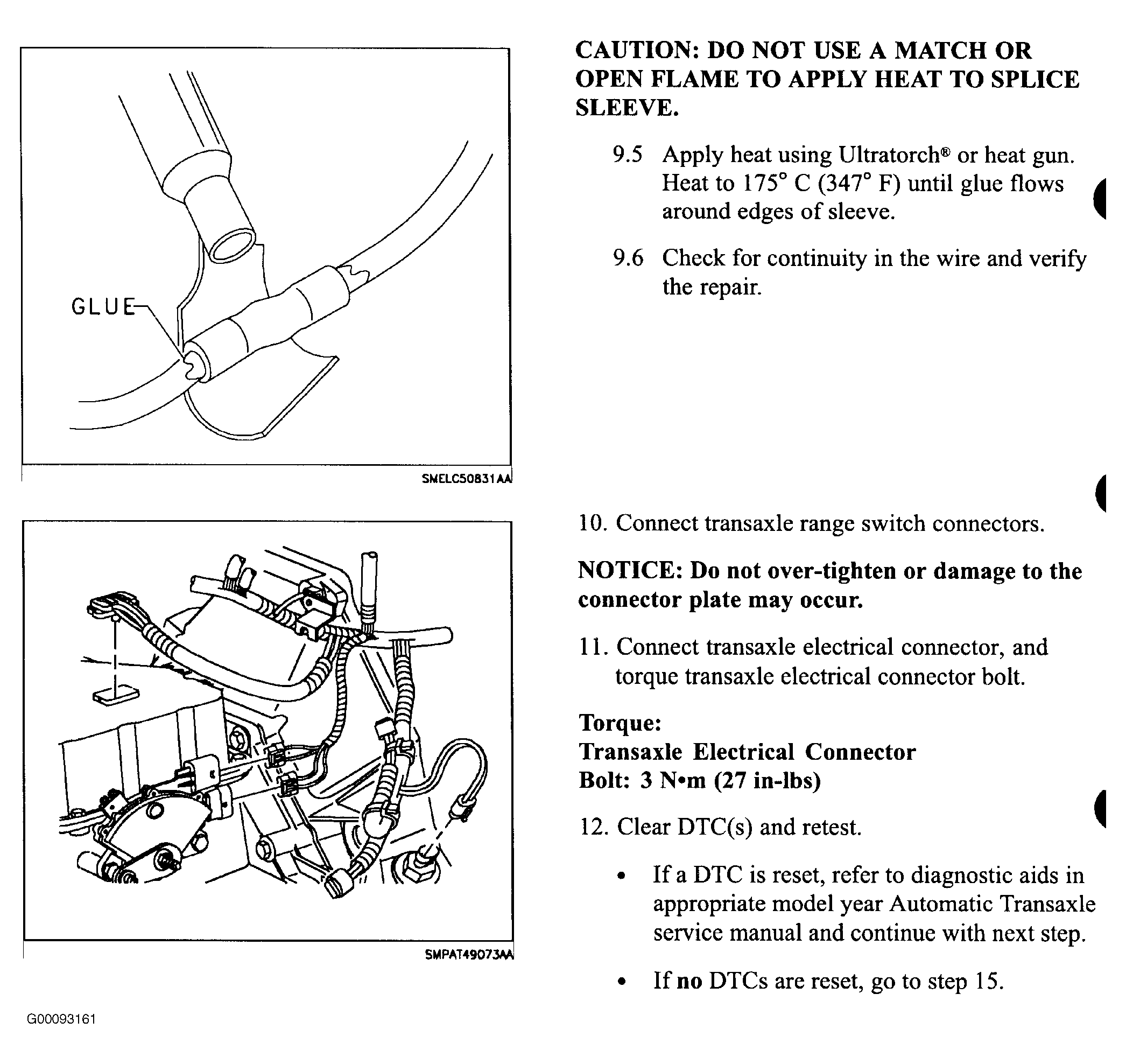

Fig 6: Page 6 of Bulletin
G00093161

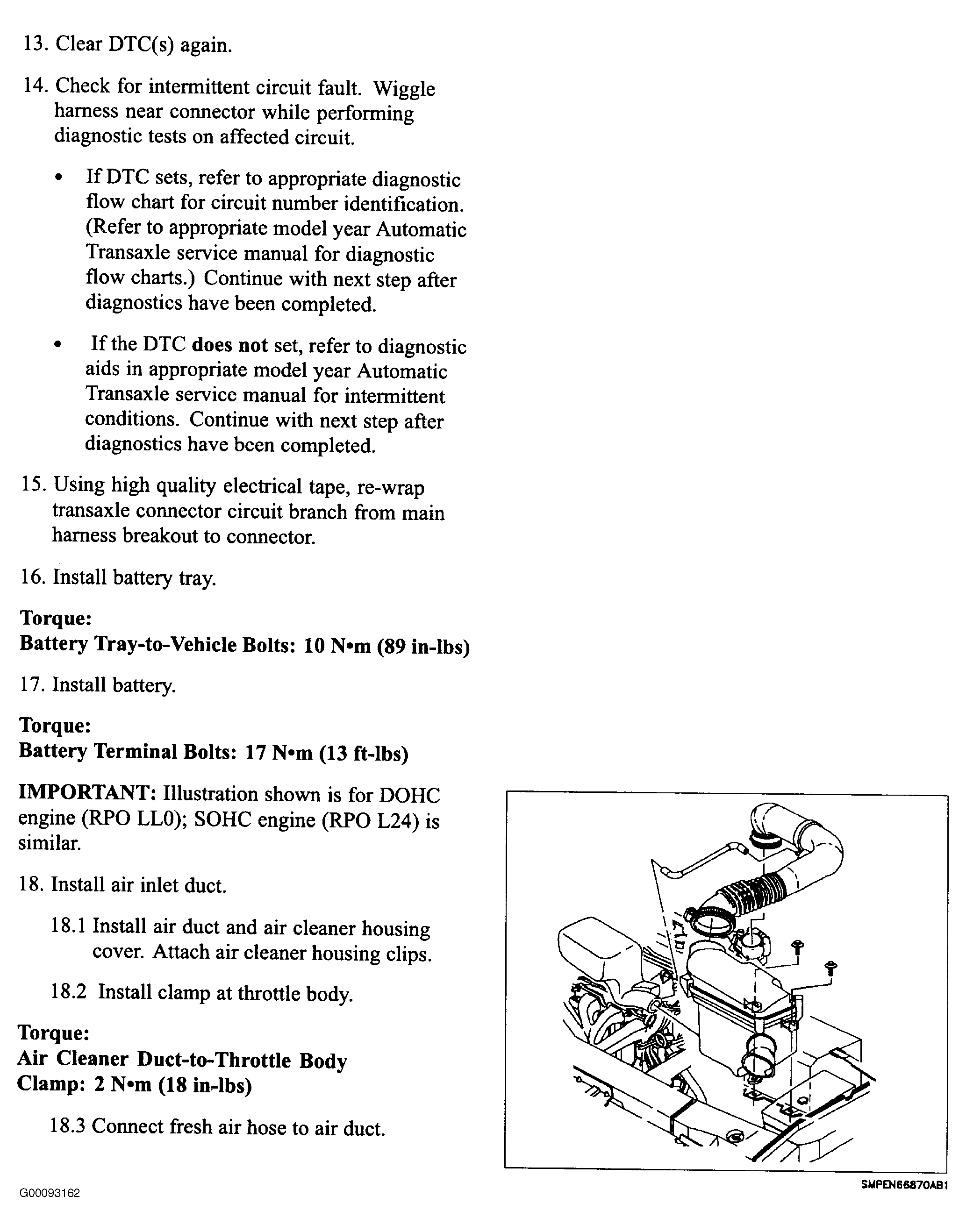

Fig 7: Page 7 of Bulletin
G00093162

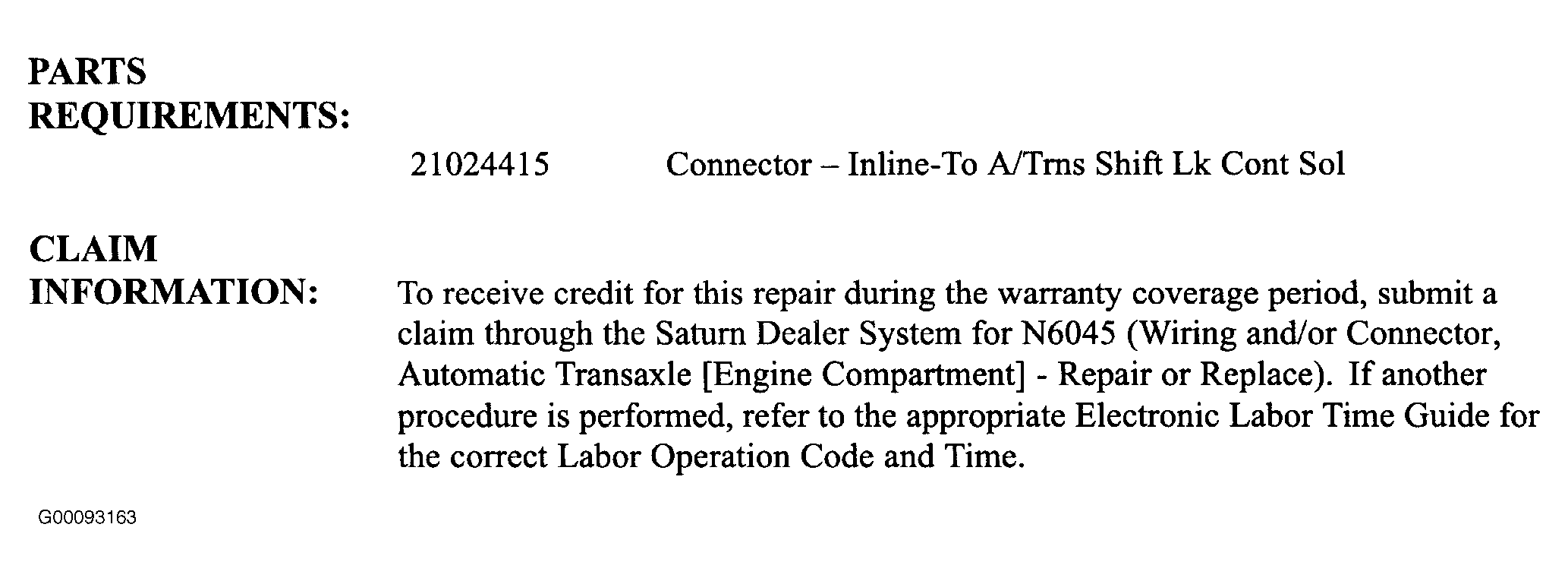

Fig 8: Page 8 of Bulletin
G00093163
