Steering Wheel Shake Or Vibration At 100-109 Km/H (62-68 Mph) (Follow Vibration Complaint Flow Chart, Replace Hub Assembly, If Necessary) (04-03-10-008)

Publication date: 2004-08-09
Reference number: 04-03-10-008

STEERING WHEEL SHAKE OR VIBRATION AT 100-109 KM/H (62-68 MPH) (FOLLOW VIBRATION COMPLAINT FLOW CHART, REPLACE HUB ASSEMBLY, IF NECESSARY)

TECHNICAL SERVICE BULLETIN

Reference Number(s): 04-03-10-008, Date of Issue: August 9, 2004

SATURN:	2000-2002 S-Series Vehicles
SECTION:	03 - Suspension

CONDITION

Some customers may comment on steering wheel shake or a vibration felt in the steering wheel when driving at speeds of 100 - 109 km/h (62 - 68 mph).

CAUSE

This condition may be caused by excessive wheel stud run out.

CORRECTION

Follow the Vibration Complaint Flow Chart in this bulletin (Fig 1 ) and check the wheel stud run out by following the procedure in this bulletin. If necessary, replace the hub assembly with new hub assembly (P/N 21013465) by following the appropriate Service Manual procedure. Refer to "Wheel Bearing/Hub Replacement - Front" procedures (SI Document ID #873876) in the appropriate Saturn S-Series Service Manual.

SERVICE PROCEDURE

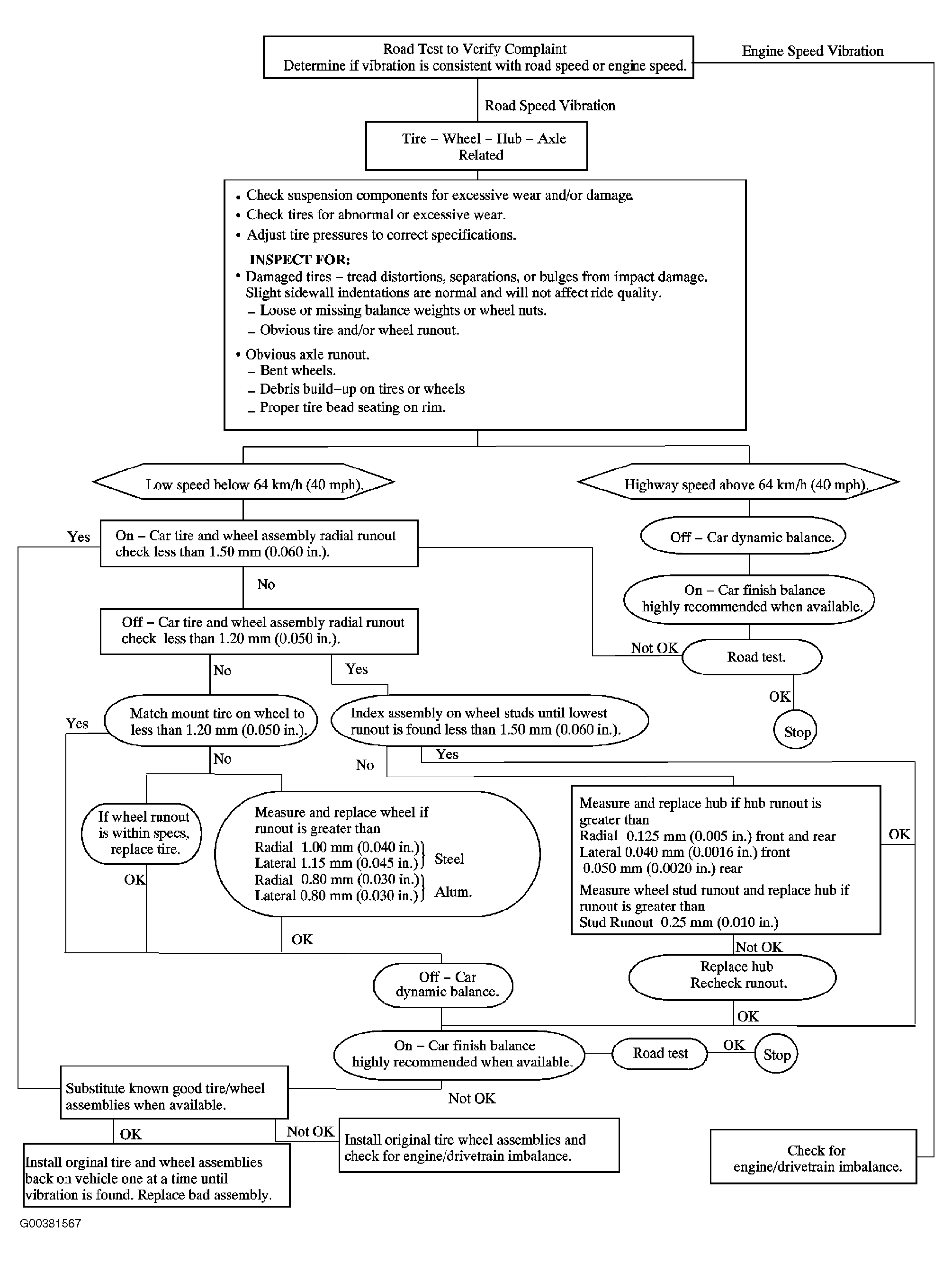

Fig 1: Vibration Complaint Flow Chart

WHEEL STUD RUN OUT

IMPORTANT: Wheel stud run out should be measured with an accurate dial indicator. The machined surface of an alloy wheel provides more accurate and consistent results than a steel wheel. Measurements must be taken with the wheel installed on the vehicle (be sure wheel bearings do not have excessive free play). Disregard any indicator readings due to welds, scratches, paint runs, damaged wheels, etc.

Place dial indicator in a rigid fixture and position against wheel to measure radial run out (1) of either the inboard (3) or outboard (4) bead flange.

Fig 2: Radial Run Out
Slowly rotate the wheel one full revolution while observing dial indicator.
Zero dial indicator where the lowest reading occurred.
Slowly rotate wheel one full revolution while observing dial indicator.
Record highest dial indicator reading and mark the wheel at this location.
Note the orientation of the wheel valve stem to the lug nut studs, then remove the wheel.
Rotate the wheel 180 degrees and reinstall the wheel.
Repeat steps 1 through 4 above.
Note the reading when the dial indicator is at the position marked in step 5 above, and compare the two values.
If the two dial indicator readings vary by more than 0.08 mm (0.003") for alloy wheels or more than 0.15 mm (0.006") for steel wheels, replace the hub assembly with the new hub assembly, P/N 21013465. Refer to "Wheel Bearing/Hub Replacement - Front" procedures (SI Document ID #873876) in the appropriate Saturn S-Series Service Manual. The new hub assembly, P/N 21013465, has a slightly larger wheel-pilot diameter. This change will improve wheel to hub concentricity by allowing a snug fit of the wheel to the hub.

PARTS INFORMATION

Part Number	Description
21013465	HUB ASM - FRT WHL

WARRANTY INFORMATION

To receive credit for this repair during the warranty coverage period, submit a claim through the Saturn Dealer System as follows:

For vehicles repaired under warranty, use:

WARRANTY INFORMATION

Labor Op.	Description	Labor Time
E2340	Hub Assembly, Front Wheel - Replace Right	1.6 hrs
E2341	Hub Assembly, Front Wheel - Replace Left	1.6 hrs
E2347	Hub Assembly, Front Wheel - Replace Both	2.9 hrs
Add:	With ABS (One or Both)	0.1 hr
