Vehicle Vibration At Speeds Between 77-87 Km/H (48-54 Mph) (Install Powertrain Damper Kit) (00-T-57A)

Publication date: 2001-06-01
Reference number: 00-T-57A

VEHICLE VIBRATION AT SPEEDS BETWEEN 77-87 KM/H (48-54 MPH) (INSTALL POWERTRAIN DAMPER KIT)

VEHICLE VIBRATION AT SPEEDS BETWEEN 77-87 KM/H (48-54 MPH) (INSTALL POWERTRAIN DAMPER KIT)

TECHNICAL SERVICE BULLETIN

Reference Number(s): 00-T-57A, Date of Issue:  June, 2001
SATURN: 2000-2002 S-Series
SECTION: 04-Chassis
Superceded Bulletin(s): 00-T-57
NOTE: Due to the addition of the 2002 model year vehicles under Models Affected, this bulletin has been revised and supersedes bulletin 00-T-57, which should be discarded.

DESCRIPTION

Vehicle Vibration At Speeds Between 77-87 Km/H (48-54 mph) (Install Powertrain Damper Kit)

Some customers may comment about a vehicle vibration that occurs between 77-87 Km/H (48-54 mph) on smooth road surfaces.

This vibration is most noticeable in the floorboards and in the seat cushions. It only occurs within the specified range of 77-87 Km/H (48-54 mph) and only on smooth to very smooth road surfaces.

BULLETIN CONTENT

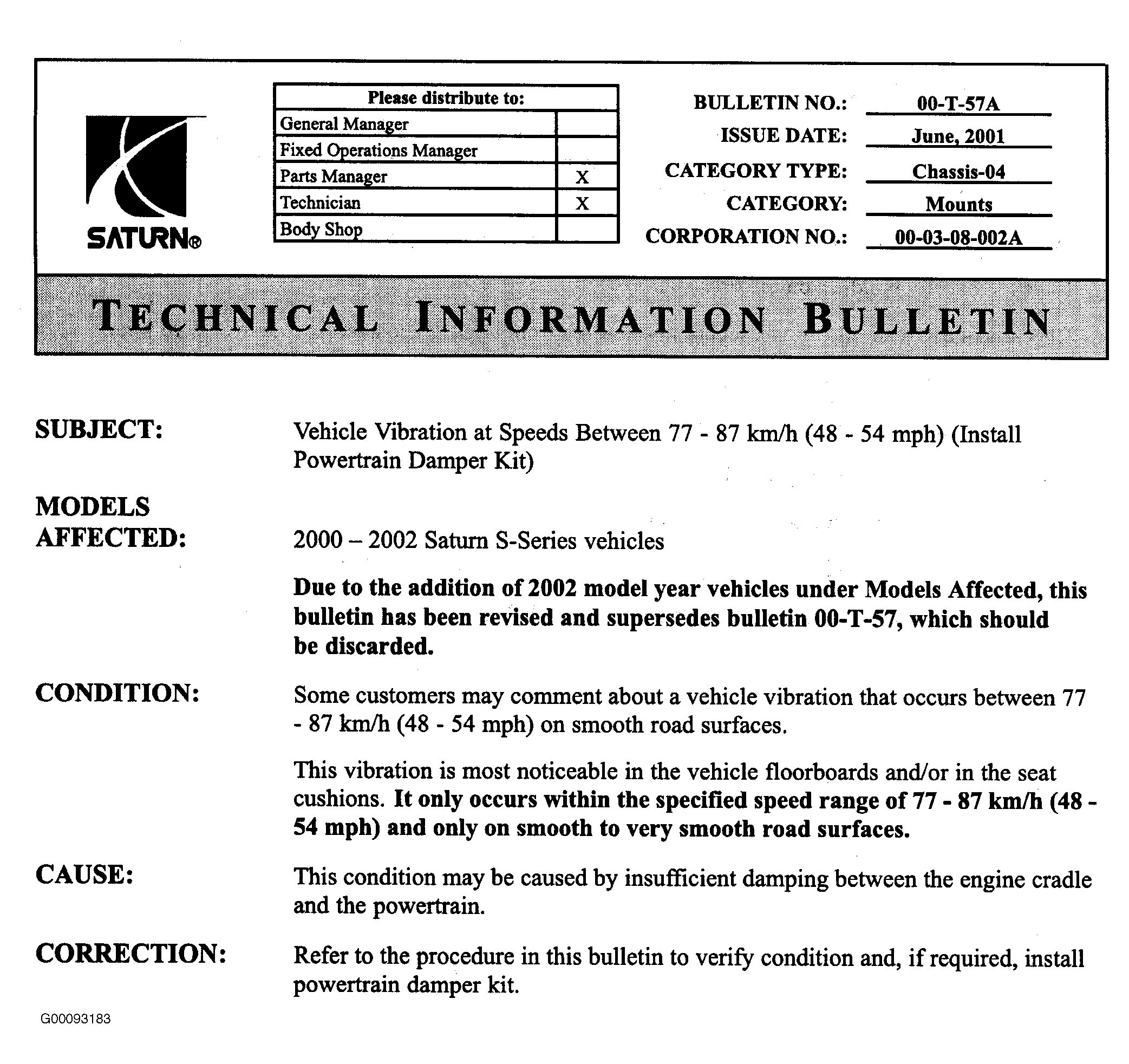

Fig 1: Page 1 of Bulletin
G00093183

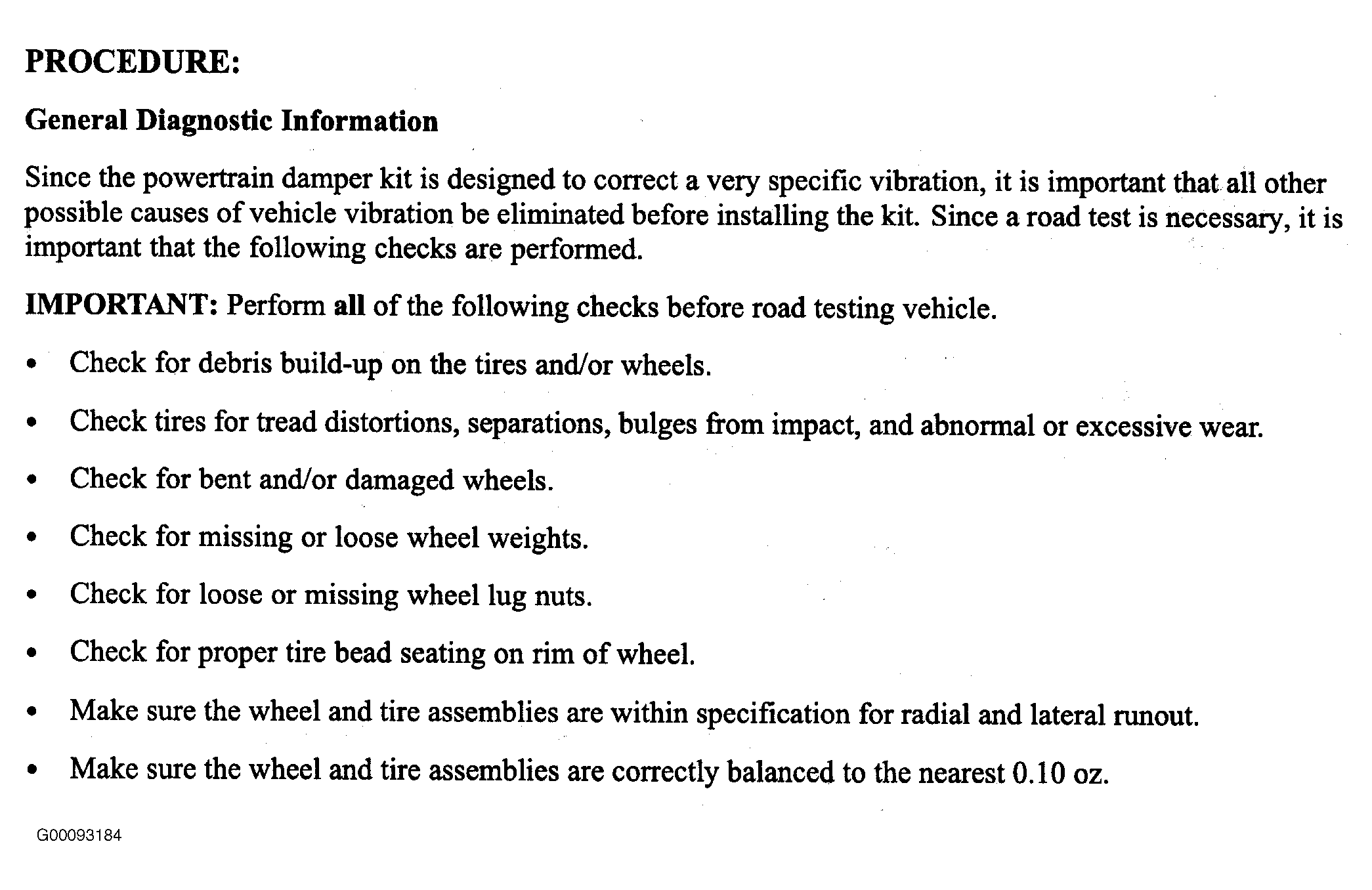

Fig 2: Page 2 of Bulletin
G00093184

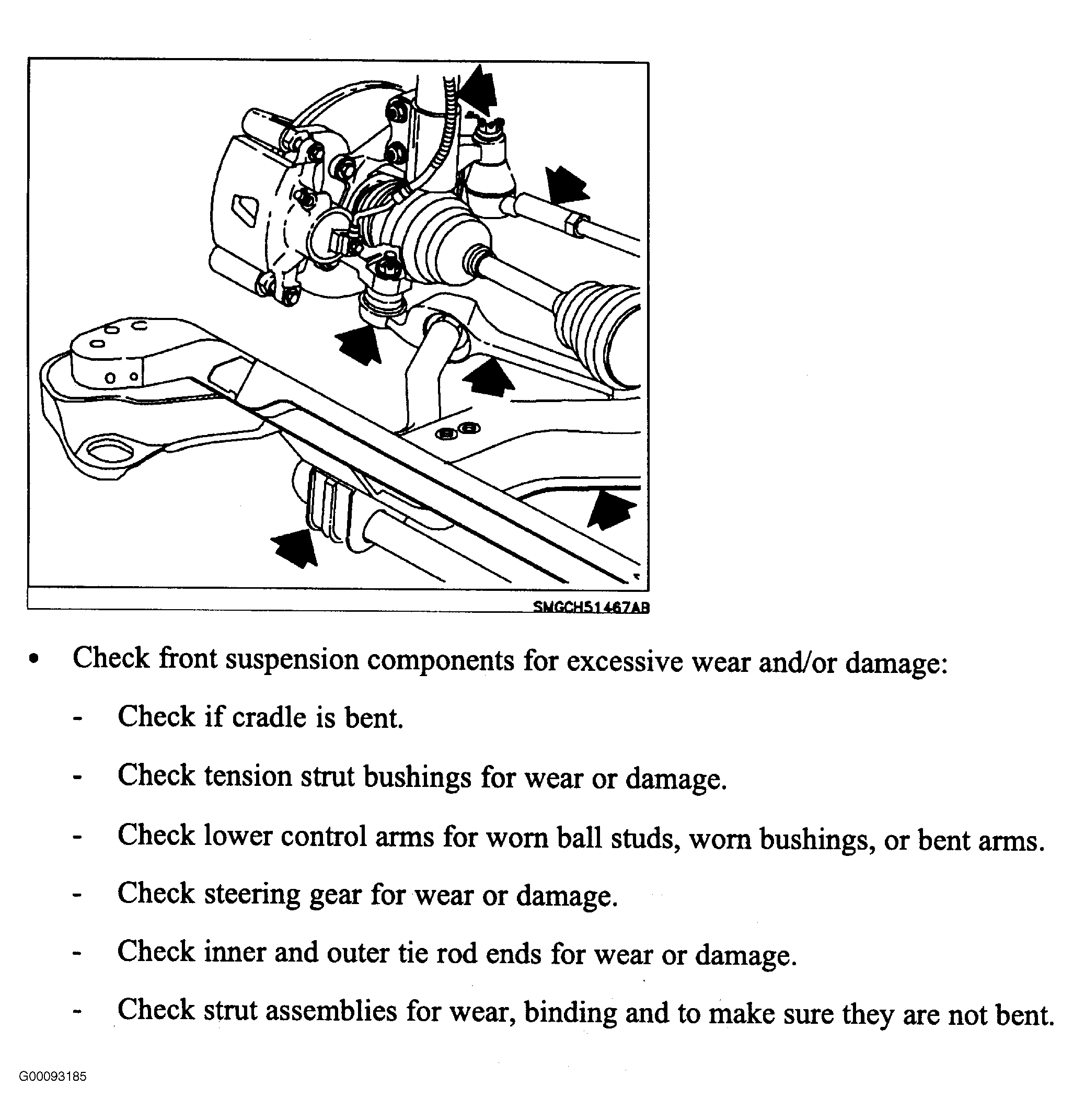

Fig 3: Page 3 of Bulletin
G00093185

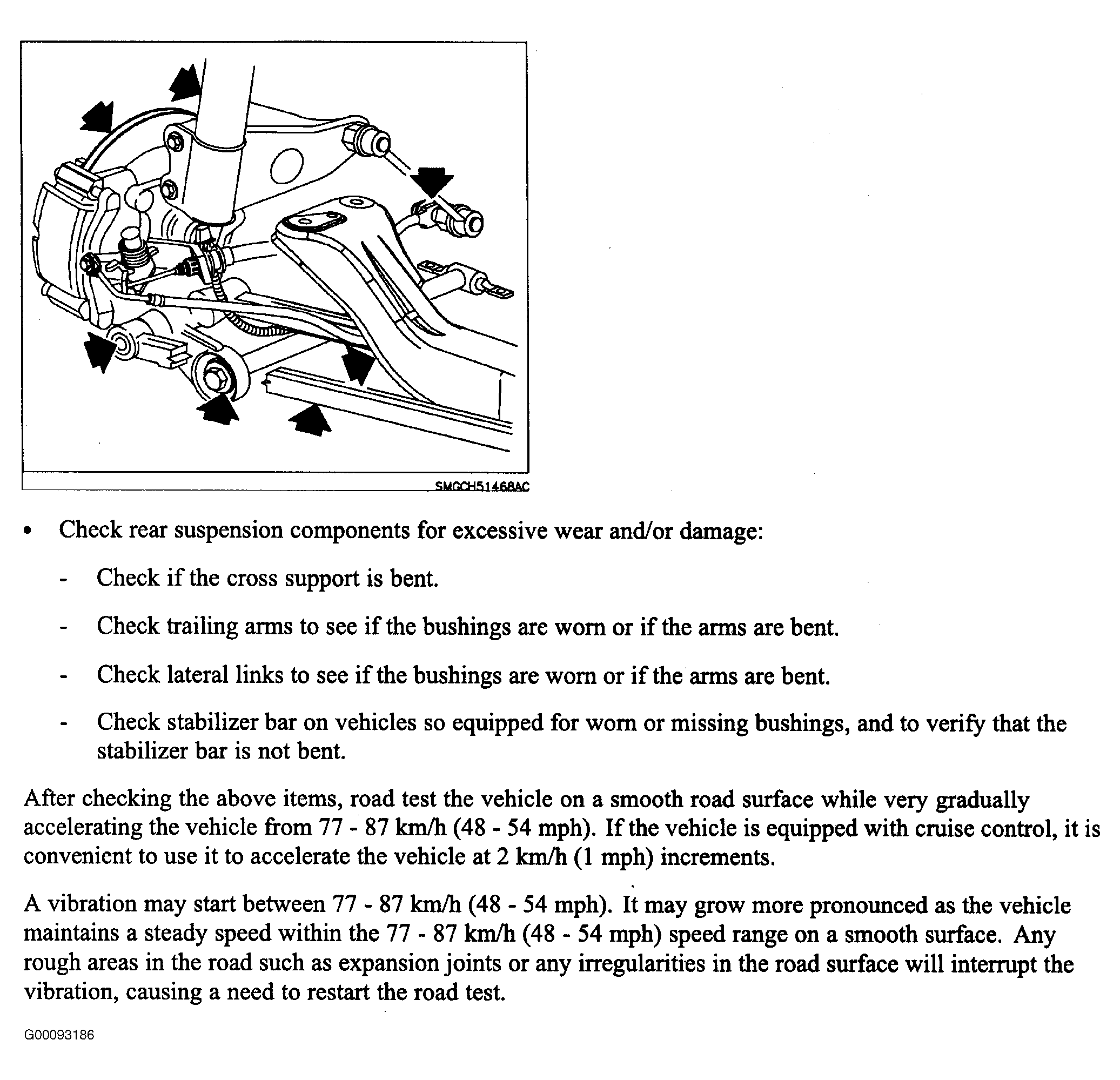

Fig 4: Page 4 of Bulletin
G00093186

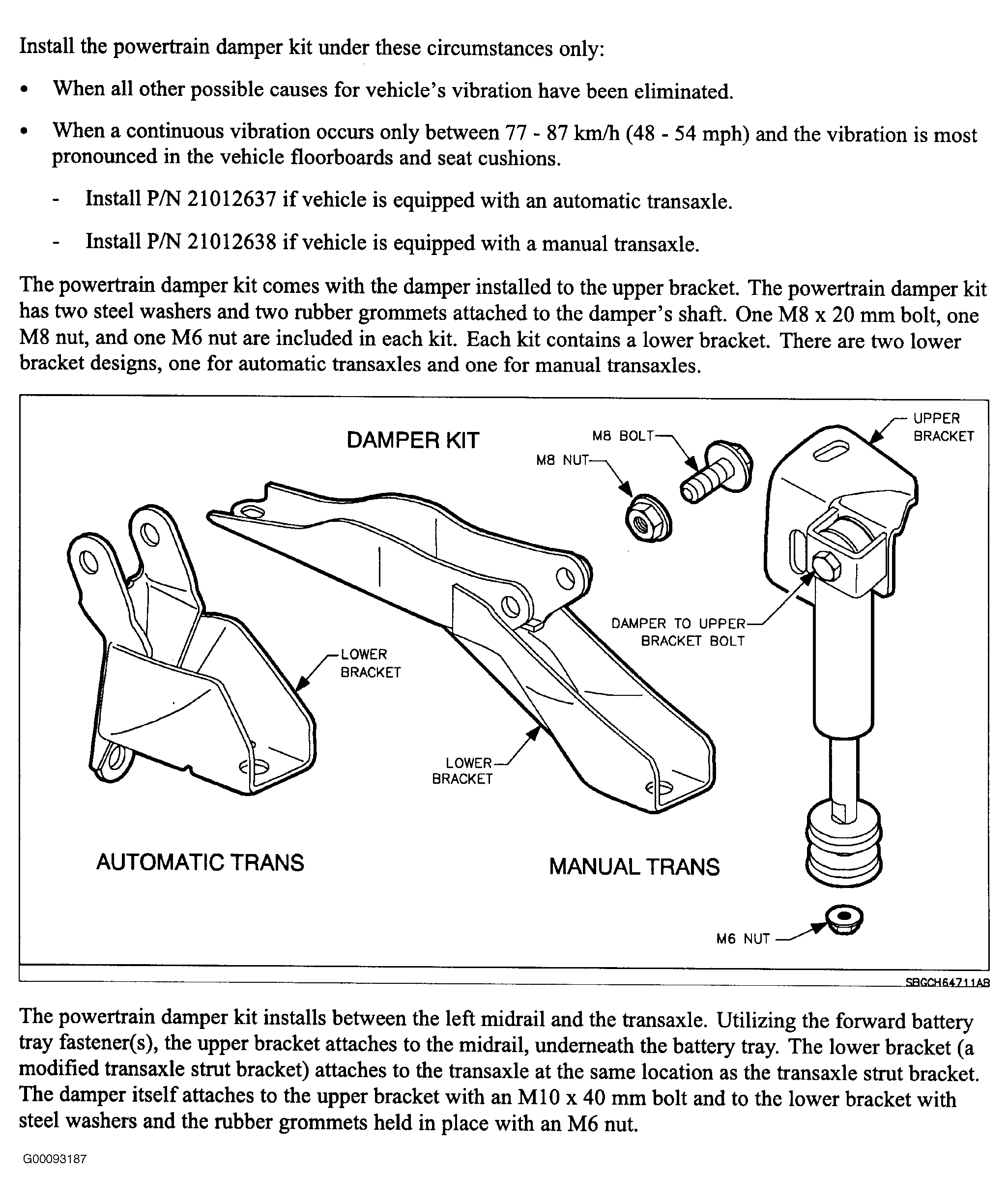

Fig 5: Page 5 of Bulletin
G00093187

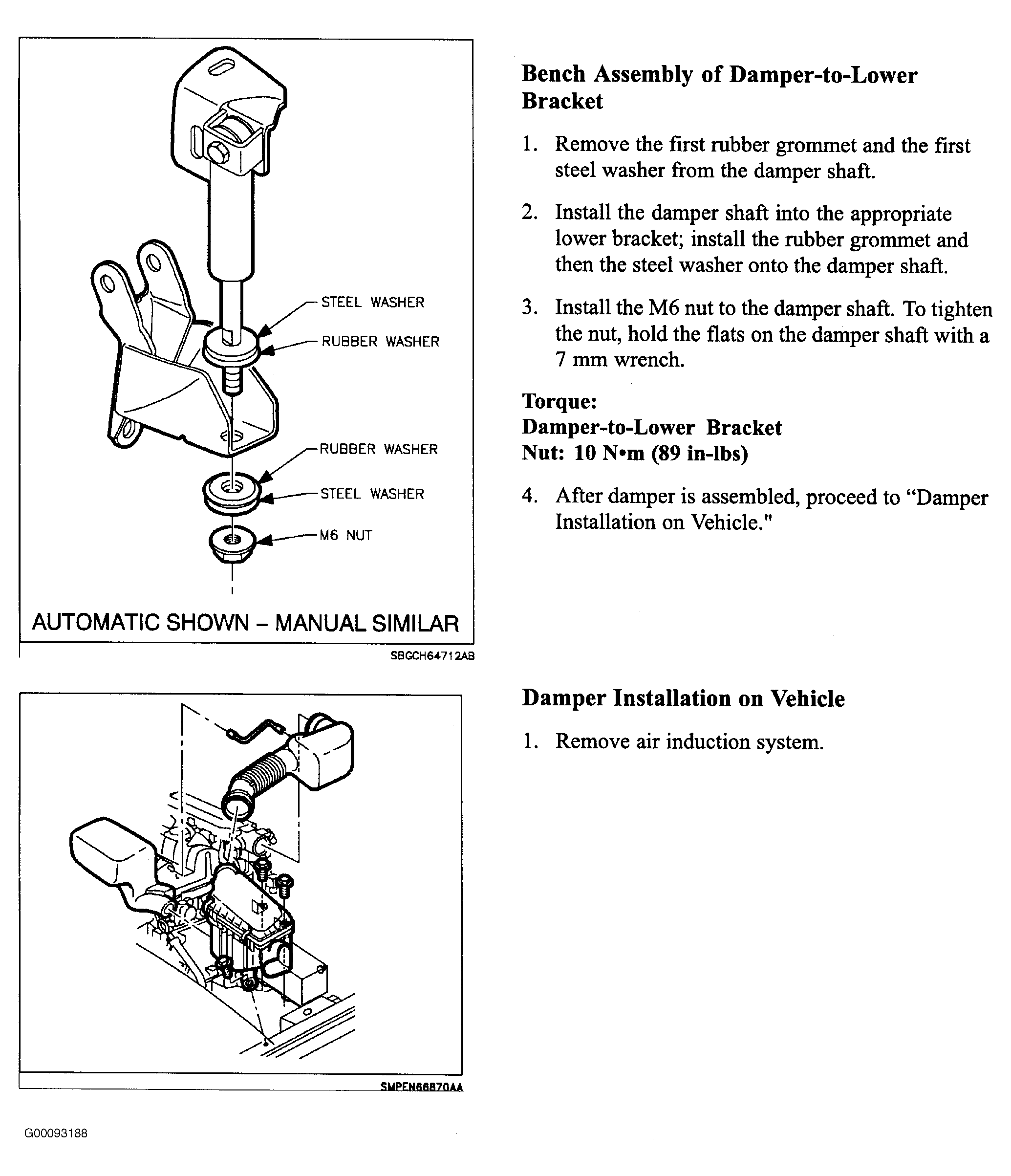

Fig 6: Page 6 of Bulletin
G00093188

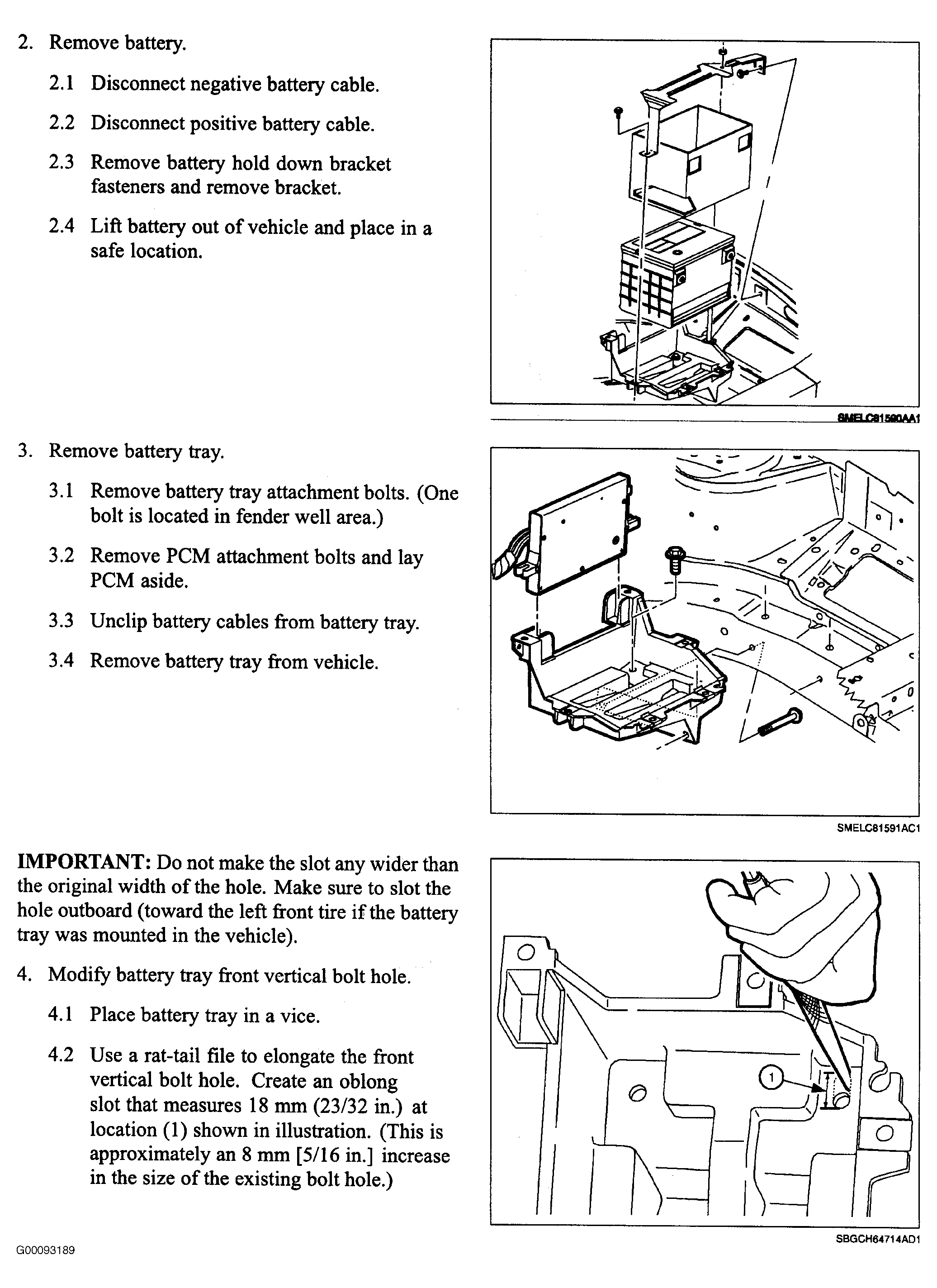

Fig 7: Page 7 of Bulletin
G00093189

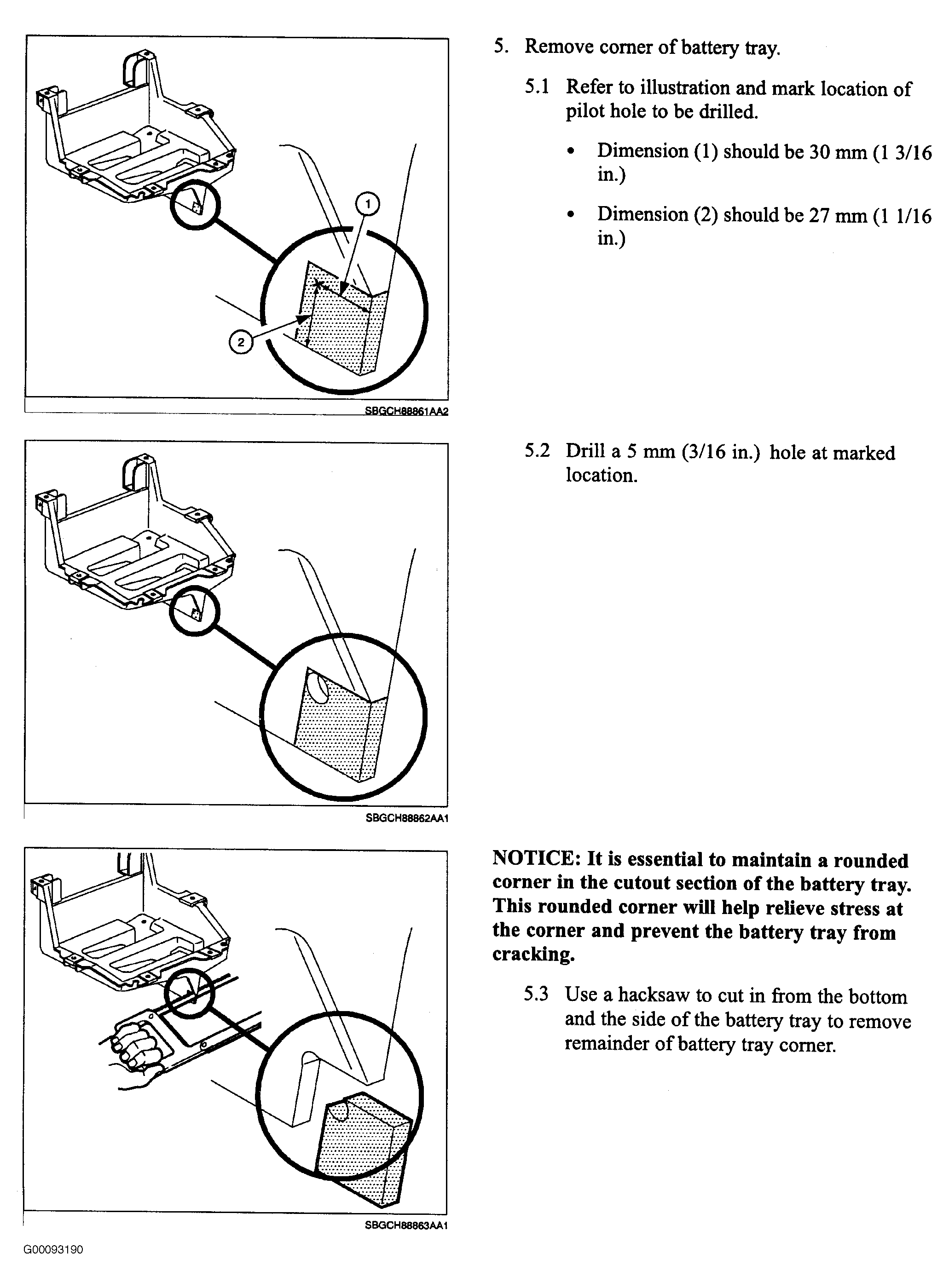

Fig 8: Page 8 of Bulletin
G00093190

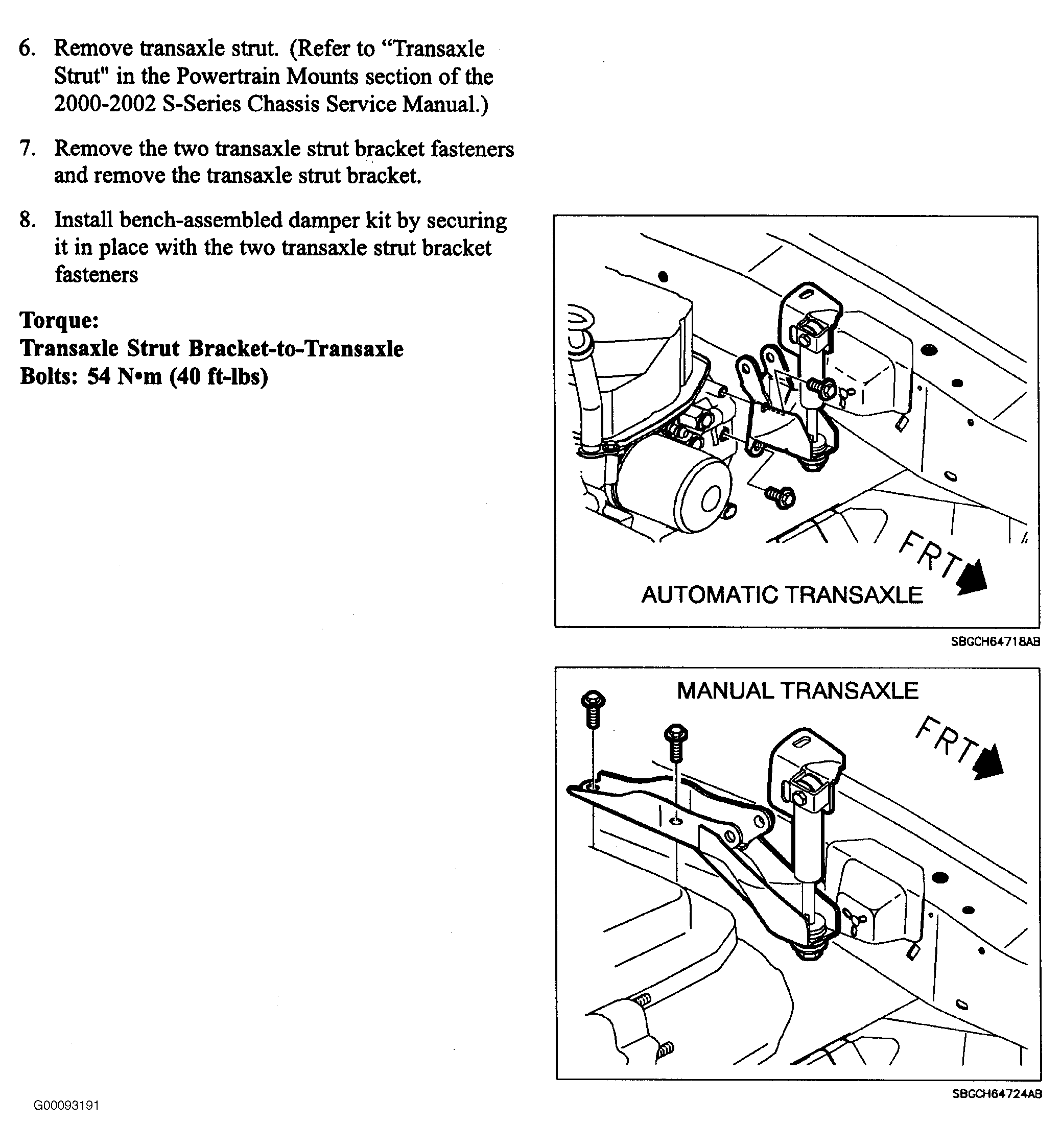

Fig 9: Page 9 of Bulletin
G00093191

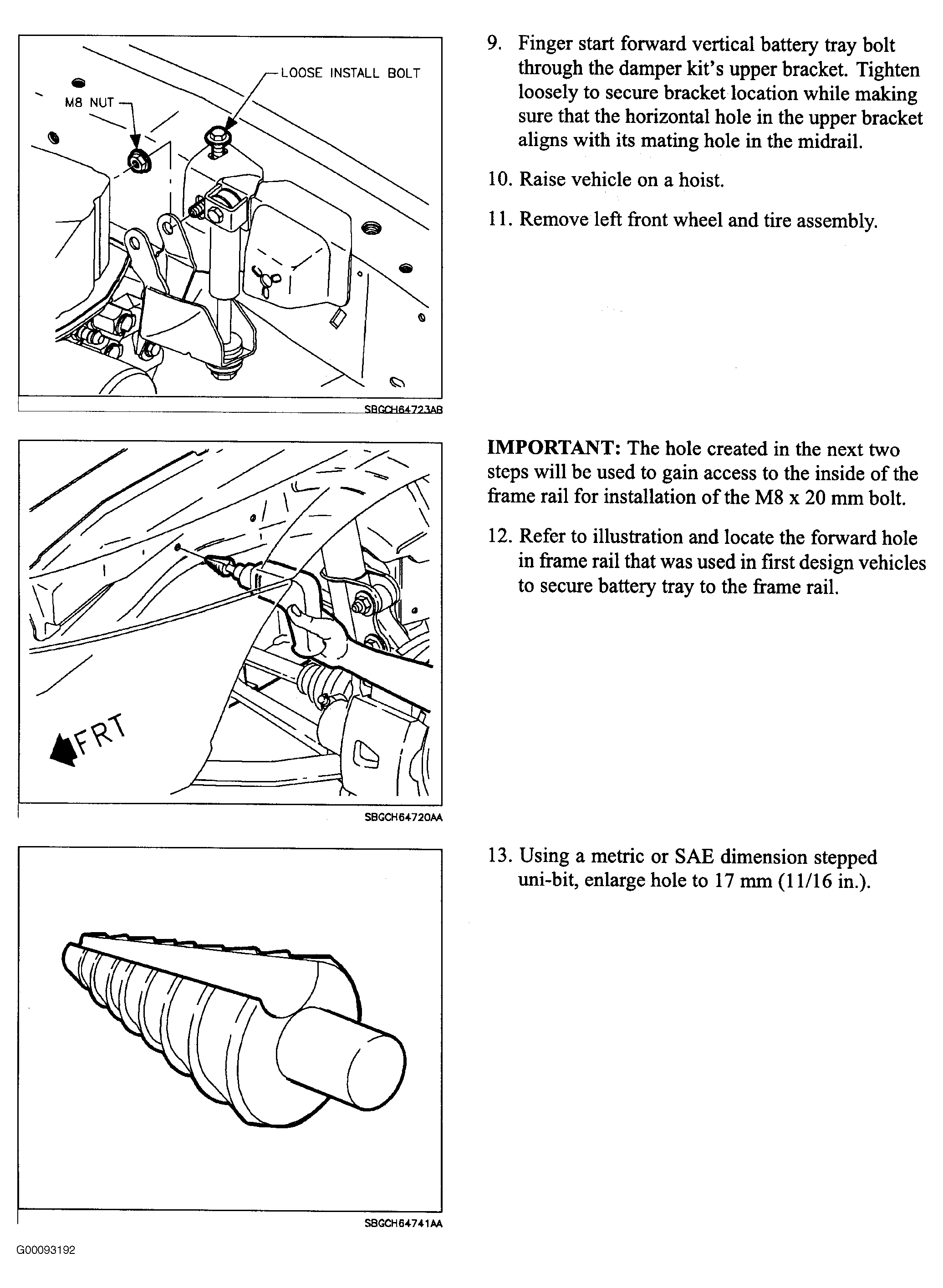

Fig 10: Page 10 of Bulletin
G00093192

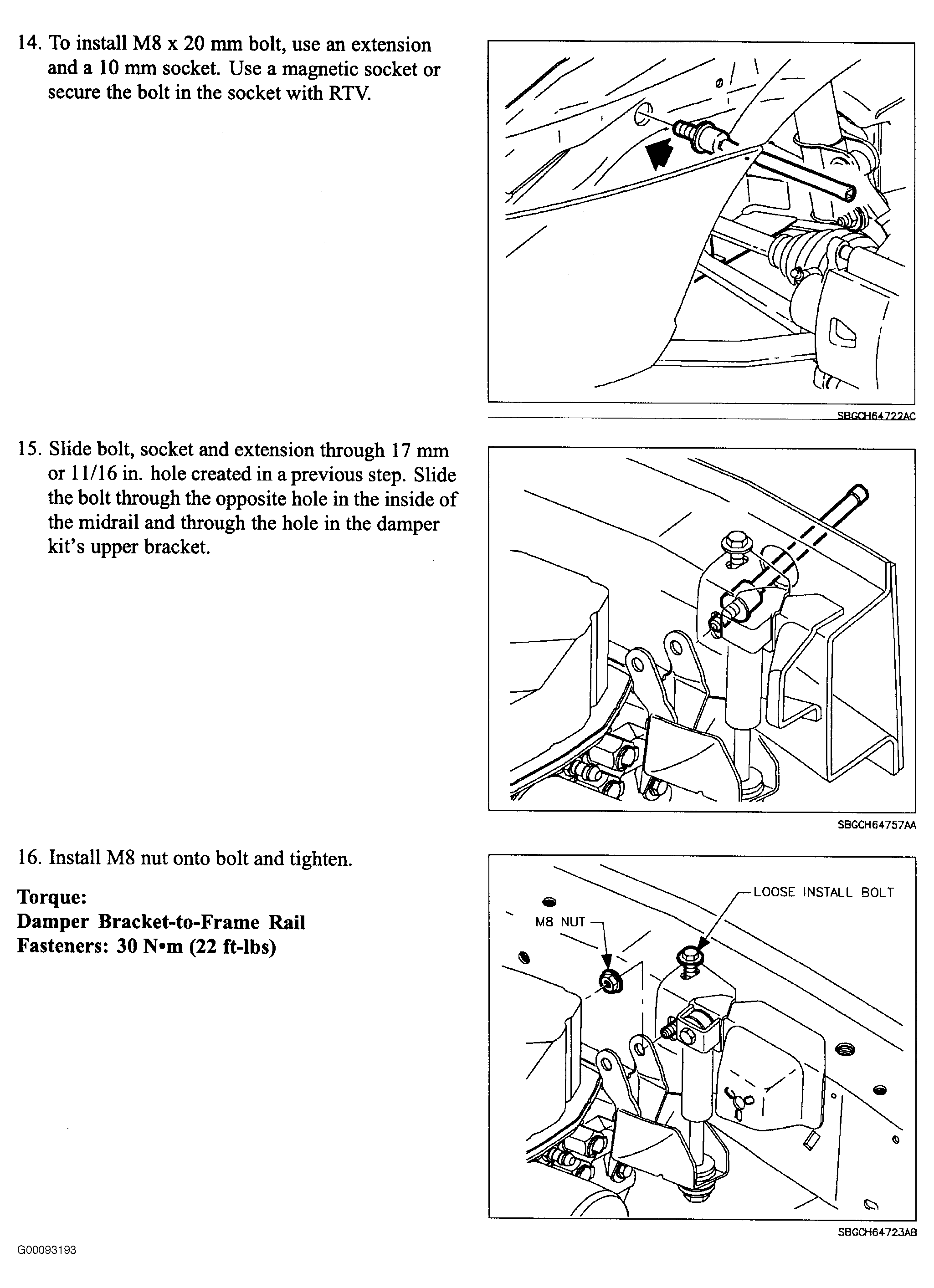

Fig 11: Page 11 of Bulletin
G00093193

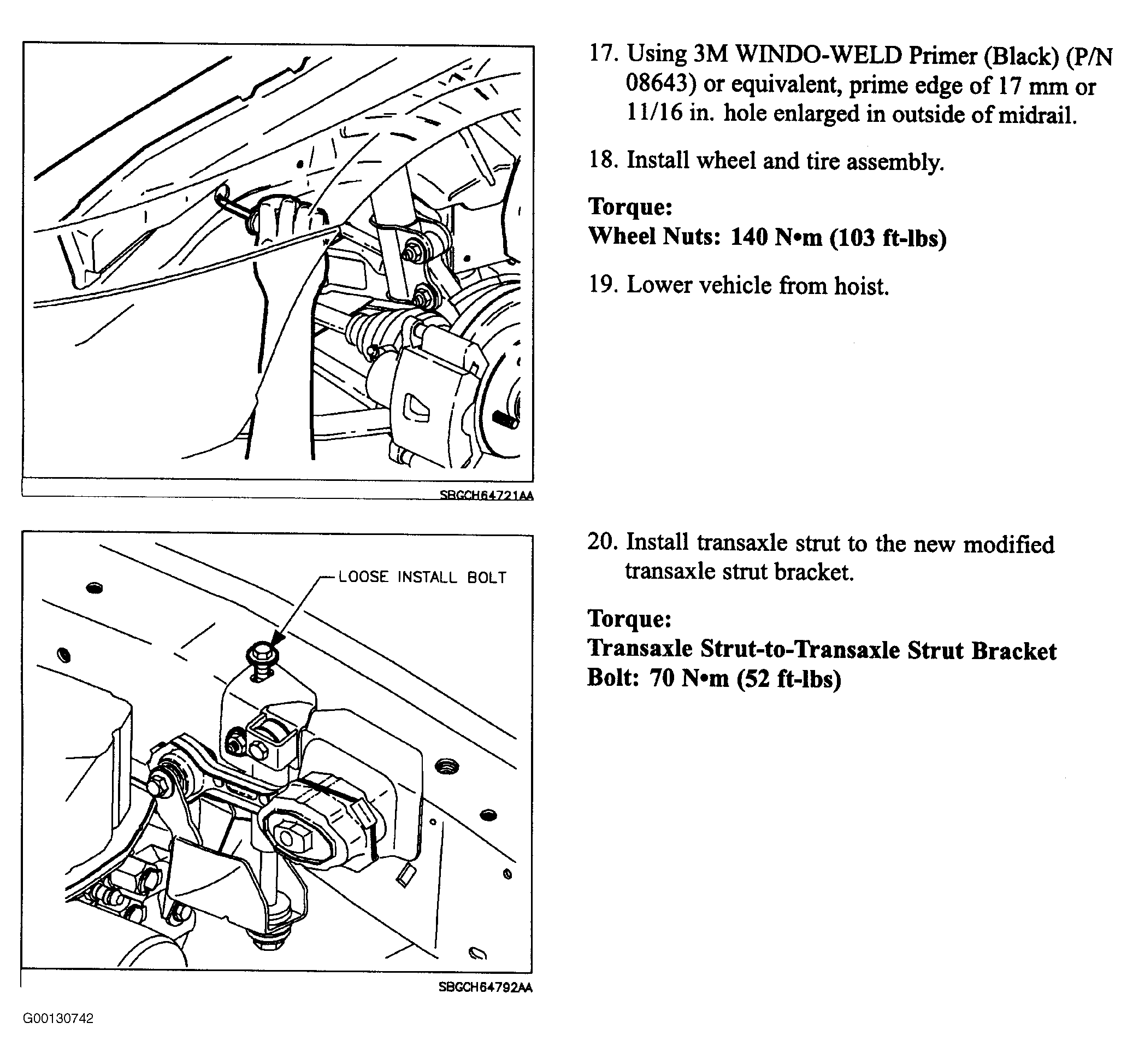

Fig 12: Page 12 of Bulletin
G00130742

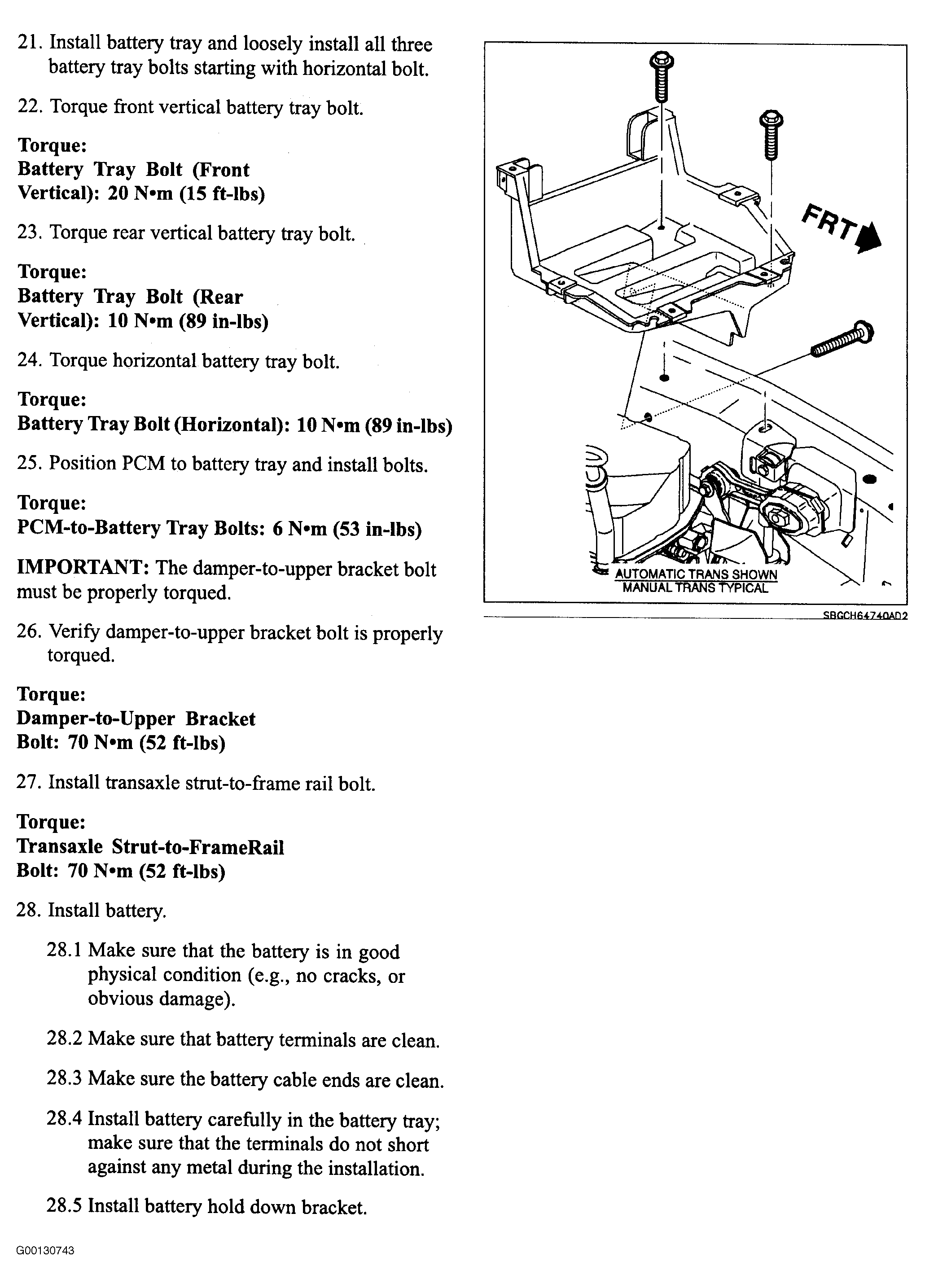

Fig 13: Page 13 of Bulletin
G00130743

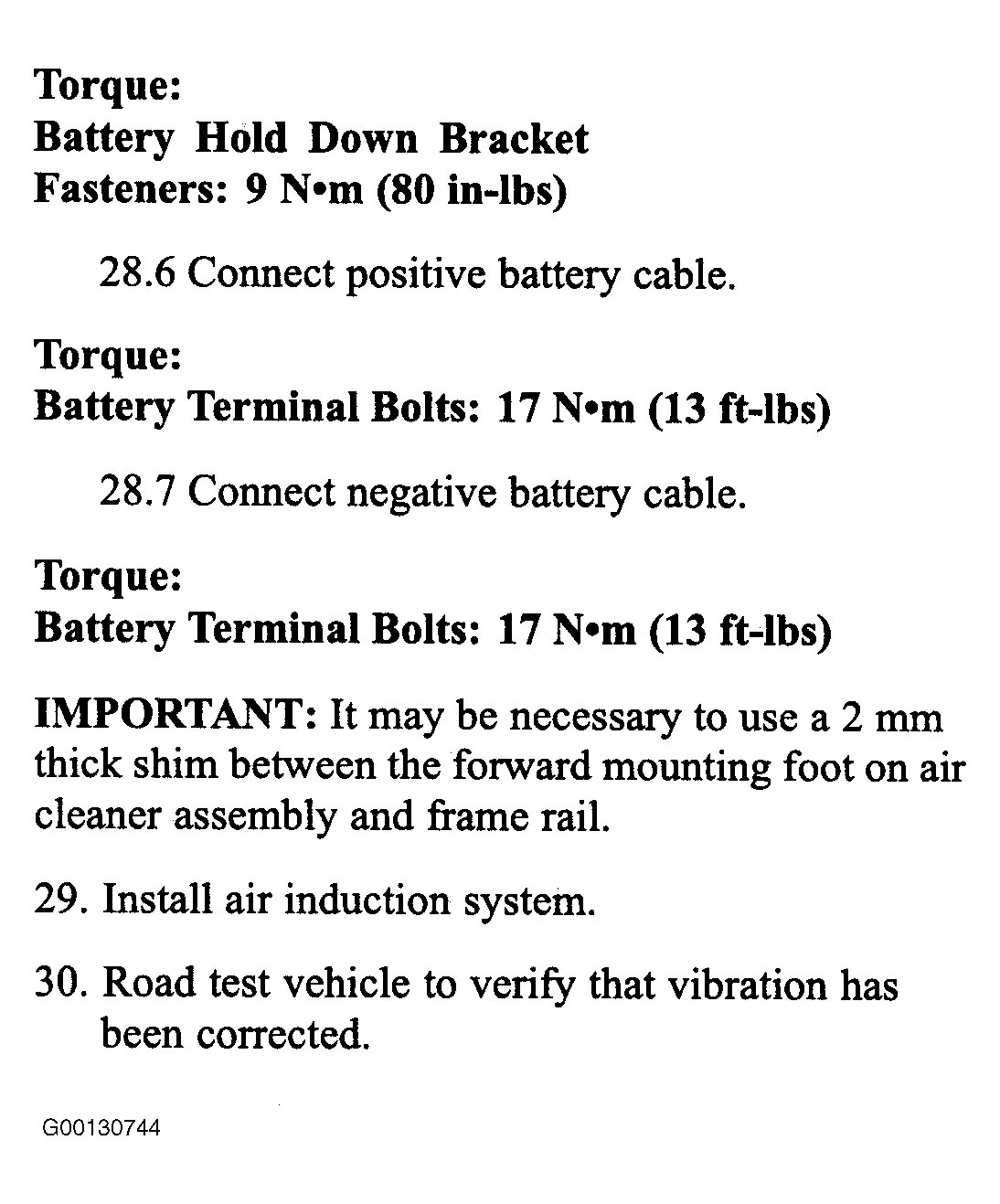

Fig 14: Page 14 of Bulletin
G00130744

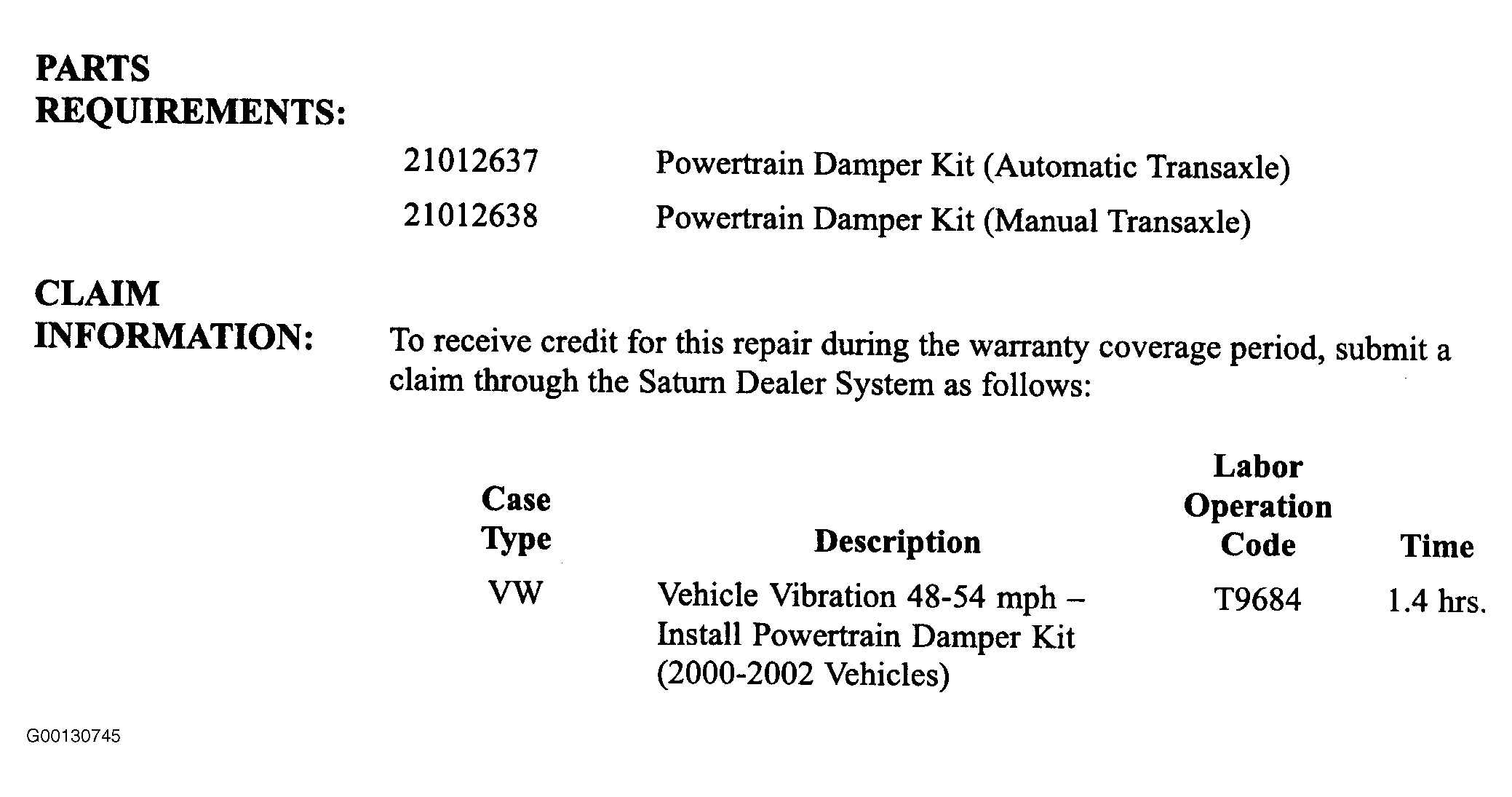

Fig 15: Page 15 of Bulletin
G00130745
