Disc Brakes & Drum Brakes: Overhaul

NOTE: For overhaul procedures, use illustrations. See Fig 1 -Fig 4 . Manufacturer does not recommend overhaul of power brake booster. If service is required, replace booster.

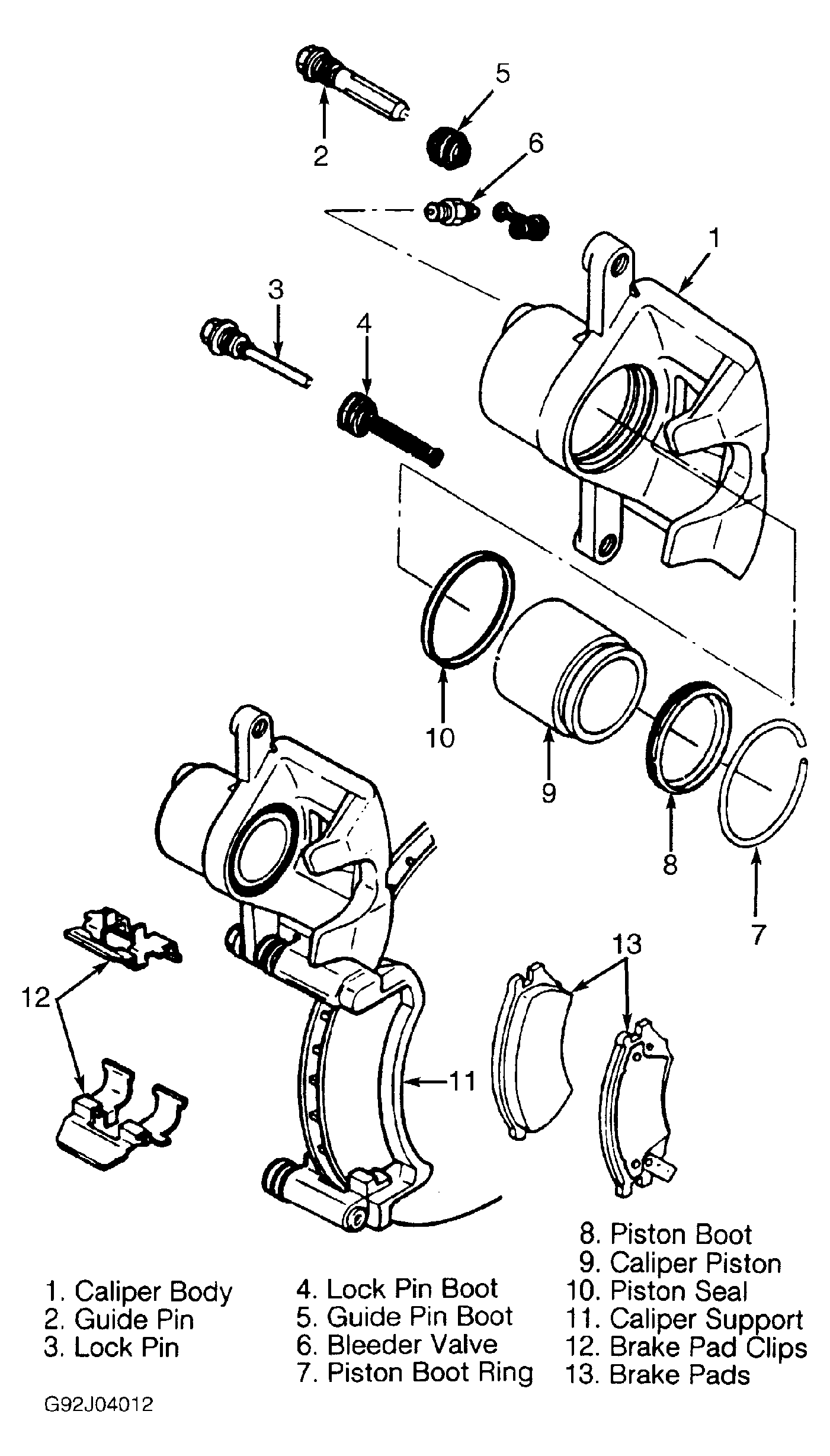

Fig 1: Exploded View Of Front Brake Caliper

Courtesy of GENERAL MOTORS CORP.

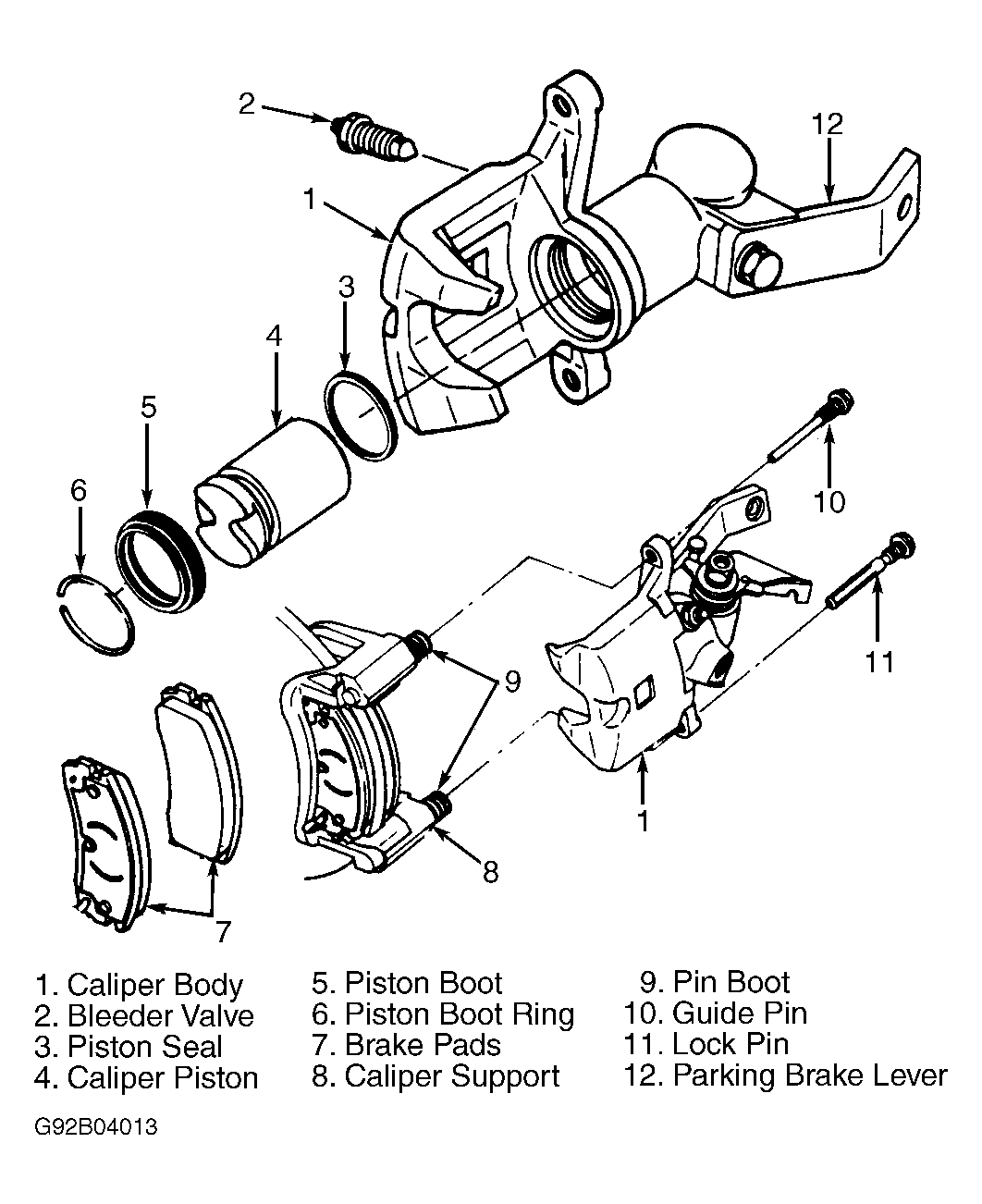

Fig 2: Exploded View Of Rear Brake Caliper

Courtesy of GENERAL MOTORS CORP.

Fig 3: Exploded View Of Rear Drum Brake Assembly

Courtesy of GENERAL MOTORS CORP.

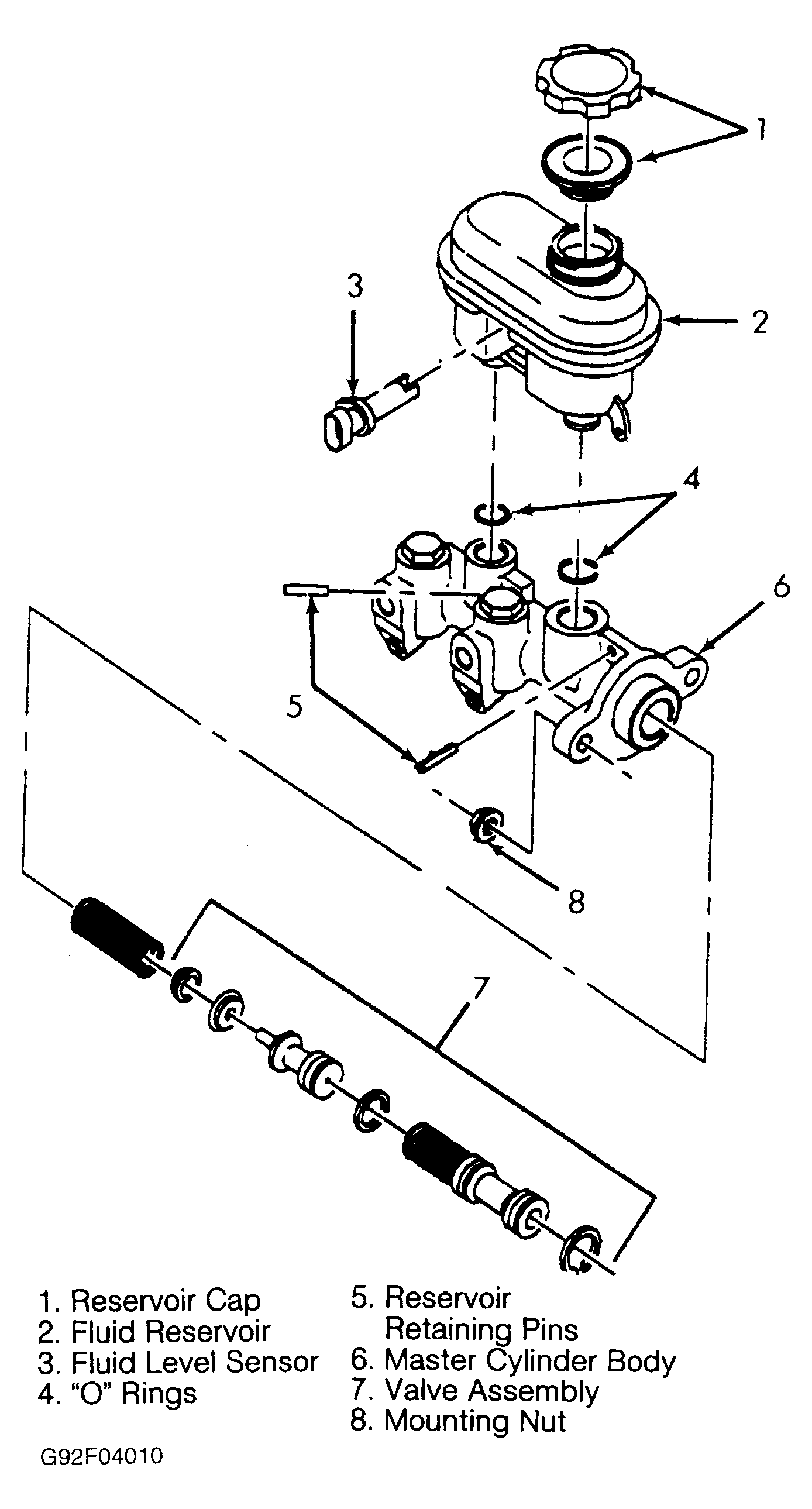

Fig 4: Exploded View Of Master Cylinder

Courtesy of GENERAL MOTORS CORP.
