Activating System (Montana, Silhouette & Venture)

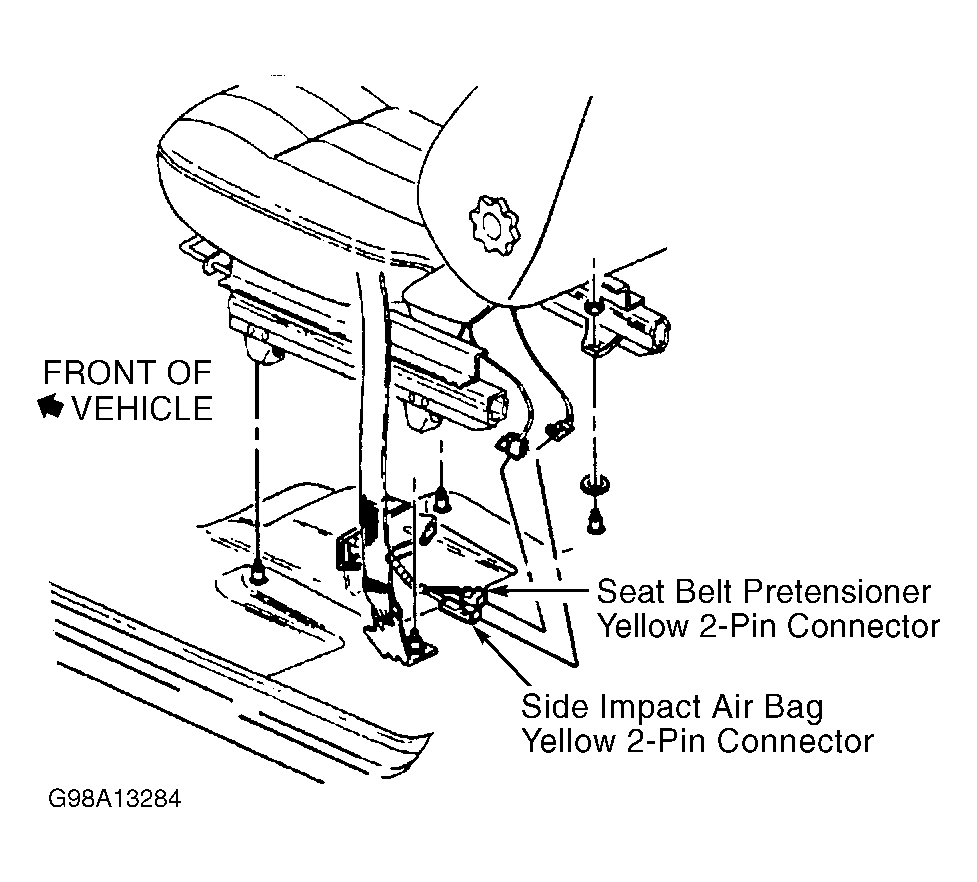

- To activate air bag system, ensure ignition switch is in LOCK position and ignition key is removed. Connect passenger side air bag Yellow 2-pin connector, and passenger seat belt pretensioner Yellow 2-pin connector. Install CPA clips for each connector. Repeat procedure for driver side air bag and seat belt pretensioner connectors.

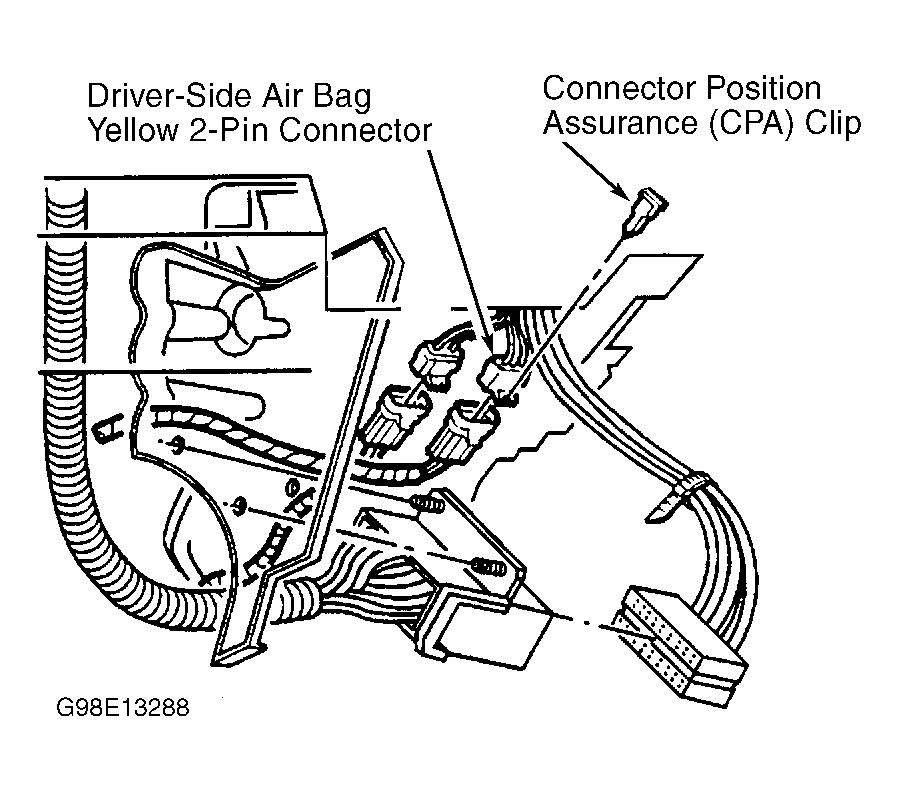

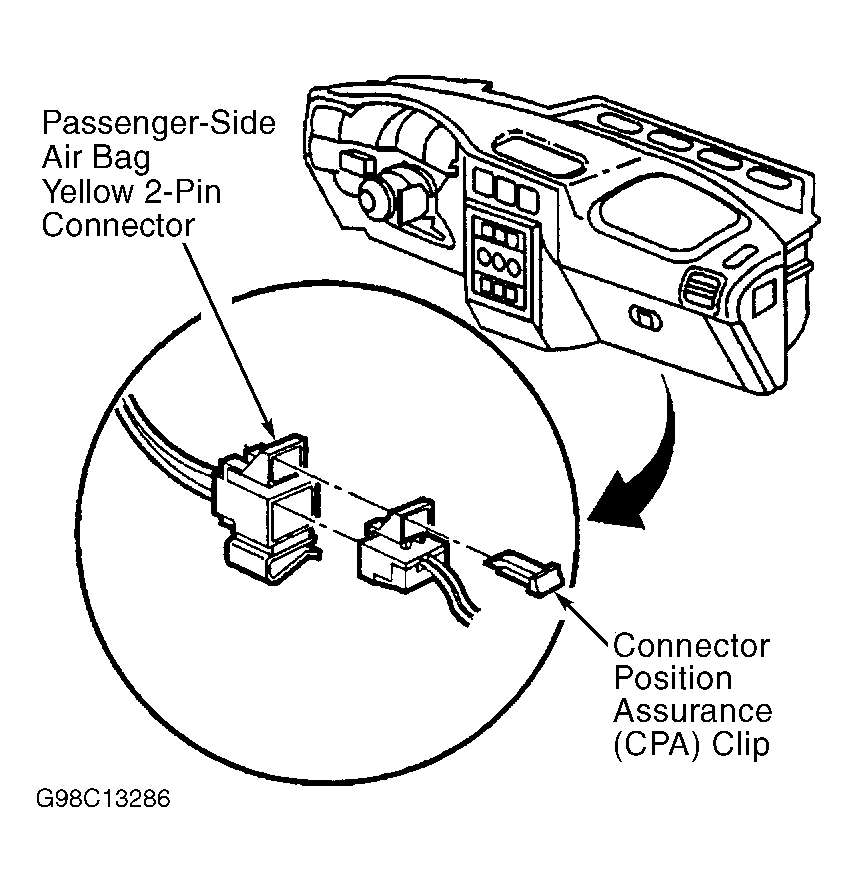

- Connect Yellow 2-pin SIR connector for passenger front air bag. Install CPA clip. Repeat procedure from driver front air bag Yellow 2-pin connector at base of steering column. Install CPA clip. Install sound insulator panels.
- Install SDM (air bag) fuse. Staying well away from both front air bag inflator modules, turn ignition switch to ON position. Ensure AIR BAG warning light flashes 7 times, and then turns off.
