Home >> Saturn >> 2000 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Charts - Wiper/Washer - Rear >> Chart 7 Rear Washer Pump Inop, Rear Wiper Operates Normally

Chart 7 Rear Washer Pump Inop, Rear Wiper Operates Normally

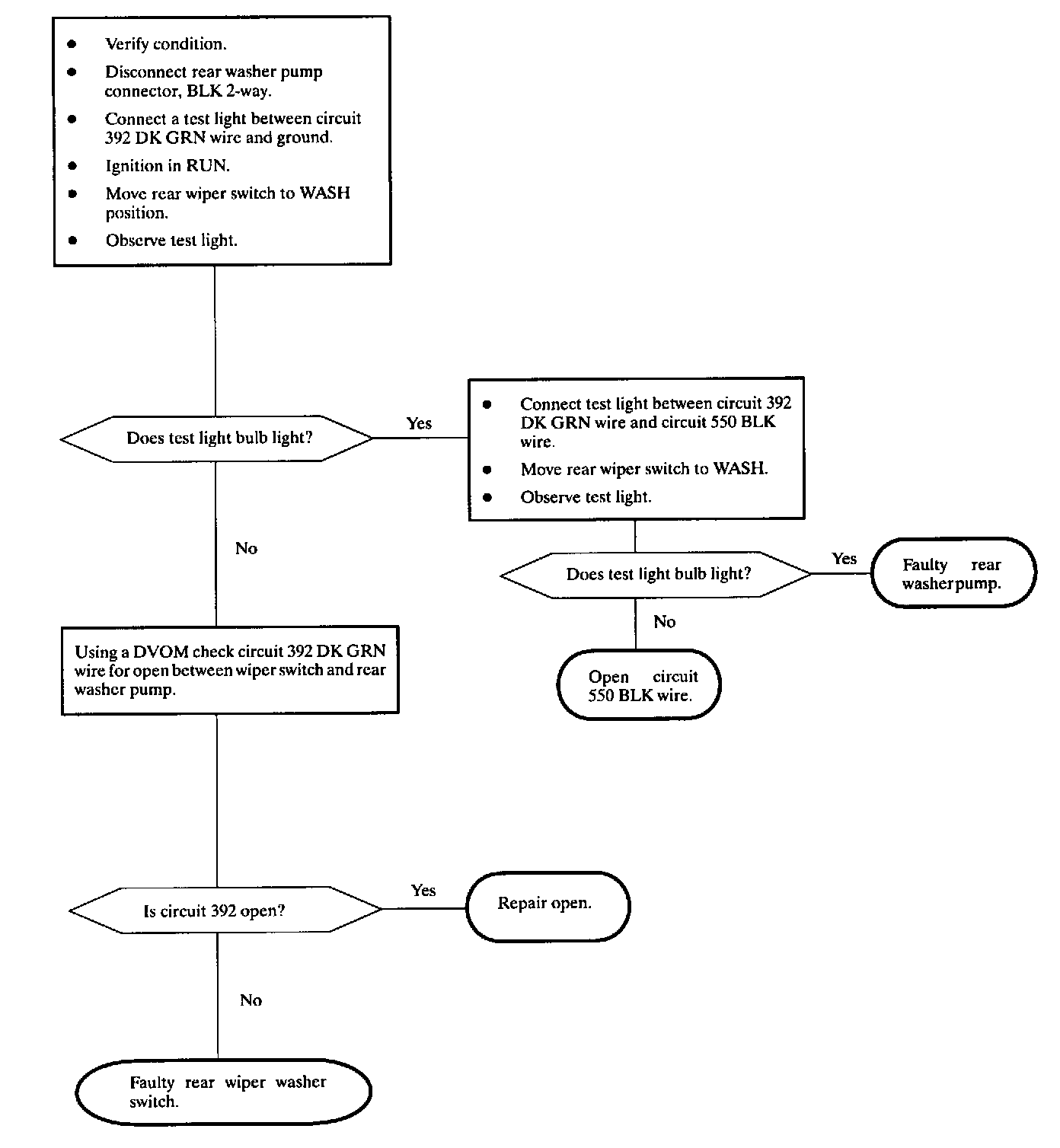

Diagnostic Chart 7:
