Pressure Plate

IMPORTANT: When tightening the clutch housing cover assembly bolts, do not tighten any one bolt more than half a turn at a time or the clutch housing cover assembly may warp.

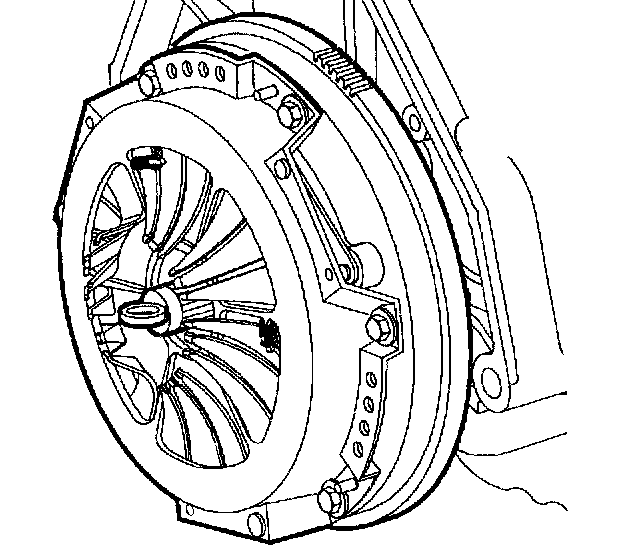

Tighten clutch housing cover assembly bolts using a progressive crisscross pattern to prevent warping of the cover stamping. Torque to 25 Nm (18 ft. lbs.)
