Home >> Saturn >> 2000 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Wheel Speed Sensor >> Diagrams

Wheel Speed Sensor: Diagrams

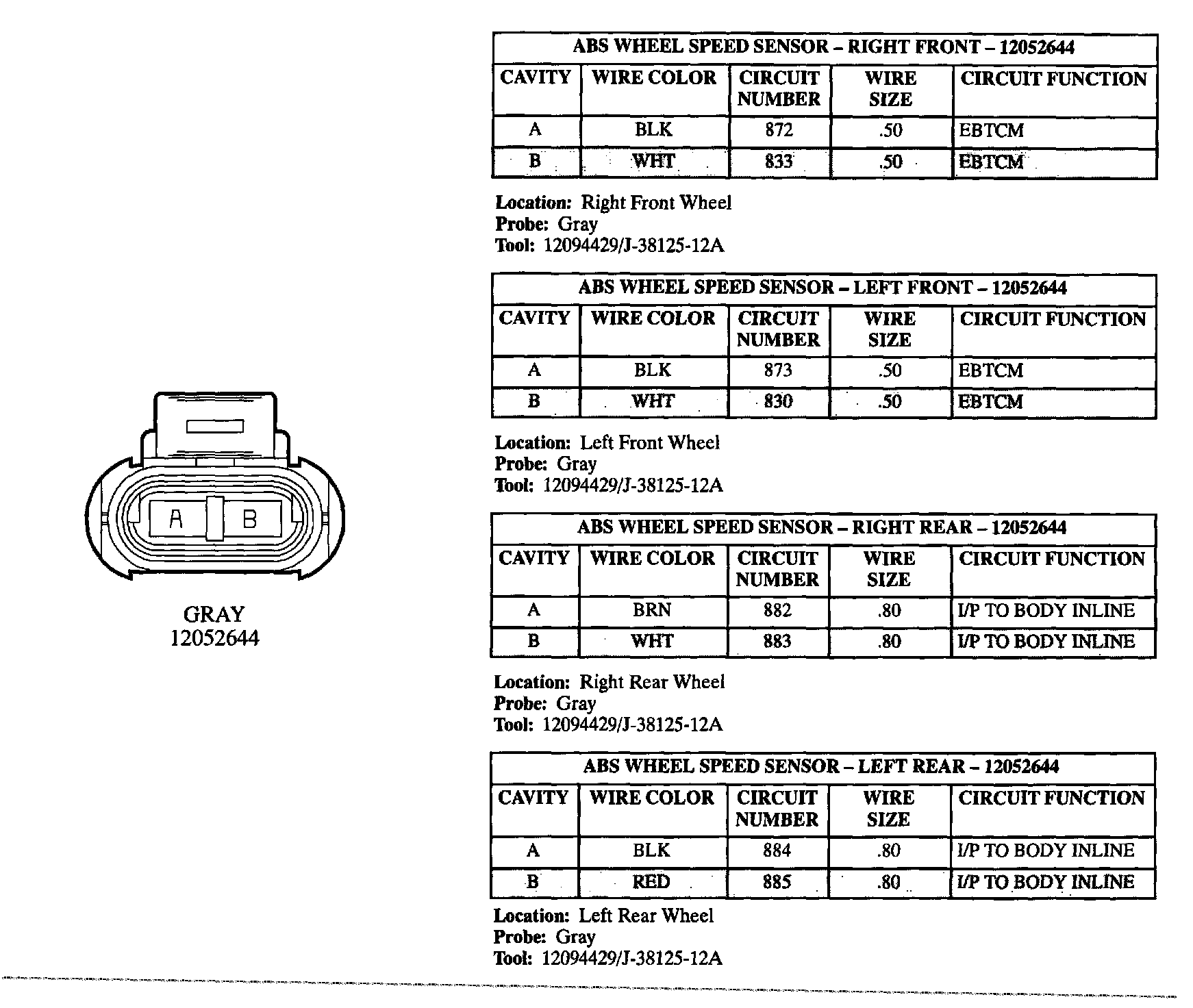

ABS Wheel Speed Sensors:
