Electrical Diagrams

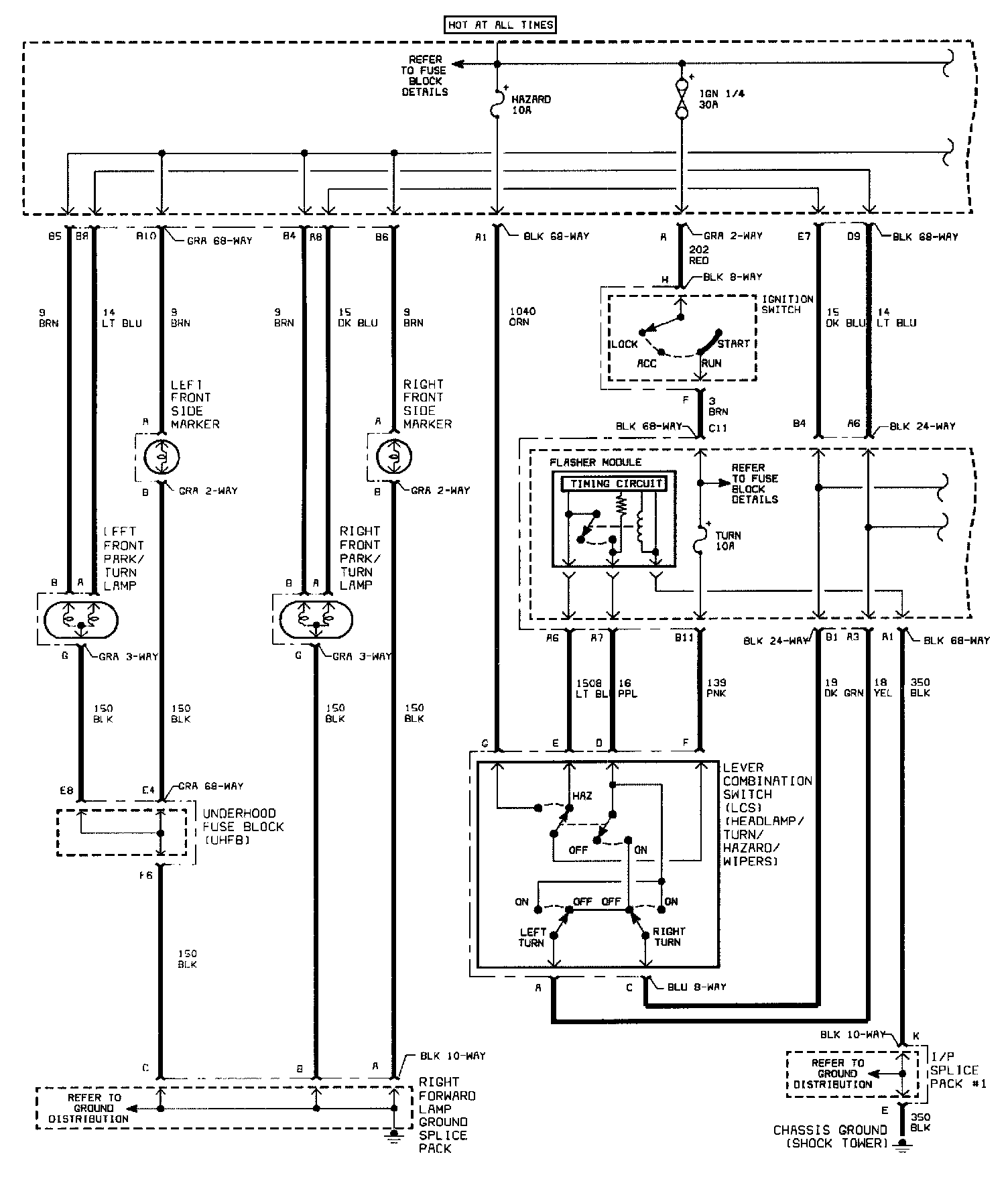

Exterior Lamps Schematics (Part 1 Of 2):

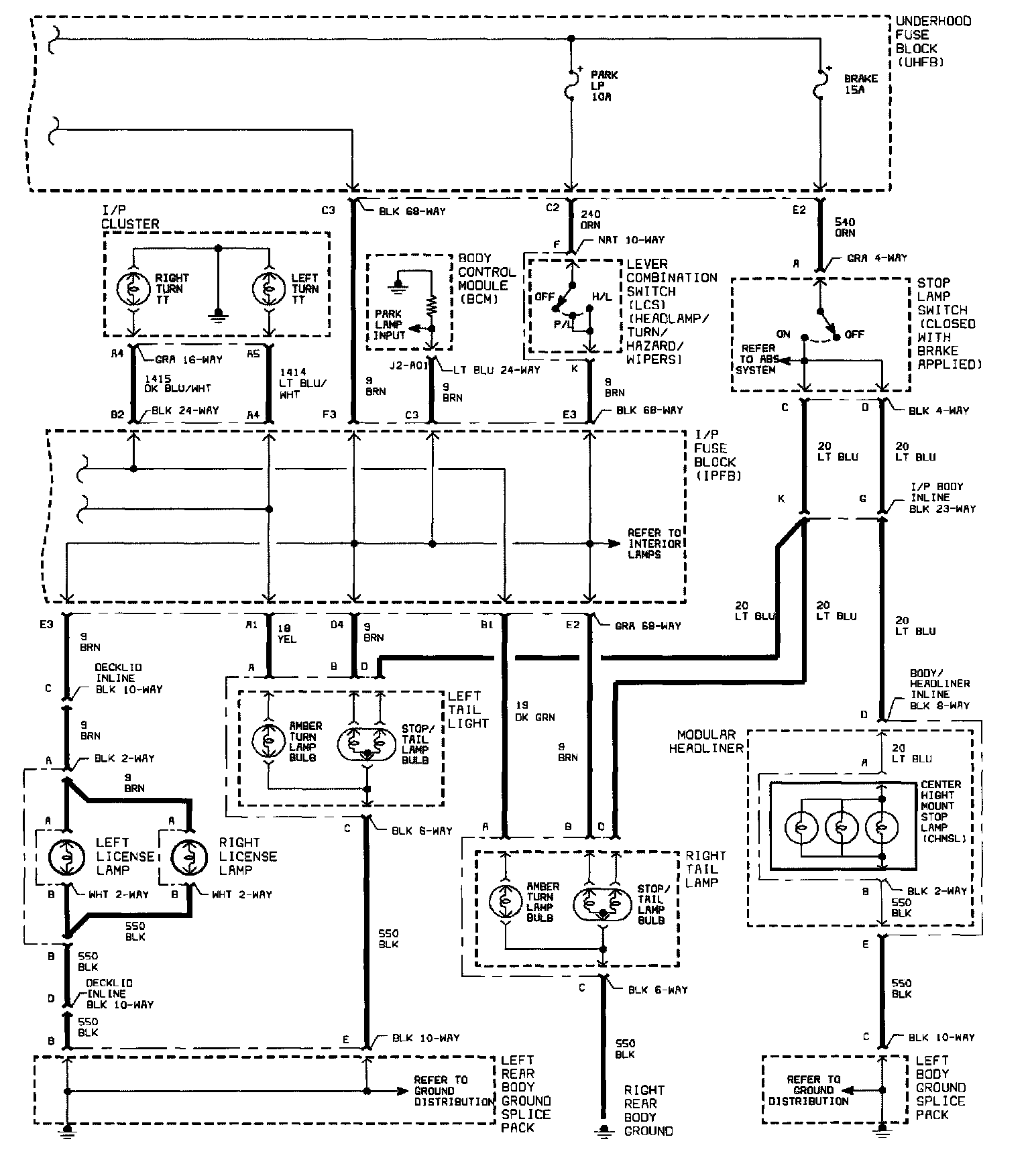

Exterior Lamps Schematics (Part 2 Of 2):
