Chart 21 - RFI Diagnostics

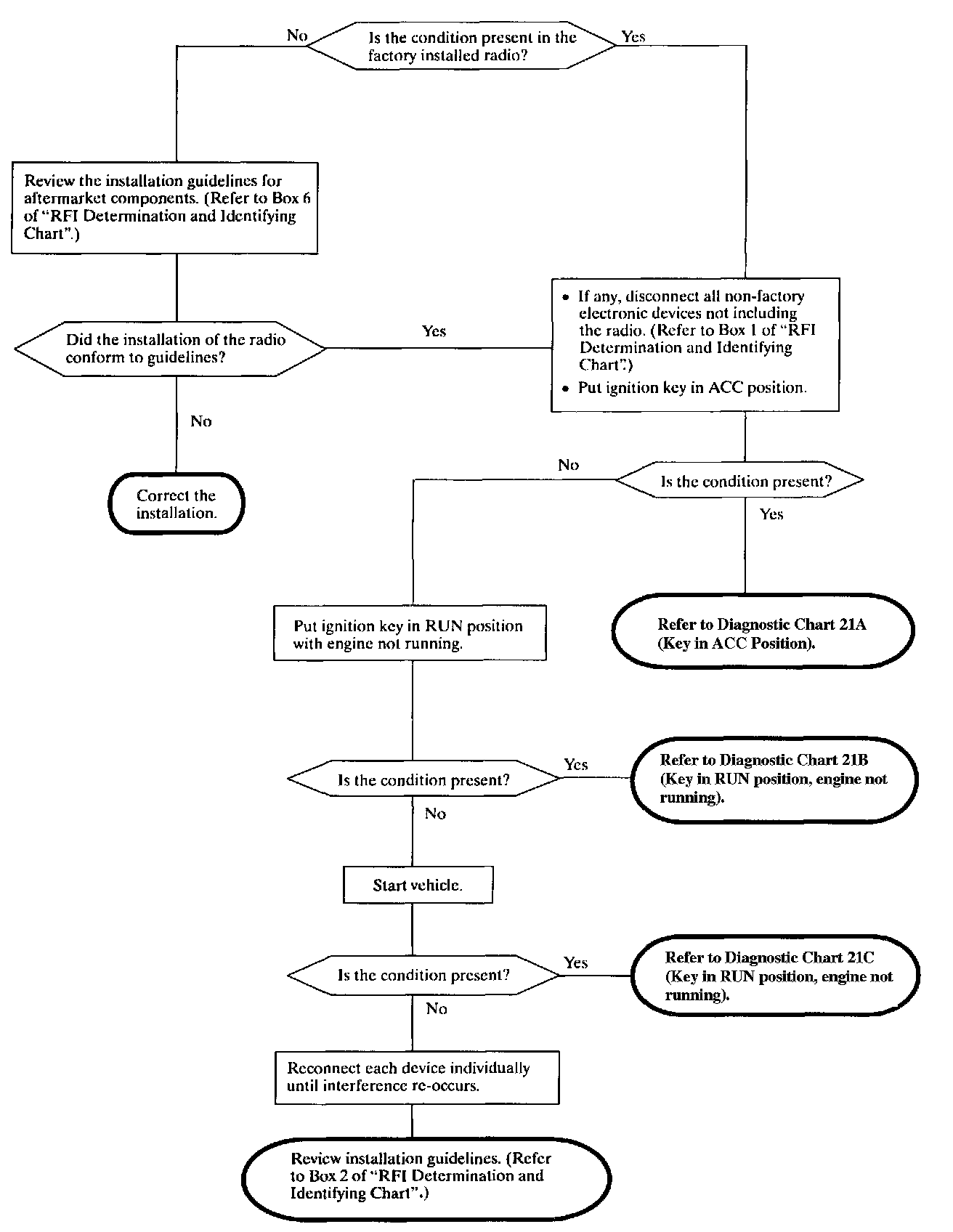

Diagnostic Chart 21:




Purpose: To determine if condition is RFI and to identify source of RFI condition.
