For AM/FM Tape & AM/FM Tape/CD Radios

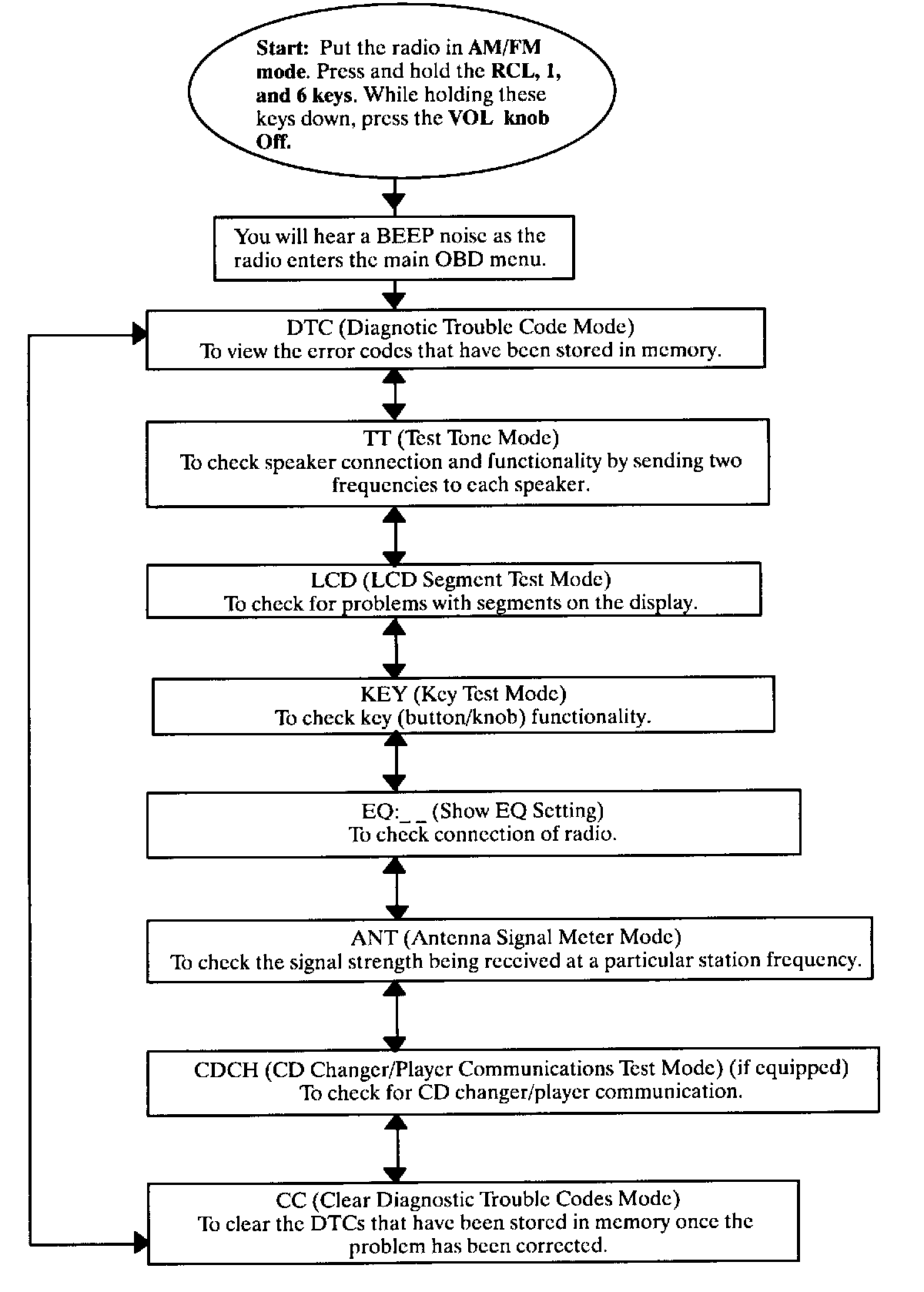

Diagnostic Chart:




Use the SEEK rocker button up and down arrows to advance to the mode you wish to use. Press the RCL button to select a mode from the main OBD menu. Press the AM/FM button to return to the main OBD menu. To exit OBD, press the volume knob Off.
