Engine Coolant Temperature Sensor Diagnostic Trouble Code(S) &/Or The Following Conditions: Hard Start, Erratic Idle, Rough Running, Engine Overheating, Low &/Or Leaking Coolant, &/Or Service Engine Soon Lamp Illuminated (01-T-07)

Publication date: 2001-02-01
Reference number: 01-T-07

ENGINE COOLANT TEMPERATURE SENSOR DIAGNOSTIC TROUBLE CODE(S) &/OR THE FOLLOWING CONDITIONS: HARD START, ERRATIC IDLE, ROUGH RUNNING, ENGINE OVERHEATING, LOW &/OR LEAKING COOLANT, &/OR SERVICE ENGINE SOON LAMP ILLUMINATED

ENGINE COOLANT TEMPERATURE SENSOR DIAGNOSTIC TROUBLE CODE(S) &/OR THE FOLLOWING CONDITIONS: HARD START, ERRATIC IDLE, ROUGH RUNNING, ENGINE OVERHEATING, LOW &/OR LEAKING COOLANT, &/OR SERVICE ENGINE SOON LAMP ILLUMINATED

TECHNICAL SERVICE BULLETIN

Reference Number(s): 01-T-07, Date of Issue:  February, 2001
SATURN: 1991-2001 S-Series Vehicles
SECTION: 03-Engine

DESCRIPTION

Engine Coolant Temperature Sensor Diagnostic Trouble Code(s) &/Or The Following Conditions: Hard Start, Erratic Idle, Rough Running, Engine Overheating, Low &/Or Leaking Coolant, &/Or Service Engine Soon Lamp Illuminated (Replace Engine Coolant Temperature Sensor With New Design Sensor - P/N21025106)

Customers may comment about various driveability and/or operating concerns including: hard start, erratic idle, rough running, engine overheating, low &/or leaking coolant, &/or Service Engine Soon lamp illuminated.

BULLETIN CONTENT

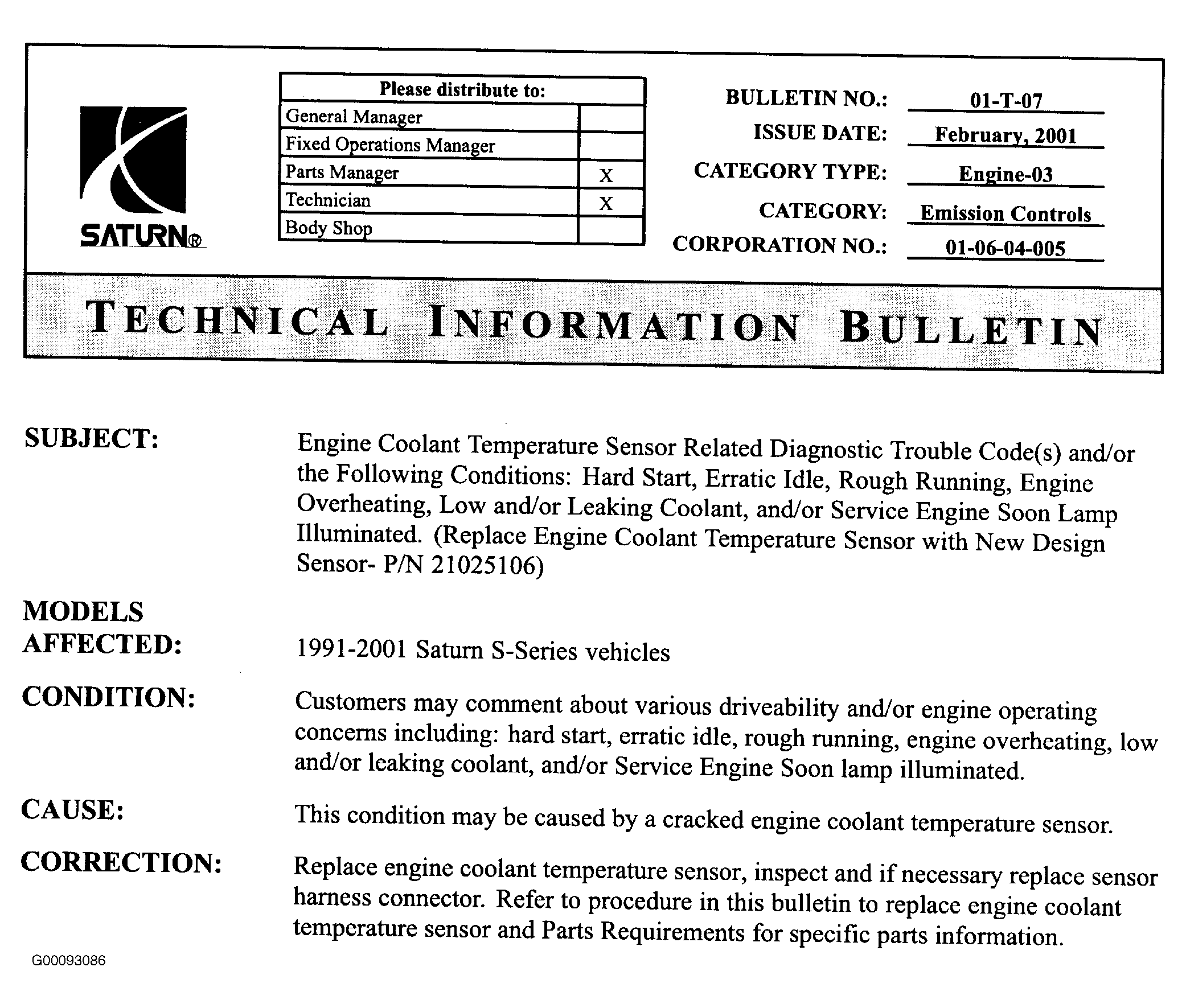

Fig 1: Page 1 of Bulletin
G00093086

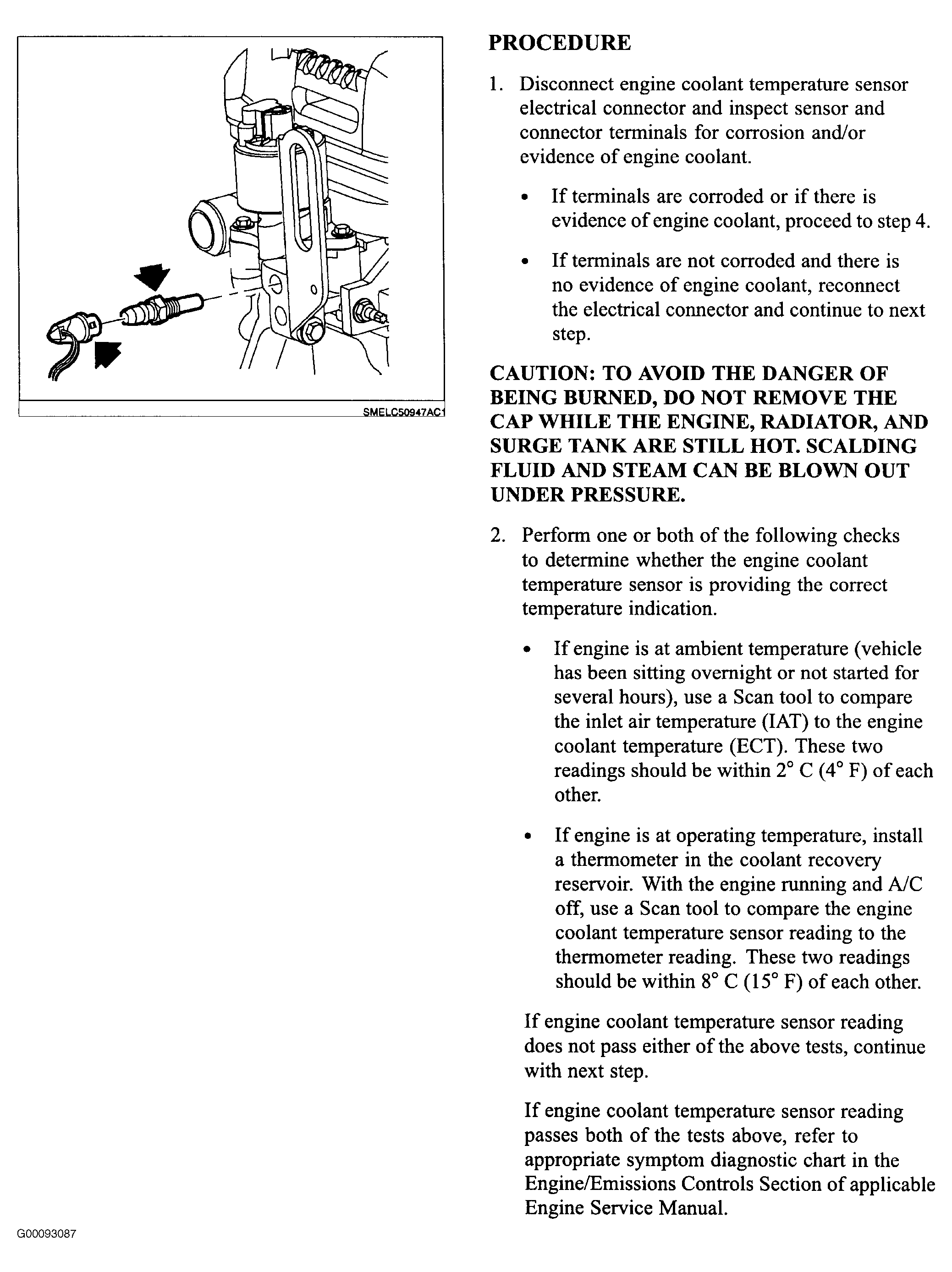

Fig 2: Page 2 of Bulletin
G00093087

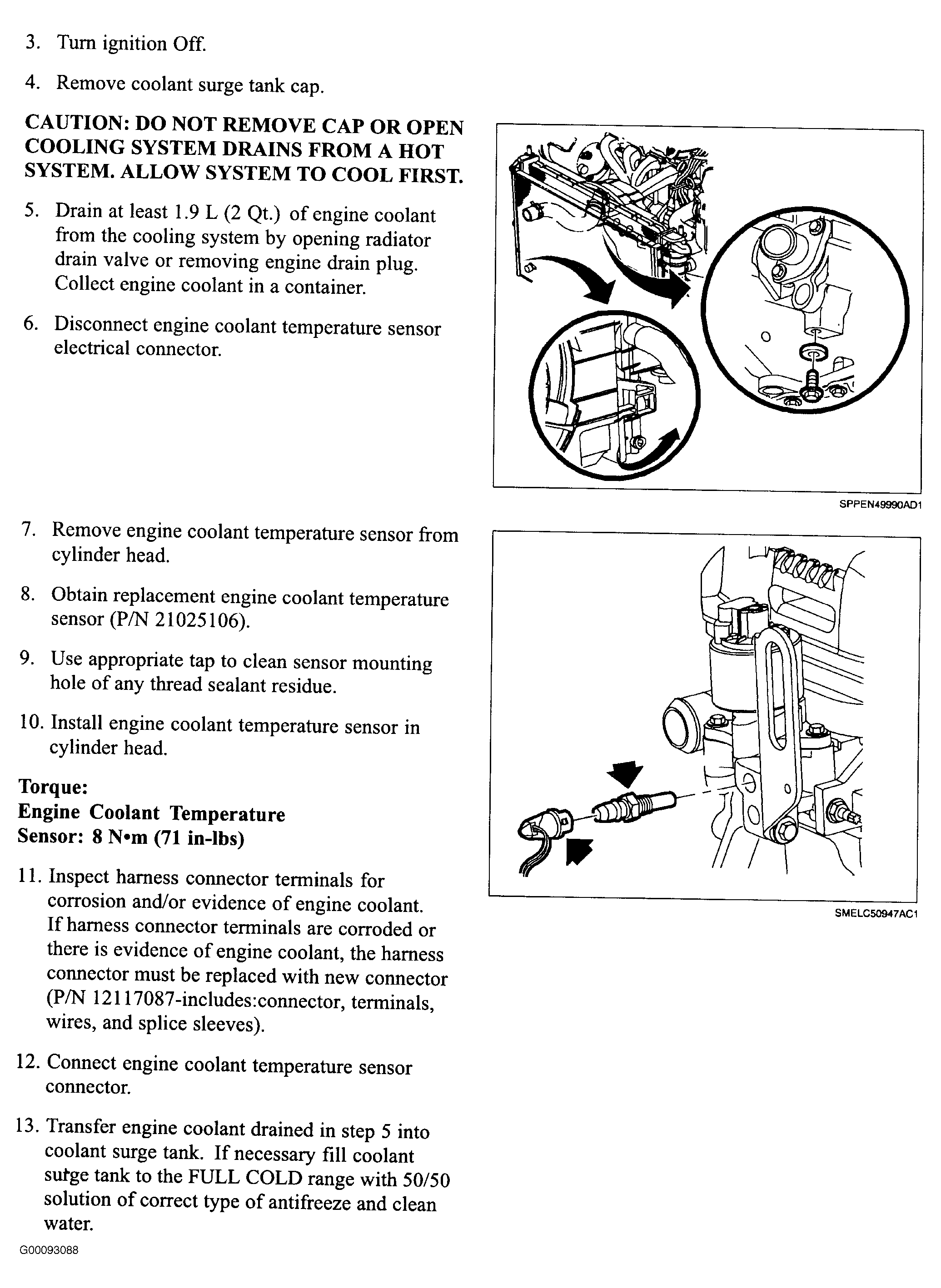

Fig 3: Page 3 of Bulletin
G00093088

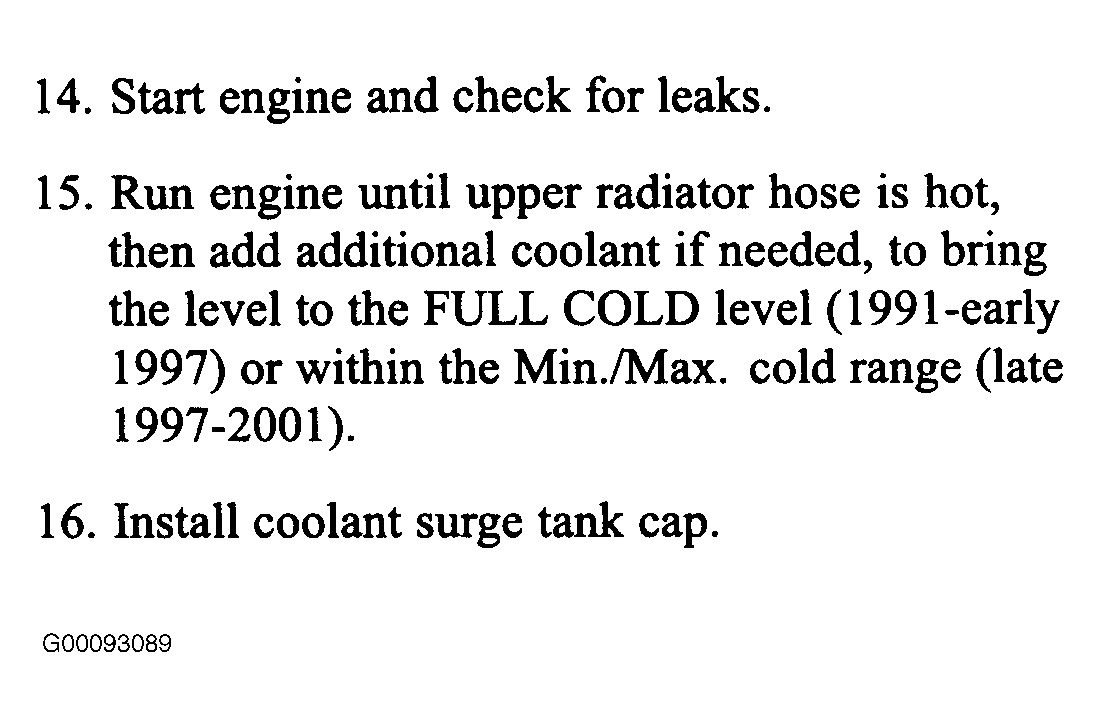

Fig 4: Page 4 of Bulletin
G00093089

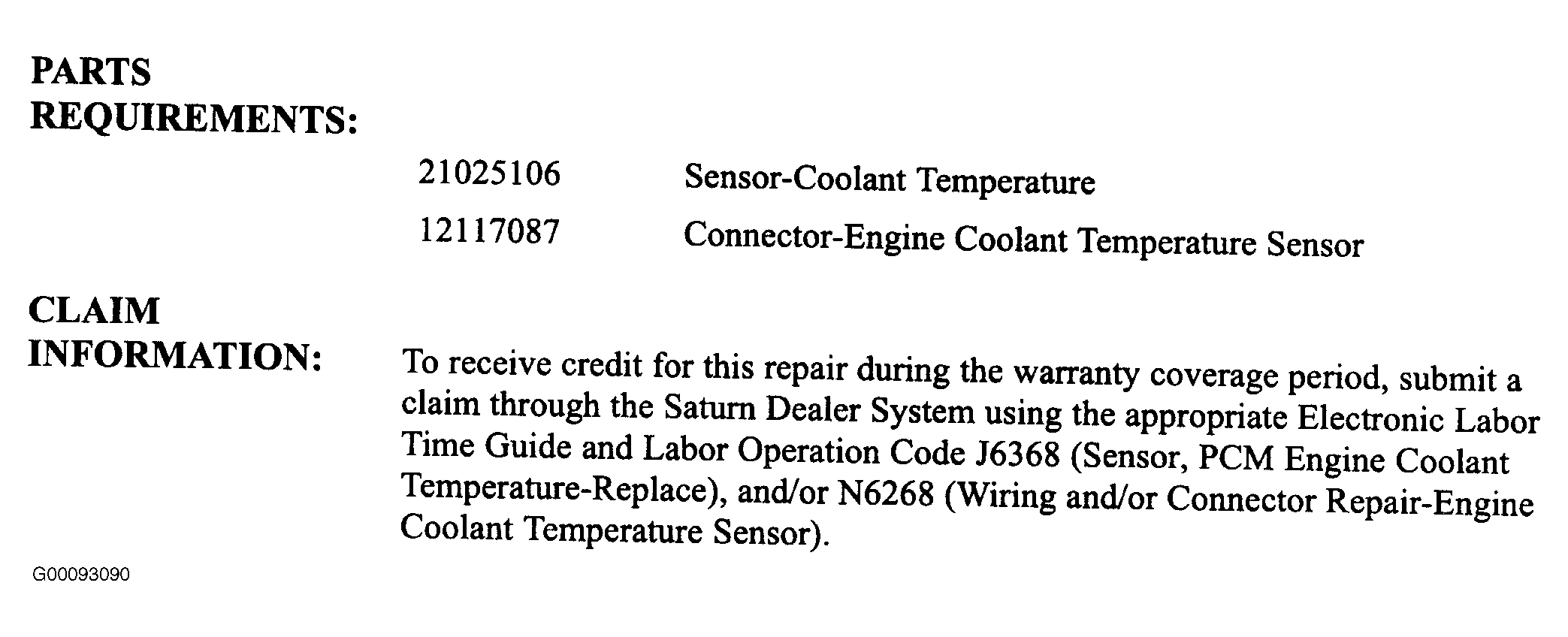

Fig 5: Page 5 of Bulletin
G00093090
