Rattle Noise From Headliner Area (Install Soft Foam Spacers On Headliner) (99-T-69B)

Publication date: 2001-08-01
Reference number: 99-T-69B
Supersedes refnos: 99-T-69A

RATTLE NOISE FROM HEADLINER AREA (INSTALL SOFT FOAM SPACERS ON HEADLINER)

TECHNICAL SERVICE BULLETIN

Reference Number(s): 99-T-69B, Date of Issue: August, 2001

SATURN:	2000-2001 L-Series vehicles
SECTION:	22-Body

Superceded Bulletin(s): 99-T-69A

NOTE: This Bulletin has been revised to include 2002 model year vehicles and supersedes bulletin 99-T-69A, which should be discarded.

NOTE: Refer to Technical Bulletin 00-T-17B for information regarding sagging headliners on sedans equipped with power sunroofs (RPO CF5).

Rattle Noise From Headliner Area (Install Soft Foam Spacers On Headliner)

Some customers may comment about rattle noises heard in area of dome lamp, sunroof, or headliner during normal operating conditions.

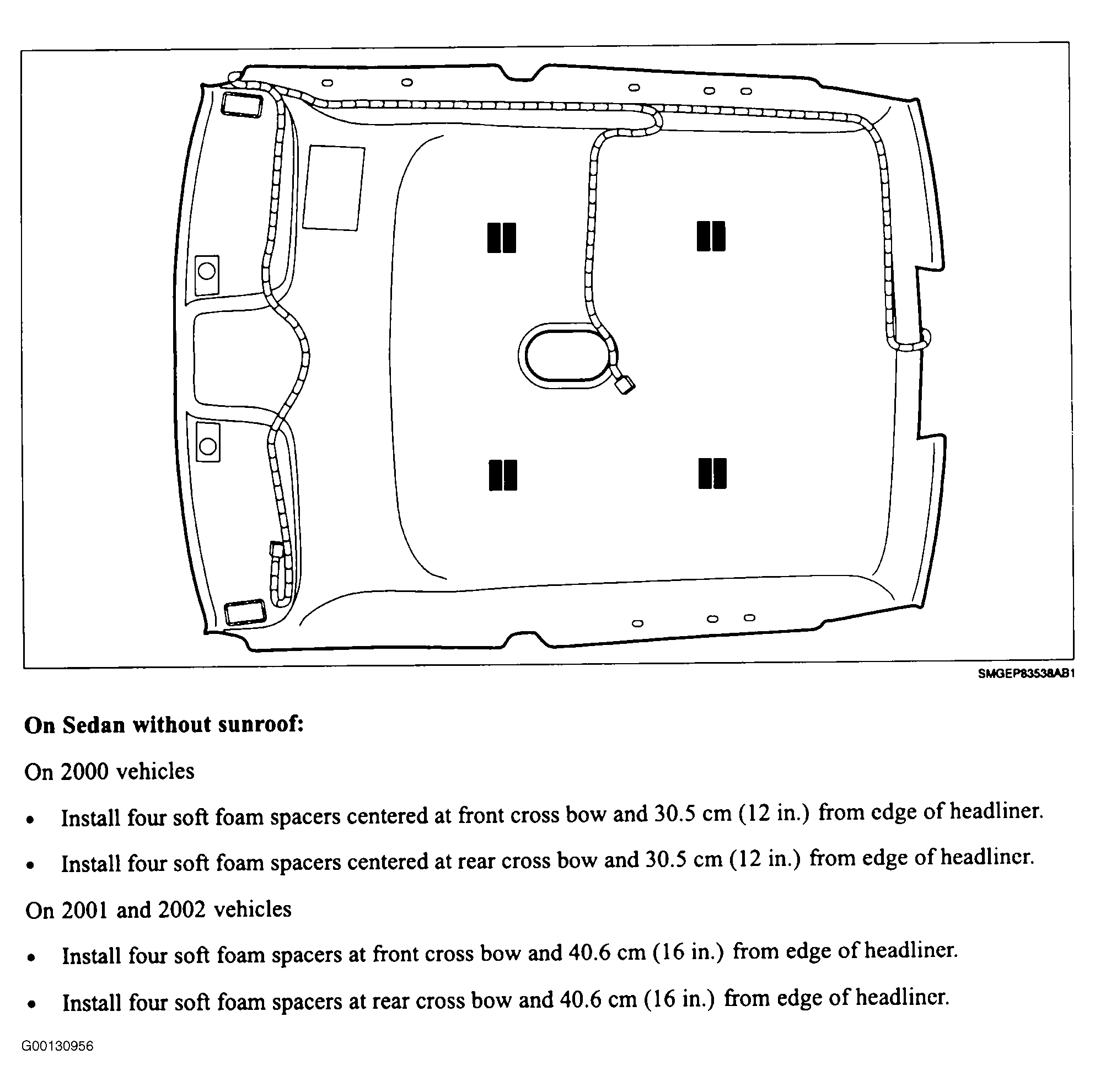

Fig 1: Page 1 of Bulletin

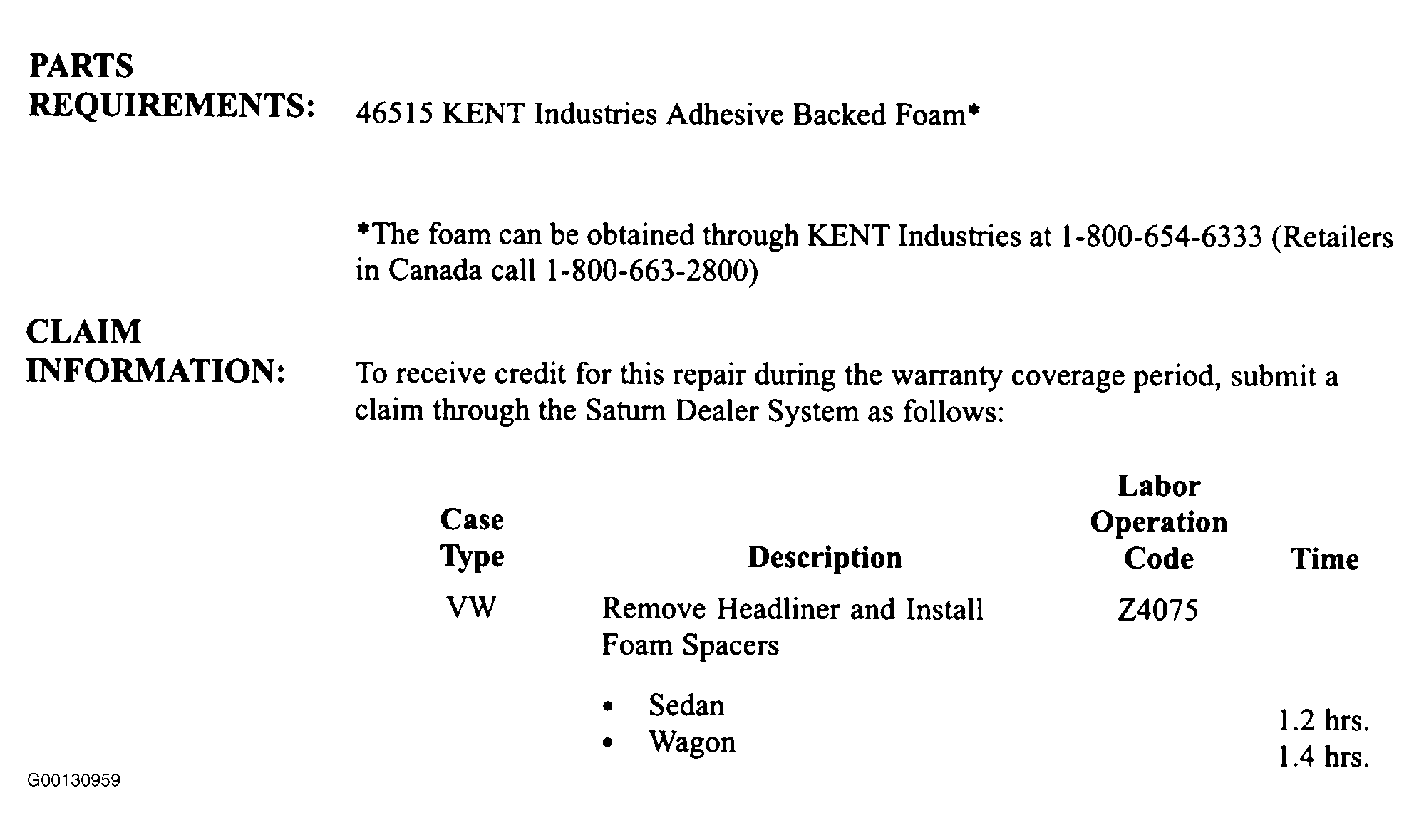

Fig 2: Page 2 of Bulletin

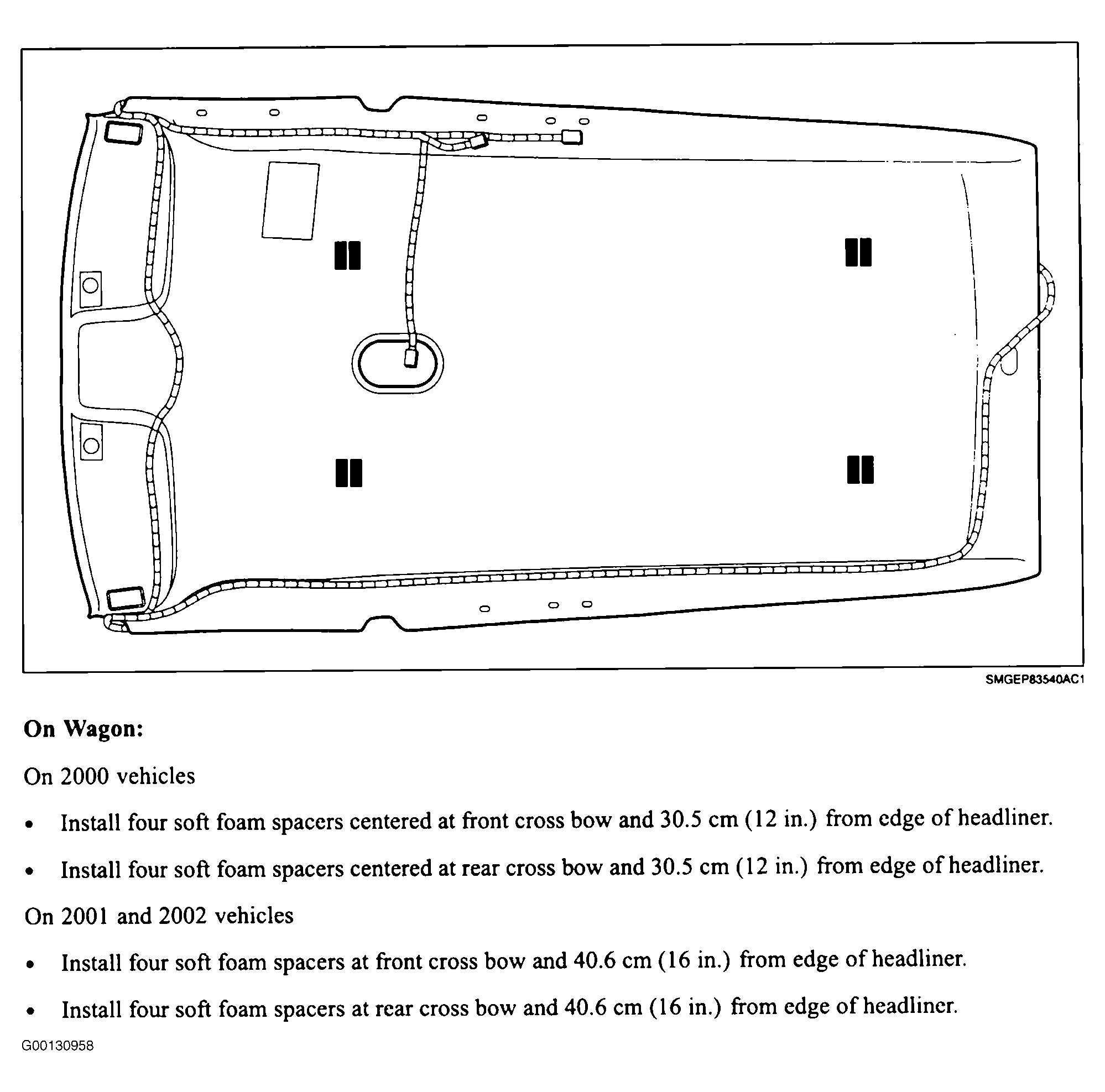

Fig 3: Page 3 of Bulletin

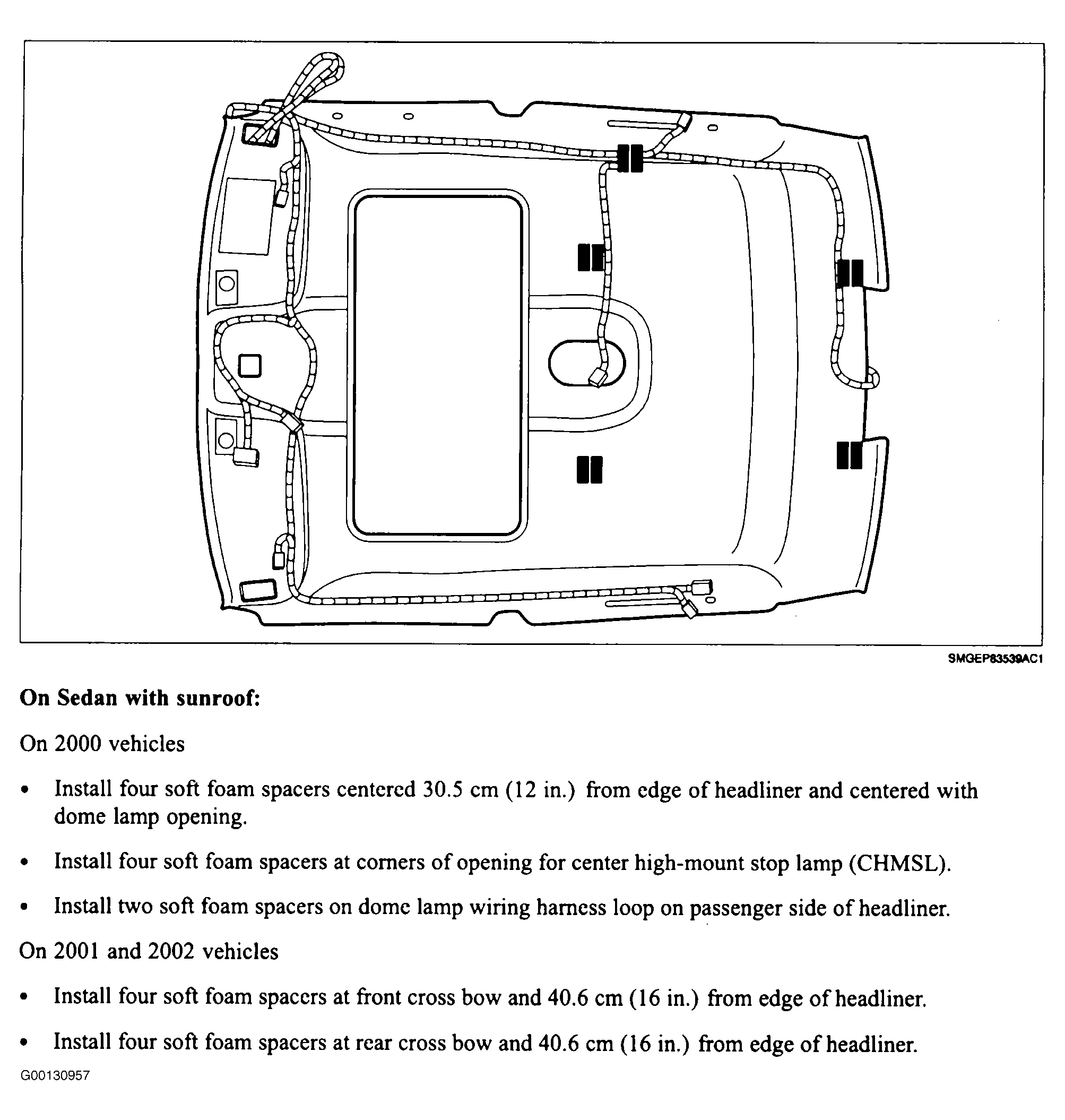

Fig 4: Page 4 of Bulletin

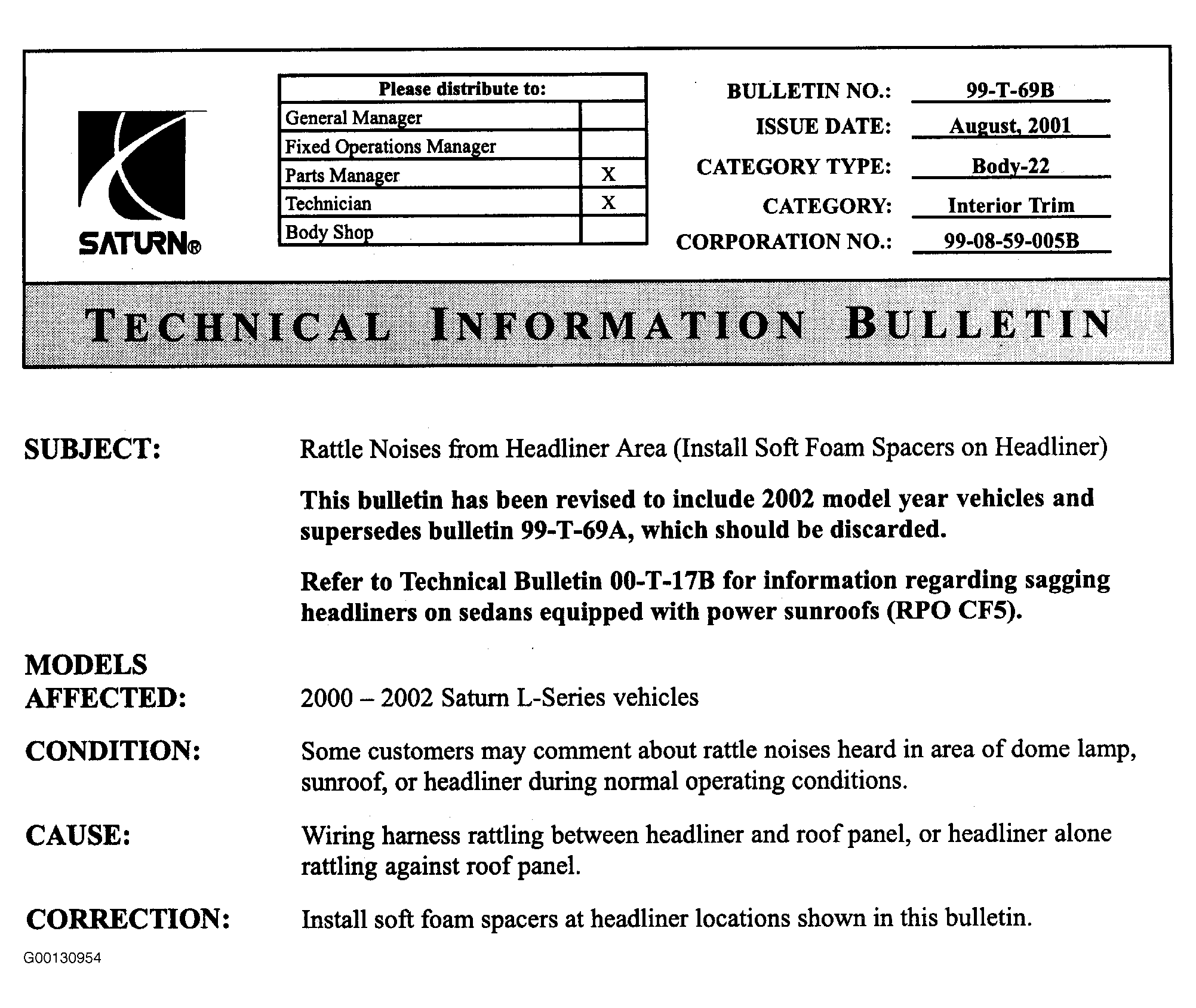

Fig 5: Page 5 of Bulletin

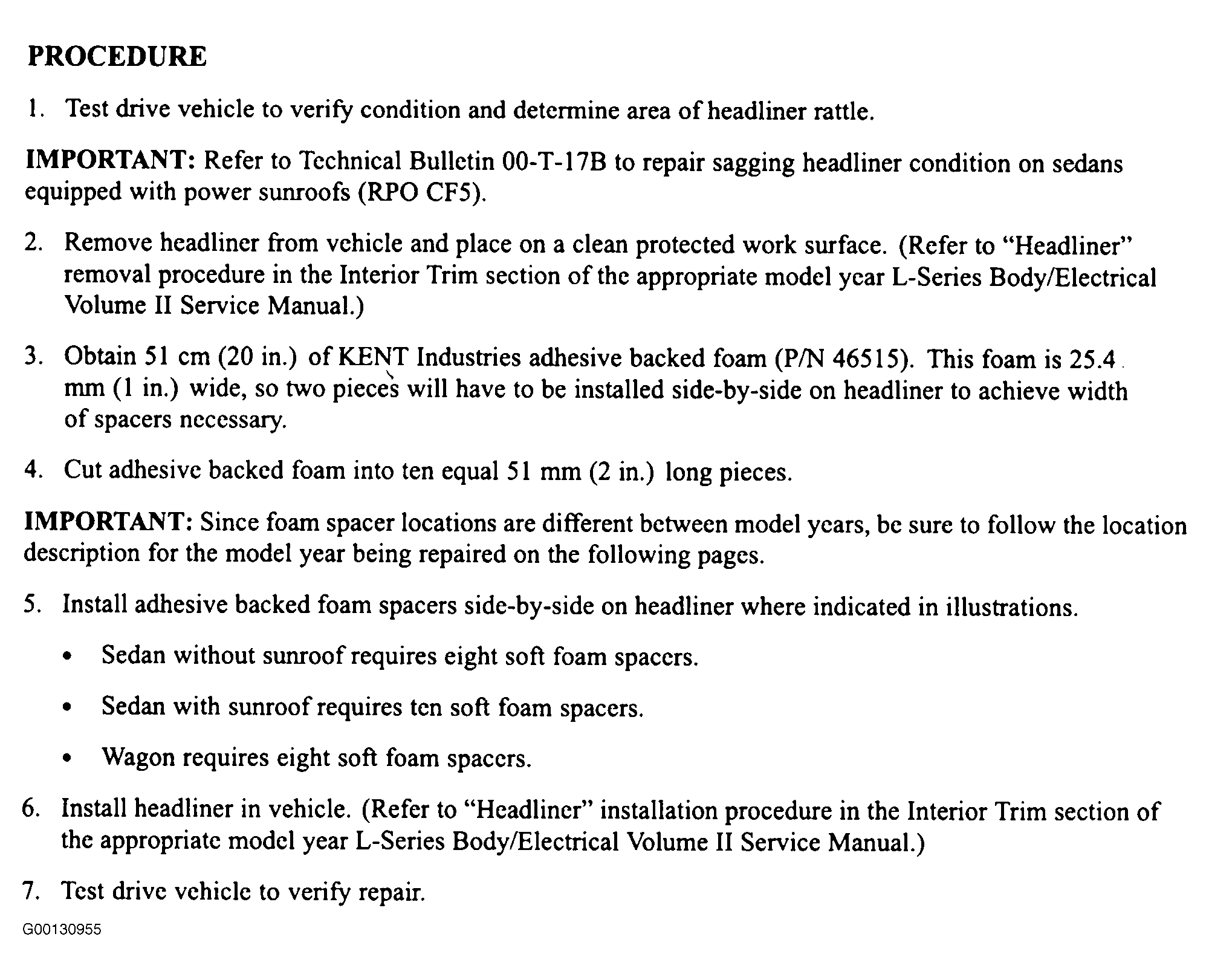

Fig 6: Page 6 of Bulletin
